EBC BRAKE DISK 760.35.66

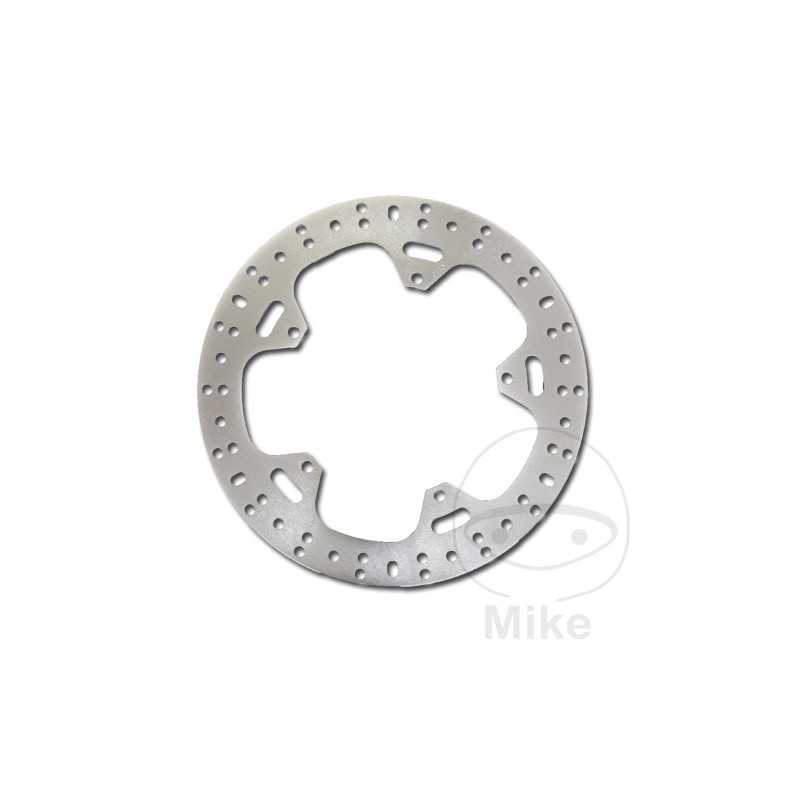

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 155.2MM
CIRCLE SIZE: 170 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.7 MM
THICKNESS: 4.2MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D71 Bastidores: RE061 henceforth00159-- 2008
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D72 Bastidores: RE061 henceforth18938-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D74 Bastidores: RE061 henceforth24211-- 2010
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D75 Bastidores: RE061 henceforth23027-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D77 Bastidores: RE061 henceforth40001-- 2011
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D79 Bastidores: RE061 henceforth48001-- 2012
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D7F Bastidores: RE061 henceforth57001-- 2013
Yamaha YZF-R 125 Anniversary 15 CV, 11 kw 1cil. RE061 5D7B Bastidores: RE061 henceforth54001-- 2012-2013
