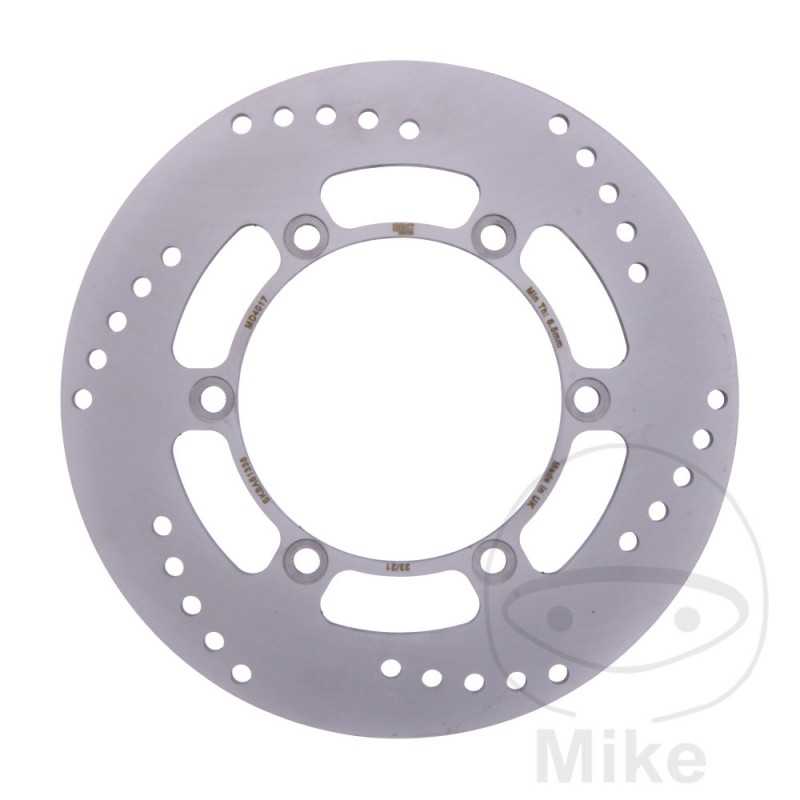

EBC BRAKE DISK 760.23.11

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 7MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 1100 A Uni Trak 120/100/98 CV, 88/74/72 kw 4cil. ZXT10A 1 Bastidores: ZXT10A henceforth00001-ZXT10A henceforth10800 1983
Kawasaki GPZ 1100 A Uni Trak 120/100/98 CV, 88/74/72 kw 4cil. ZXT10A 2 Bastidores: ZXT10A henceforth10801-ZXT10A henceforth15900 1984
Kawasaki GPZ 1100 A Uni Trak 120/100/98 CV, 88/74/72 kw 4cil. ZXT10A 3 Bastidores: ZXT10A henceforth15901-- 1985
Kawasaki GPZ 750 R Ninja 92 CV, 68 kw 4cil. ZX750G G2 Bastidores: ZX750G henceforth00001-- 1985
Kawasaki GPZ 900 R Ninja anti dive 116/100 CV, 85/74 kw 4cil. ZX900A A1 Bastidores: ZX900A henceforth00001-ZX900A henceforth15000 1984
Kawasaki GPZ 900 R Ninja anti dive 116/100 CV, 85/74 kw 4cil. ZX900A A2 Bastidores: ZX900A henceforth15001-ZX900A henceforth31000 1985
Kawasaki GPZ 900 R Ninja anti dive 116/100 CV, 85/74 kw 4cil. ZX900A A3 Bastidores: ZX900A henceforth31001-ZX900A henceforth35100 1986
Kawasaki GPZ 900 R Ninja anti dive 116/100 CV, 85/74 kw 4cil. ZX900A A4 Bastidores: ZX900A henceforth35101-ZX900A henceforth38500 1987
Kawasaki GPZ 900 R Ninja anti dive 116/100 CV, 85/74 kw 4cil. ZX900A A5 Bastidores: ZX900A henceforth38501-ZX900A henceforth42000 1988
Kawasaki GPZ 900 R Ninja anti dive 116/100 CV, 85/74 kw 4cil. ZX900A A6 Bastidores: ZX900A henceforth42001-ZX900A henceforth48000 1989
Kawasaki ZL 1000 A Eliminator 100 CV, 74 kw 4cil. ZLT00A 1 Bastidores: ZLT00A henceforth00001-ZLT00A henceforth14000 1987
Kawasaki ZL 1000 A Eliminator 100 CV, 74 kw 4cil. ZLT00A 2 Bastidores: ZLT00A henceforth01401-ZLT00A-999999 1988
Kawasaki ZL 900 A Eliminator 105 CV, 77 kw 4cil. - 1 Bastidores: --- 1985
Kawasaki ZL 900 A Eliminator 105 CV, 77 kw 4cil. - 2 Bastidores: --- 1986
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750E 1 Bastidores: ZX750E henceforth00001-ZX750E henceforth05500 1984
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750E 2 Bastidores: ZX750E henceforth05501-- 1985
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750EE 1 Bastidores: ZX750EE henceforth00001-ZX750EE henceforth06500 1984
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750EE 2 Bastidores: ZX750EE henceforth06501-- 1985
