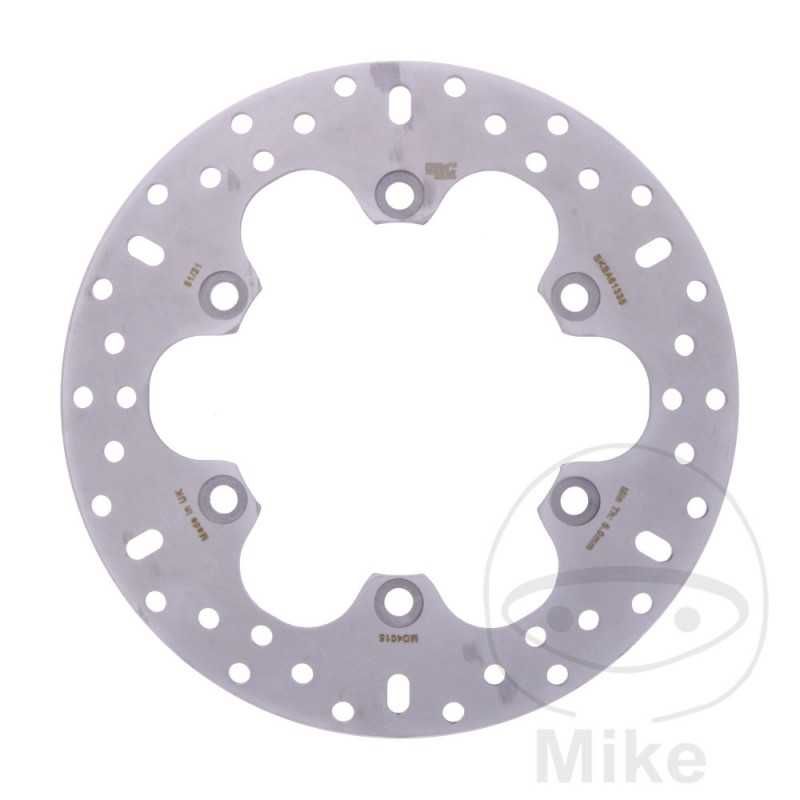

EBC BRAKE DISK 760.22.87

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 600 R Ninja 75/50 CV, 55/37 kw 4cil. ZX600A A1 Bastidores: ZX600A henceforth00001-- 1985-1986
Kawasaki GPZ 600 R Ninja 75/50 CV, 55/37 kw 4cil. ZX600A A3 Bastidores: ZX600A henceforth46001-ZX600A henceforth54000 1987
Kawasaki GPZ 600 R Ninja 75/50 CV, 55/37 kw 4cil. ZX600A A4 Bastidores: ZX600A henceforth54001-ZX600A henceforth55800 1988
Kawasaki GPZ 600 R Ninja 81,6/50 CV, 60/37 kw 4cil. ZX600A A5 Bastidores: ZX600A henceforth55801-ZX600A-999999 1989-1990
Kawasaki GPZ 900 R Ninja 116/100 CV, 85/74 kw 4cil. ZX900A A10 Bastidores: ZX900A henceforth68001-ZX900A-999999 1993-1994
Kawasaki GPZ 900 R Ninja 116/100 CV, 85/74 kw 4cil. ZX900A A7 Bastidores: ZX900A henceforth48001-ZX900A henceforth56000 1990
Kawasaki GPZ 900 R Ninja 116/100 CV, 85/74 kw 4cil. ZX900A A8 Bastidores: ZX900A henceforth56001-ZX900A henceforth68000 1991-1992
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 1 Bastidores: ZXT00B henceforth00001-ZXT00B henceforth12000 1988
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 1 Bastidores: ZXT00B henceforth12452-ZXT00B henceforth17000 1988
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 2 Bastidores: ZXT00B henceforth12001-ZXT00B henceforth12451 1989
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 2 Bastidores: ZXT00B henceforth17001-ZXT00B henceforth28000 1989
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 3 Bastidores: ZXT00B henceforth28001-ZXT00B-999999 1990
Kawasaki ZZR 1100 C 100 CV, 74 kw 4cil. ZXT10C 1 Bastidores: ZXT10C henceforth00001-ZXT10C henceforth13000 1990
Kawasaki ZZR 1100 C 100 CV, 74 kw 4cil. ZXT10C 2 Bastidores: ZXT10C henceforth13001-ZXT10C henceforth24000 1991
Kawasaki ZZR 1100 C 100 CV, 74 kw 4cil. ZXT10C 2A Bastidores: ZXT10C-600001-ZXT10C-999999 1991
Kawasaki ZZR 1100 C 100 CV, 74 kw 4cil. ZXT10C 3 Bastidores: ZXT10C henceforth24001-ZXT10C-999999 1992
