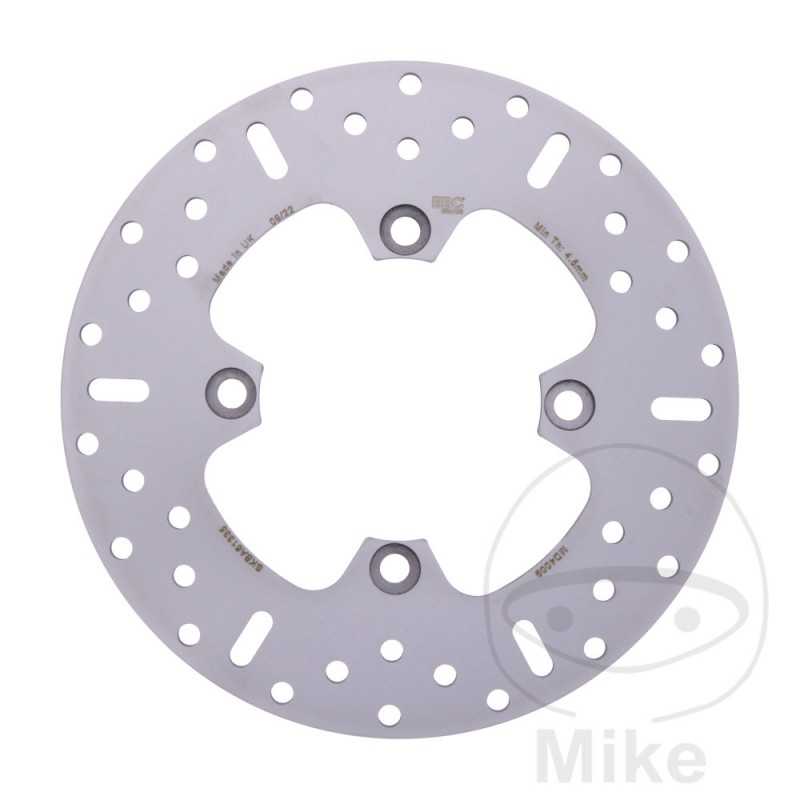

EBC BRAKE DISK 760.22.04

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZR 550 B Zephyr 50/27 CV, 37/20 kw 4cil. ZR550B 2 Bastidores: ZR550B henceforth04001-ZR550B henceforth12000 1991
Kawasaki ZR 550 B Zephyr 50/27 CV, 37/20 kw 4cil. ZR550B 3 Bastidores: ZR550B henceforth12001-ZR550B henceforth22000 1992
Kawasaki ZR 550 B Zephyr 50/27 CV, 37/20 kw 4cil. ZR550B 4 Bastidores: ZR550B henceforth22001-ZR550B henceforth30000 1993
Kawasaki ZR 550 B Zephyr 50/34 CV, 37/25 kw 4cil. ZR550B 5 Bastidores: ZR550B henceforth30001-ZR550B henceforth36000 1994
Kawasaki ZR 550 B Zephyr 50/34 CV, 37/25 kw 4cil. ZR550B 6 Bastidores: ZR550B henceforth36001-ZR550B-999999 1995
Kawasaki ZR 550 B Zephyr 50/34 CV, 37/25 kw 4cil. ZR550B 7 Bastidores: ZR550B henceforth41001-ZR550B henceforth45000 1996
Kawasaki ZR 550 B Zephyr 50/34 CV, 37/25 kw 4cil. ZR550B 8 Bastidores: ZR550B henceforth45001-ZR550B henceforth50000 1997
Kawasaki ZR 550 B Zephyr 50/34 CV, 37/25 kw 4cil. ZR550B 9 Bastidores: ZR550B henceforth50001-ZR550B-999999 1998-1999
Kawasaki ZXR 400 H 62 CV, 45,6 kw 4cil. ZX400H 1 Bastidores: ZX400H henceforth00001-- 1989
Kawasaki ZXR 400 H 62 CV, 45,6 kw 4cil. ZX400H 2 Bastidores: ZX400H henceforth06001-ZX400H-999999 1990
Kawasaki ZXR 400 L 65/26 CV, 48/19 kw 4cil. ZX400L 1 Bastidores: ZX400L henceforth00001-ZX400L henceforth09000 1991
Kawasaki ZXR 400 L 65/26 CV, 48/19 kw 4cil. ZX400L 2 Bastidores: ZX400L henceforth09001-ZX400L henceforth20000 1992
Kawasaki ZXR 400 L 65/26 CV, 48/19 kw 4cil. ZX400L 3 Bastidores: ZX400L henceforth20001-ZX400L henceforth40000 1993
Kawasaki ZXR 400 L 65/34/26 CV, 48/25/19 kw 4cil. ZX400L 4 Bastidores: ZX400L henceforth40001-ZX400L henceforth45000 1994
Kawasaki ZXR 400 L 65/34/26 CV, 48/25/19 kw 4cil. ZX400L 5 Bastidores: ZX400L henceforth45001-ZX400L henceforth52000 1995-1996
Kawasaki ZXR 400 L 65/34/26 CV, 48/25/19 kw 4cil. ZX400L 7 Bastidores: ZX400L henceforth52001-ZX400L henceforth55000 1997
Kawasaki ZXR 400 L 65/34/26 CV, 48/25/19 kw 4cil. ZX400L 8 Bastidores: ZX400L henceforth55001-ZX400L-999999 1998
Kawasaki ZXR 400 L 65/34/26 CV, 48/25/19 kw 4cil. ZX400LLA 9 Bastidores: ZX400LLA henceforth60001-ZX400LLA-999999 1999
Kawasaki ZZR 400 N1 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N henceforth00001-ZX400N henceforth06000 1993
Kawasaki ZZR 400 N2 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N henceforth06001-ZX400N henceforth11000 1994
Kawasaki ZZR 400 N3 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N henceforth11001-ZX400N henceforth15000 1995
Kawasaki ZZR 400 N4 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N henceforth15001-- 1996
Kawasaki ZZR 400 N5 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N henceforth19001-ZX400N henceforth24000 1997
Kawasaki ZZR 400 N6 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N henceforth24001-ZX400N henceforth29000 1998
Kawasaki ZZR 400 N7 53 CV, 39 kw 4cil. ZX400N Bastidores: ZX400N-29001-- 1999
Kawasaki ZZR 600 E 100/50/27 CV, 74/37/20 kw 4cil. ZX600E 1 Bastidores: ZX600E henceforth00001-ZX600E henceforth20000 1993
Kawasaki ZZR 600 E 100/50/34 CV, 74/37/25 kw 4cil. ZX600E 2 Bastidores: ZX600E henceforth20001-ZX600E henceforth32000 1994
Kawasaki ZZR 600 E 100/98/50/34 CV, 74/72/37/25 kw 4cil. ZX600E 3 Bastidores: ZX600E henceforth32001-ZX600E henceforth38000 1995
Kawasaki ZZR 600 E 34 CV, 25 kw 4cil. ZX600EEA 11 Bastidores: ZX600EEA henceforth76001-ZX600EEA henceforth79000 2003
Kawasaki ZZR 600 E 34 CV, 25 kw 4cil. ZX600EEA 12H Bastidores: ZX600EEA henceforth79001-ZX600EEA henceforth81000 2004
Kawasaki ZZR 600 E 34 CV, 25 kw 4cil. ZX600EEA 13H Bastidores: ZX600EEA henceforth81001-ZX600EEA henceforth83000 2005
Kawasaki ZZR 600 E 34 CV, 25 kw 4cil. ZX600EEA 6F Bastidores: ZX600EEA henceforth83001-ZX600EEA-999999 2006
Kawasaki ZZR 600 E 98 CV, 72 kw 4cil. ZX600EEA 11 Bastidores: ZX600EEA henceforth76001-ZX600EEA henceforth79000 2003
Kawasaki ZZR 600 E 98 CV, 72 kw 4cil. ZX600EEA 12H Bastidores: ZX600EEA henceforth79001-ZX600EEA henceforth81000 2004
Kawasaki ZZR 600 E 98 CV, 72 kw 4cil. ZX600EEA 13H Bastidores: ZX600EEA henceforth81001-ZX600EEA henceforth83000 2005
Kawasaki ZZR 600 E 98 CV, 72 kw 4cil. ZX600EEA 6F Bastidores: ZX600EEA henceforth83001-ZX600EEA-999999 2006
Kawasaki ZZR 600 E 98/50/34 CV, 72/37/25 kw 4cil. ZX600E 4 Bastidores: ZX600E henceforth38001-ZX600E henceforth45000 1996
Kawasaki ZZR 600 E 98/50/34 CV, 72/37/25 kw 4cil. ZX600E 5 Bastidores: ZX600E henceforth45001-ZX600E henceforth50000 1997
Kawasaki ZZR 600 E 98/50/34 CV, 72/37/25 kw 4cil. ZX600E 6 Bastidores: ZX600E henceforth50001-ZX600E henceforth57000 1998
Kawasaki ZZR 600 E 98/50/34 CV, 72/37/25 kw 4cil. ZX600EEA 10 Bastidores: ZX600EEA henceforth72001-ZX600EEA henceforth76000 2002
Kawasaki ZZR 600 E 98/50/34 CV, 72/37/25 kw 4cil. ZX600EEA 7 Bastidores: ZX600EEA henceforth57001-ZX600EEA henceforth68000 1999-2000
Kawasaki ZZR 600 E 98/50/34 CV, 72/37/25 kw 4cil. ZX600EEA 9 Bastidores: ZX600EEA henceforth68001-ZX600EEA henceforth72000 2001
