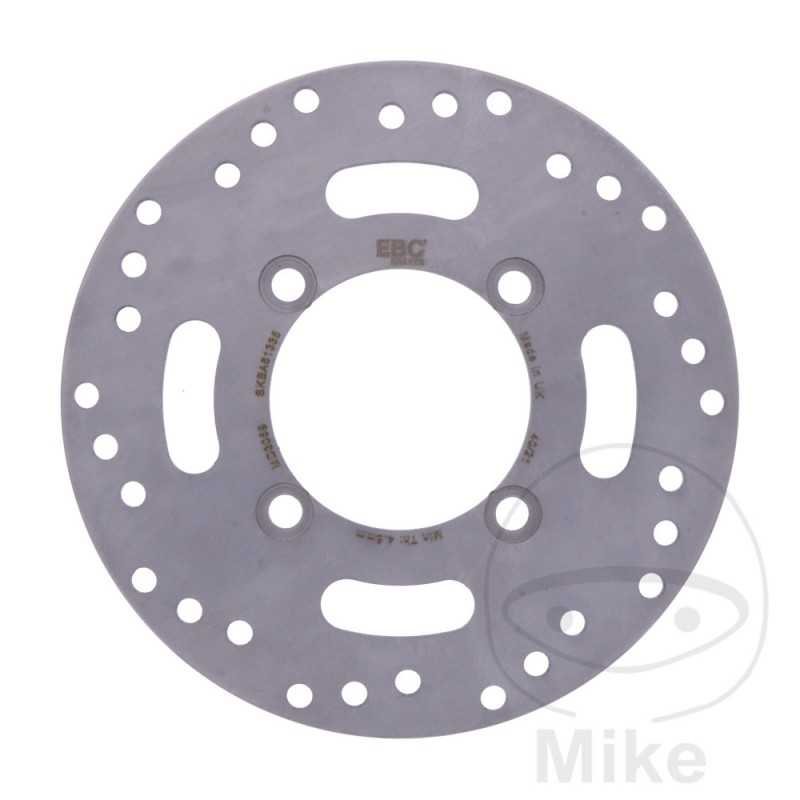

EBC BRAKE DISK 760.19.33

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a slight flash of rust form after a long period of time.

The brake discs are drilled in a bird's wing design to function with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better braking behavior in the wet and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 210MM
INSIDE DIAMETER: 84.2MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A N Bastidores: NF13A-100001-NF13A-104427 1992
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A P Bastidores: NF13A-104428-NF13A-107351 1993
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A R Bastidores: NF13A-107352-- 1994
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A S Bastidores: --- 1995
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A T Bastidores: NF13A-108620-- 1996
Suzuki RG 125 FU Gamma 33 CV, 24 kw 1cil. NF13B N Bastidores: NF13B-100001-NF13B-101559 1992
Suzuki RG 125 FU Gamma 33 CV, 24 kw 1cil. NF13B P Bastidores: NF13B-101560-NF13B-103012 1993
Suzuki RG 125 FU Gamma 33 CV, 24 kw 1cil. NF13B R Bastidores: NF13B-103013-- 1994
Suzuki RGV 250 56 CV, 41 kw 2cil. VJ22B M Bastidores: VJ22B-100001-VJ22B-101547 1991
Suzuki RGV 250 56 CV, 41 kw 2cil. VJ22B N Bastidores: VJ22B-101548-VJ22B-102945 1992
Suzuki RGV 250 56 CV, 41 kw 2cil. VJ22B P Bastidores: VJ22B-102946-- 1993
