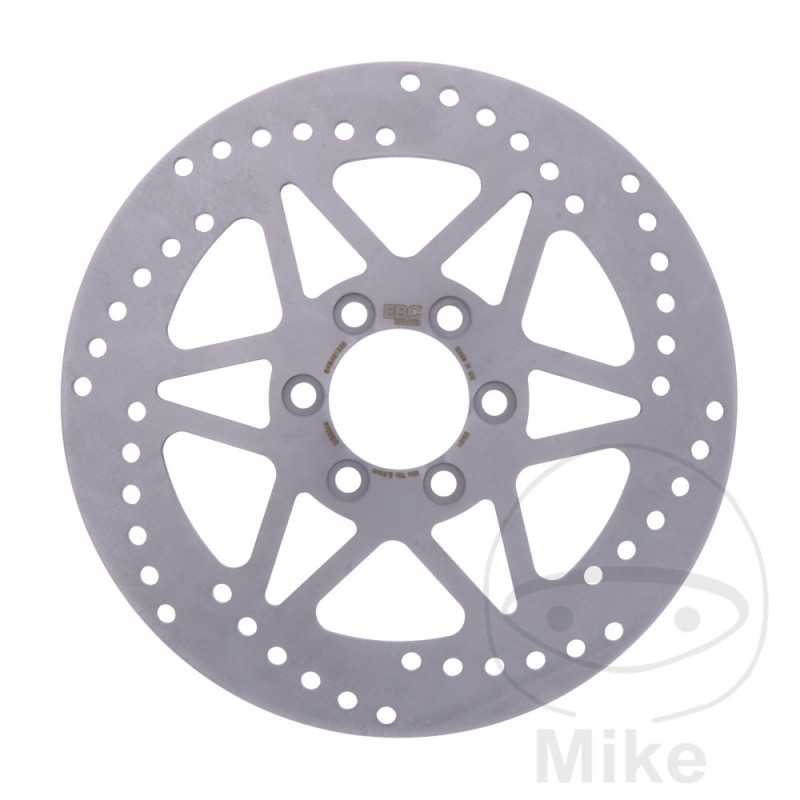

EBC BRAKE DISK 760.18.75

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 278MM
INSIDE DIAMETER: 57.2MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki VS 1400 GLF Intruder manillar plano 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLF Intruder manillar plano 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K1 Bastidores: VX51L henceforth00504901-VX51L henceforth00505797 2001
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K2 Bastidores: VX51L henceforth00505798-VX51L henceforth00506817 2002
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K3 Bastidores: VX51L henceforth00506818-- 2003
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L T Bastidores: VX51L-125294-VX51L-129696 1996
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L V Bastidores: VX51L-129697-VX51L-132929 1997
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L W Bastidores: VX51L-132930-VX51L-135285 1998
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L X Bastidores: VX51L-135286-- 1999
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L Y Bastidores: VX51L henceforth00503273-VX51L henceforth00504900 2000
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L R Bastidores: VX51L-115246-VX51L-121561 1994
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L S Bastidores: VX51L-121562-VX51L-125293 1995
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD N Bastidores: VX51LD-108040-VX51LD-110757 1992
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD P Bastidores: VX51LD-110758-- 1993
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD K Bastidores: VX51LD-104562-VX51LD-105129 1989
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD L Bastidores: VX51LD-105130-VX51LD-105901 1990
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD M Bastidores: VX51LD-105902-VX51LD-108039 1991
