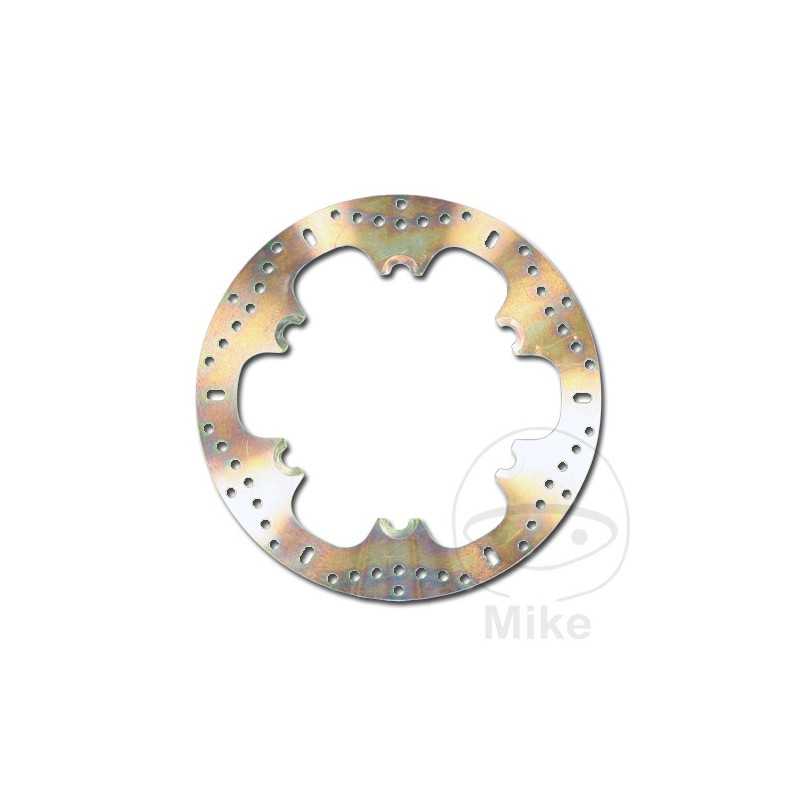

EBC BRAKE DISK 760.18.18
€180.67
Tax included
EBC HPSR brake disc, rigid version. MADE IN THE UK.
The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.
The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.
- Brake ring milled in forged HPSR steel with low carbon content.
- Therefore, there is no distortion of the brake disc even under the highest load.
- No glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect against corrosion.
- Lower manufacturing tolerances.
- EBC recommends EBC Double-H sintered brake pads for the best braking performance.
- Independent design.
GOLD COLOR
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 180MM
CIRCLE SIZE: 180 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 16 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 1 Bastidores: ZXT00B henceforth00001-ZXT00B henceforth12000 1988
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 1 Bastidores: ZXT00B henceforth12452-ZXT00B henceforth17000 1988
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 2 Bastidores: ZXT00B henceforth12001-ZXT00B henceforth12451 1989
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 2 Bastidores: ZXT00B henceforth17001-ZXT00B henceforth28000 1989
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 3 Bastidores: ZXT00B henceforth28001-ZXT00B-999999 1990
The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.
The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.
- Brake ring milled in forged HPSR steel with low carbon content.
- Therefore, there is no distortion of the brake disc even under the highest load.
- No glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect against corrosion.
- Lower manufacturing tolerances.
- EBC recommends EBC Double-H sintered brake pads for the best braking performance.
- Independent design.
GOLD COLOR
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 180MM
CIRCLE SIZE: 180 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 16 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 1 Bastidores: ZXT00B henceforth00001-ZXT00B henceforth12000 1988
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 1 Bastidores: ZXT00B henceforth12452-ZXT00B henceforth17000 1988
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 2 Bastidores: ZXT00B henceforth12001-ZXT00B henceforth12451 1989
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 2 Bastidores: ZXT00B henceforth17001-ZXT00B henceforth28000 1989
Kawasaki ZX-10 1000 B Tomcat 100 CV, 74 kw 4cil. ZXT00B 3 Bastidores: ZXT00B henceforth28001-ZXT00B-999999 1990
760.18.18
10 Items
Data sheet
- VERSION
- RIGID
- QUANTITY OF HOLES
- 6
- EXTERNAL DIAMETER
- 300 MM
- CIRCLE MEASUREMENT
- 180 MM
- HOLE DIAMETER
- 16 MM
- INSIDE DIAMETER
- 180 MM
- THICKNESS
- 5 MM
