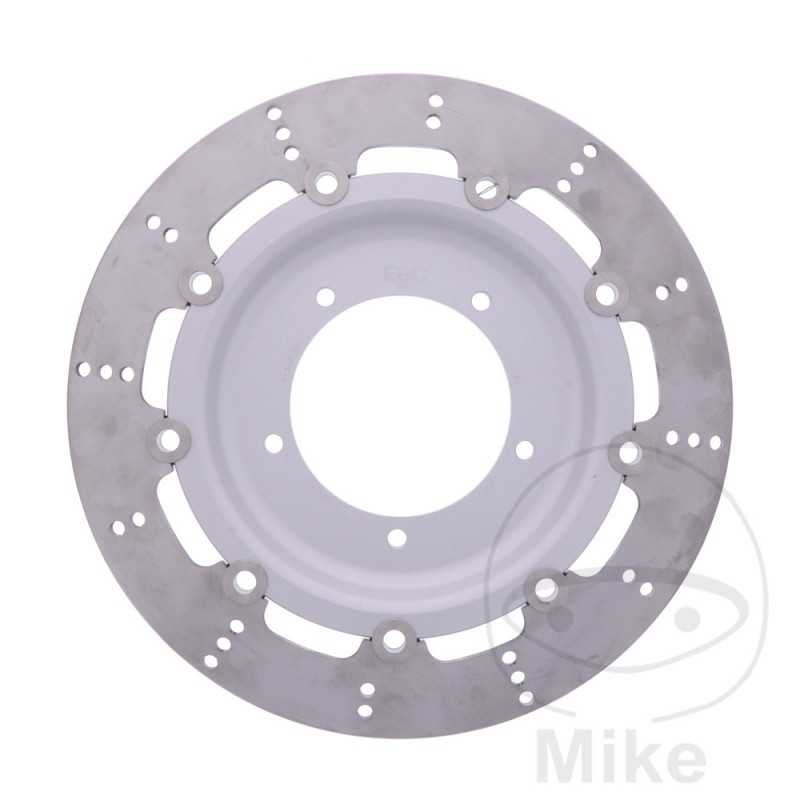

EBC BRAKE DISK 760.05.96

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
THICKNESS: 7MM
PADDING: 21MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 C Bastidores: RC04-2300008-RC04-2399999 1982
Honda CB 750 F2 Bol d´Or 79 CV, 58 kw 4cil. RC04 C Bastidores: RC04-4000012-RC04-4099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-2200038-SC01-2209987 1981
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-2000019-SC09-2099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-2100001-SC09-2199999 1983
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-4000012-SC01-4010949 1981
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-4000025-SC09-4099999 1982
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-4100001-SC09-4199999 1983
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 E Bastidores: SC14-4000556-SC14-4002030 1984
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 F Bastidores: SC14-4100135-SC14-4100819 1985-1986
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 H Bastidores: SC14-4300001-SC14-4399999 1987-1988
