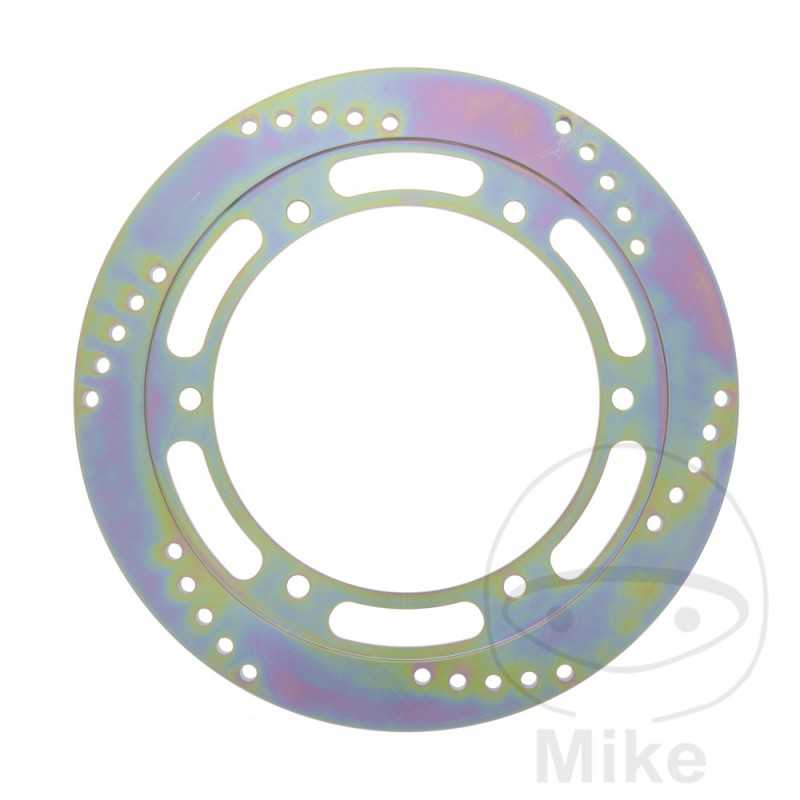

EBC BRAKE DISK 760.05.70

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 316MM
INSIDE DIAMETER: 184.2MM
CIRCLE SIZE: 206 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 7.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 M Bastidores: SC22-2300101-SC22-2300170 1991
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 N Bastidores: SC22-2400001-- 1992
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 P Bastidores: SC22-2500001-- 1993
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 R Bastidores: SC22-2600001-- 1994
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 S Bastidores: SC22-2700001-- 1995
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A T Bastidores: SC22A-TA000001-- 1996
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A T Bastidores: SC22A-TA710001-- 1996
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A V Bastidores: 1HF SC22A-VA000001-- 1997
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A V Bastidores: 1HF SC22A-VA720001-- 1997
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 M Bastidores: SC29-OA300101-SC29-OA300150 1991
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 N Bastidores: SC29 henceforthA400001-- 1992
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 R Bastidores: 1HF SC229 henceforthA600001-- 1994
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 S Bastidores: SC229 henceforthA700001-- 1995
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A V Bastidores: 1HF SC34A-VA000001-- 1997
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A W Bastidores: 1HF SC34A-WA100001-- 1998
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34A X Bastidores: 1HF SC34A-XA200001-- 1999
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B V Bastidores: 1HF SC34B-VA000001-- 1997
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B W Bastidores: 1HF SC34B-WA100001-- 1998
Honda GL 1500 C Valkyrie F6C 98 CV, 72 kw 6cil. SC34B X Bastidores: 1HF SC34B-XA200001-- 1999
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 L Bastidores: SC22-2200282-SC22-2200480 1990
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 M Bastidores: SC22-4000631-SC22-4000880 1991
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 N Bastidores: SC22-4100340-- 1992
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 P Bastidores: SC22-4200001-- 1993
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 R Bastidores: SC22-4300001-- 1994
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 S Bastidores: SC22-4400001-- 1995
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B V Bastidores: 1HF SC22B-VA000001-- 1997
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B X Bastidores: 1HF SC22B-XA200001-- 1999
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B Y Bastidores: 1HF SC22B-YA300001-- 2000
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22C T Bastidores: SC22C-TA000001-- 1996
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22C W Bastidores: 1HF SC22C-WA100001-- 1998
Honda ST 1100 A Pan European ABS 100 CV, 74 kw 4cil. SC26 N Bastidores: SC26-4200007-SC26-4200993 1992
Honda ST 1100 A Pan European ABS 98 CV, 72 kw 4cil. SC26 P Bastidores: SC26-4300061-- 1993
Honda ST 1100 A Pan European ABS 98 CV, 72 kw 4cil. SC26 R Bastidores: SC26-4400209-- 1994
Honda ST 1100 A Pan European ABS 98 CV, 72 kw 4cil. SC26 S Bastidores: SC26-4500104-SC26-4500564 1995
Honda ST 1100 Pan European 100 CV, 74 kw 4cil. SC26 L Bastidores: SC26-2000024-SC26-2003574 1990
Honda ST 1100 Pan European 100 CV, 74 kw 4cil. SC26 M Bastidores: SC26-2100001-SC26-2102389 1991
Honda ST 1100 Pan European 100 CV, 74 kw 4cil. SC26 N Bastidores: SC26-2200001-SC26-2201773 1992
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26 P Bastidores: SC26-2300001-- 1993
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26 R Bastidores: SC26-2400001-- 1994
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26 S Bastidores: SC26-2500231-SC26-2501387 1995
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D T Bastidores: JH2 SC26D-TM000001-JH2 SC26D-TM000464 1996
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D V Bastidores: JH2 SC26D-VM100001-JH2 SC26D-VM100317 1997
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D W Bastidores: JH2 SC26D-WM200001-- 1998
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D X Bastidores: JH2 SC26D-XM300001-- 1999
Honda ST 1100 Pan European 98 CV, 72 kw 4cil. SC26D Y Bastidores: JH2 SC26D-YM400001-- 2000-2001
