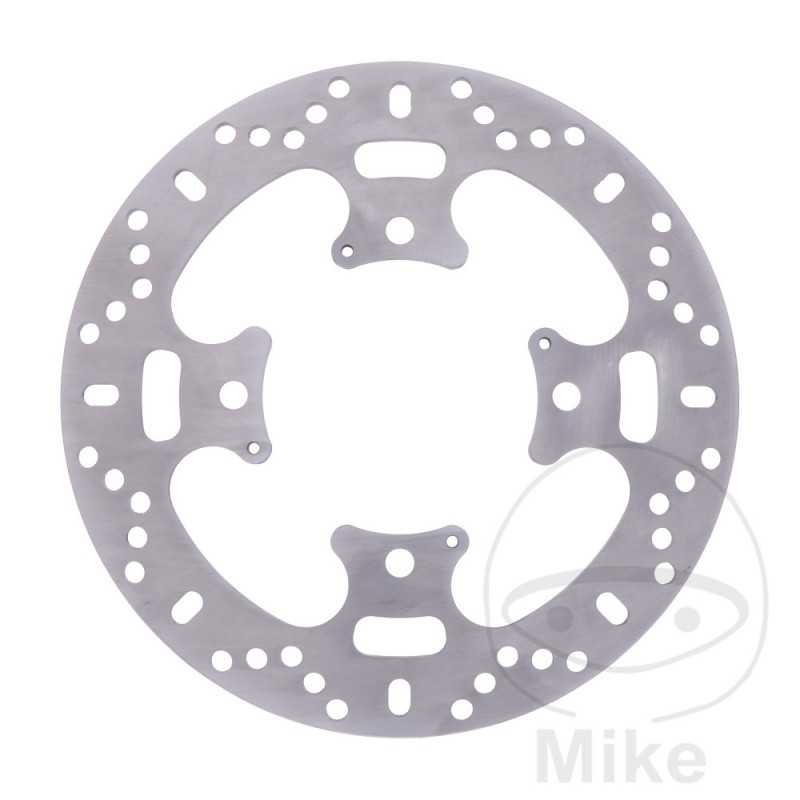

EBC BRAKE DISK 760.05.63

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 255MM
INSIDE DIAMETER: 103.25MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.4MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Bonneville 1200 Bobber ABS 48 CV, 35 kw 2cil. DV01A Bastidores: --- 2021
Triumph Bonneville 1200 Bobber ABS 48 CV, 35 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Bobber ABS 77 CV, 56,6 kw 2cil. DV01 Bastidores: 1 --1 - 2017-2018
Triumph Bonneville 1200 Bobber ABS 77 CV, 56,6 kw 2cil. DV01A Bastidores: 1 --1 - 2021
Triumph Bonneville 1200 Bobber ABS 77/48 CV, 56,6/35 kw 2cil. DV01A Bastidores: 1 --1 - 2018-2020
Triumph Bonneville 1200 Bobber ABS 78 CV, 58 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Bobber Black ABS 48 CV, 35 kw 2cil. DV01A Bastidores: --- 2021
Triumph Bonneville 1200 Bobber Black ABS 77 CV, 56,6 kw 2cil. DV01 Bastidores: 2 --2 - 2018
Triumph Bonneville 1200 Bobber Black ABS 77 CV, 56,6 kw 2cil. DV01A Bastidores: --- 2021
Triumph Bonneville 1200 Bobber Black ABS 77/48 CV, 56,6/35 kw 2cil. DV01A Bastidores: 2 --2 - 2018-2020
Triumph Bonneville 1200 Bobber Gold Line Editon ABS 48 CV, 35 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Bobber Gold Line Editon ABS 78 CV, 58 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Bobber TFC ABS 87 CV, 64 kw 2cil. DV01A Bastidores: 4--4- 2020
Triumph Bonneville 1200 Speedmaster ABS 48 CV, 35 kw 2cil. DV01A Bastidores: --- 2021
Triumph Bonneville 1200 Speedmaster ABS 48 CV, 35 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Speedmaster ABS 77 CV, 56,6 kw 2cil. DV01 Bastidores: 1 --1 - 2018
Triumph Bonneville 1200 Speedmaster ABS 77 CV, 56,6 kw 2cil. DV01A Bastidores: 2 --2 - 2021
Triumph Bonneville 1200 Speedmaster ABS 77/48 CV, 56,6/35 kw 2cil. DV01A Bastidores: 3 --3 - 2018-2020
Triumph Bonneville 1200 Speedmaster ABS 78 CV, 58 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Speedmaster ABS 78/48 CV, 58/35 kw 2cil. DX04 Bastidores: --- 2021
Triumph Bonneville 1200 Speedmaster Gold Line Edition ABS 48 CV, 35 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 Speedmaster Gold Line Edition ABS 78 CV, 58 kw 2cil. DX04 Bastidores: --- 2022
Triumph Bonneville 1200 T120 ABS 80 CV, 59 kw 2cil. DU01 Bastidores: 1 --1 - 2016-2018
Triumph Bonneville 1200 T120 ABS 80/48 CV, 59/35 kw 2cil. DU01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 1200 T120 Black ABS 80 CV, 59 kw 2cil. DU01 Bastidores: 1 --1 - 2016-2018
Triumph Bonneville 1200 T120 Black ABS 80/48 CV, 59/35 kw 2cil. DU01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 1200 T120 Bud Ekins ABS 80/48 CV, 59/35 kw 2cil. DU01A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB02 Bastidores: --- 2018-2019
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB02 Bastidores: 1 --1 - 2018
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB02A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 ABS 48 CV, 35 kw 2cil. DB04R Bastidores: 1--1- 2021-2022
Triumph Bonneville 900 EFI T100 ABS 55 CV, 40,5 kw 2cil. DB01 Bastidores: 1 --1 - 2017-2018
Triumph Bonneville 900 EFI T100 ABS 55 CV, 40,5 kw 2cil. DB01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 900 EFI T100 ABS 65 CV, 48 kw 2cil. DB04 Bastidores: 1--1- 2021-2022
Triumph Bonneville 900 EFI T100 Black ABS 48 CV, 35 kw 2cil. DB02 Bastidores: --- 2018-2019
Triumph Bonneville 900 EFI T100 Black ABS 48 CV, 35 kw 2cil. DB02 Bastidores: 1 --1 - 2018
Triumph Bonneville 900 EFI T100 Black ABS 48 CV, 35 kw 2cil. DB02A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 Black ABS 55 CV, 40,5 kw 2cil. DB01 Bastidores: 1 --1 - 2017-2018
Triumph Bonneville 900 EFI T100 Black ABS 55 CV, 40,5 kw 2cil. DB01A Bastidores: 1 --1 - 2018-2021
Triumph Bonneville 900 EFI T100 Bud Ekins ABS 48 CV, 35 kw 2cil. DB02A Bastidores: 1 --1 - 2020-2021
Triumph Bonneville 900 EFI T100 Bud Ekins ABS 55 CV, 40,5 kw 2cil. DB01A Bastidores: 1 --1 - 2020-2021
Triumph Speed Triple 1050 R ABS 140 CV, 103 kw 3cil. NN01 Bastidores: 01 - henceforth1 - 2017-2018
Triumph Speed Triple 1050 RS ABS 150 CV, 110 kw 3cil. NN02 Bastidores: 1 --1 - 2018
Triumph Speed Triple 1050 RS ABS 150 CV, 110 kw 3cil. NN02A Bastidores: 1 --1 - 2018-2019
Triumph Speed Triple 1050 S ABS 140 CV, 103 kw 3cil. NN01 Bastidores: 01 - henceforth1 - 2017
Triumph Speed Triple 1050 S ABS 140 CV, 103 kw 3cil. NN02 Bastidores: 1 - 867685-1 - 2018
Triumph Speed Triple 1050 S ABS 150 CV, 110 kw 3cil. NN02A Bastidores: 1 - 867685-1 - 2018
Triumph Speed Triple 1050 S ABS 150 CV, 110 kw 3cil. NN02A Bastidores: 1 --1 - 2019
Triumph Street Cup 900 EFI ABS 48 CV, 35 kw 2cil. DZ02 Bastidores: 1 --1 - 2018-2019
Triumph Street Cup 900 EFI ABS 55 CV, 40,5 kw 2cil. DZ01 Bastidores: 1 --1 - 2017-2019
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC02 Bastidores: 1 --1 - 2017-2018
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC03R Bastidores: 1 --1 - 2019-2020
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC04R Bastidores: --- 2022
Triumph Street Scrambler 900 EFI ABS 48 CV, 35 kw 2cil. DC04R Bastidores: 1 --1 - 2021
Triumph Street Scrambler 900 EFI ABS 55 CV, 40,5 kw 2cil. DC01 Bastidores: 1 --1 - 2017-2018
Triumph Street Scrambler 900 EFI ABS 65 CV, 48 kw 2cil. DC03 Bastidores: 1 --1 - 2019-2020
Triumph Street Scrambler 900 EFI ABS 65 CV, 48 kw 2cil. DC04 Bastidores: --- 2022
Triumph Street Scrambler 900 EFI ABS 65 CV, 48 kw 2cil. DC04 Bastidores: 1 --1 - 2021
Triumph Street Scrambler 900 EFI Gold Line Edition ABS 48 CV, 35 kw 2cil. DC04R Bastidores: --- 2022
Triumph Street Scrambler 900 EFI Gold Line Edition ABS 65 CV, 48 kw 2cil. DC04 Bastidores: --- 2022
Triumph Street Scrambler 900 EFI Sandstorm Edition ABS 48 CV, 35 kw 2cil. DC04R Bastidores: 1 --1 - 2021-2022
Triumph Street Scrambler 900 EFI Sandstorm Edition ABS 65 CV, 48 kw 2cil. DC04 Bastidores: 1 --1 - 2021-2022
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP02 Bastidores: 1 --1 - 2017
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP02 Bastidores: 1 --1 - AB9714 2018
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP03R Bastidores: 1 - AB9715-1 - 2019
Triumph Street Twin 900 EFI ABS 48 CV, 35 kw 2cil. DP03R Bastidores: 1 --1 - 2020
Triumph Street Twin 900 EFI ABS 55 CV, 40,5 kw 2cil. DP01 Bastidores: 1 --1 - 2016-2017
Triumph Street Twin 900 EFI ABS 55 CV, 40,5 kw 2cil. DP01 Bastidores: 1 --1 - AB9714 2018
Triumph Street Twin 900 EFI ABS 65 CV, 48 kw 2cil. DP03 Bastidores: 1 - AB9715-1 - 2019
Triumph Street Twin 900 EFI ABS 65 CV, 48 kw 2cil. DP03 Bastidores: 1 --1 - 2020
