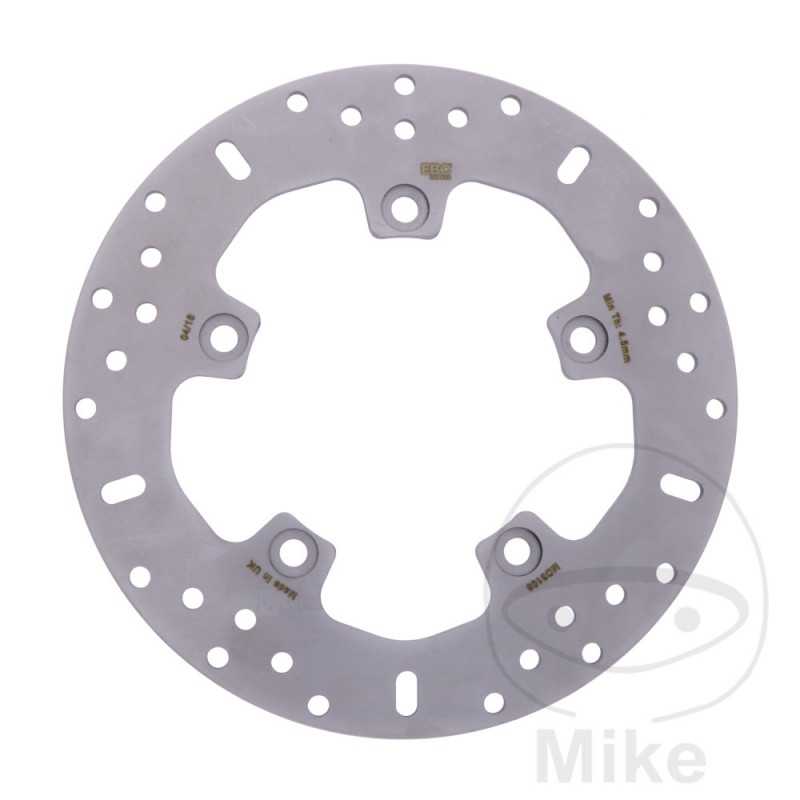

EBC BRAKE DISK 760.05.53

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is crushed in the area of the contact patch of the brake pads when braking. It is only in this area that a light oxide film with a longer service life can form.

The brake discs are drilled in the bird's-eye design to fit through with as few holes as possible and at the same time the cleaning of the brake disc from rainwater and brake dust is optimized. The fewer holes drilled, the better the wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR rolled steel.

- Drilled braking surface with optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 250MM
HOLES QUANTITY: 5
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-S 1000 145,5 CV, 107 kw 4cil. DG1111 L6 Bastidores: DG1111-G0100001-- 2015-2016
Suzuki GSX-S 1000 A ABS 145,5 CV, 107 kw 4cil. DG1122 L6 Bastidores: DG1122-G0100001-- 2015-2017
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 L8 Bastidores: DG3222-J0100001-DG3222-J0199999 2018
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 L9 Bastidores: DG3222-K7100001-DG3222-K7199999 2019
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 M0 Bastidores: DG3222-L7100001-DG3222-L7999999 2020-2021
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG2122 L6 Bastidores: DG2122-G0100001-- 2015-2017
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 L8 Bastidores: DG4522-J0100001-DG4522-J0199999 2018
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 L9 Bastidores: DG4522-K7100001-DG4522-K7199999 2019
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 M0 Bastidores: DG4522-L7100001-DG4522-L7999999 2020-2021
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 L8 Bastidores: DG3222-J0100001-DG3222-J0199999 2018
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 L9 Bastidores: DG3222-K7100001-DG3222-K7199999 2019
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 M0 Bastidores: DG3222-L7100001-DG3222-L7999999 2020-2021
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 L8 Bastidores: DG4522-J0100001-DG4522-J0199999 2018
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 L9 Bastidores: DG4522-K7100001-DG4522-K7199999 2019
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 M0 Bastidores: DG4522-L7100001-DG4522-L7999999 2020-2021
Suzuki GSX-S 1000 F 145,5 CV, 107 kw 4cil. DG1133 L6 Bastidores: DG1133-G0100001-- 2015-2016
Suzuki GSX-S 1000 FA ABS 145,5 CV, 107 kw 4cil. DG1144 L6 Bastidores: DG1144-G0100001-- 2015-2017
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 L8 Bastidores: DG3244-J0100001-DG3244-J0199999 2018
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 L9 Bastidores: DG3244-K7100001-DG3244-K7199999 2019
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 M0 Bastidores: DG3244-L7100001-DG3244-L7999999 2020-2021
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG2144 L6 Bastidores: DG2144-G0100001-- 2015-2017
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 L8 Bastidores: DG4544-J0100001-DG4544-J0199999 2018
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 L9 Bastidores: DG4544-K7100001-DG4544-K7199999 2019
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 M0 Bastidores: DG4544-L7100001-DG4544-L7999999 2020-2021
Suzuki GSX-S 1000 FUF 106 CV, 78 kw 4cil. DG2133 L6 Bastidores: DG2133-G0100001-- 2015-2016
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 L8 Bastidores: DG3244-J0100001-DG3244-J0199999 2018
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 L9 Bastidores: DG3244-K7100001-DG3244-K7199999 2019
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 M0 Bastidores: DG3244-L7100001-DG3244-L7999999 2020-2021
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 L8 Bastidores: DG4544-J0100001-DG4544-J0199999 2018
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 L9 Bastidores: DG4544-K7100001-DG4544-K7199999 2019
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 M0 Bastidores: DG4544-L7100001-DG4544-L7999999 2020-2021
Suzuki GSX-S 1000 GT TRQ ABS 152 CV, 112 kw 4cil. EK12AZ M2 Bastidores: EK12AZ-N7100001-EK12AZ-N7999999 2022
Suzuki GSX-S 1000 GT TRQ Traval Edition ABS 152 CV, 112 kw 4cil. EK12AZ M2 Bastidores: EK12AZ-N7100001-EK12AZ-N7999999 2022
Suzuki GSX-S 1000 RQ ABS 152 CV, 112 kw 4cil. EK11AZ M2 Bastidores: EK11AZ-N7000001-EK11AZ-N7999999 2022
Suzuki GSX-S 1000 SRQ Katana ABS 150 CV, 110 kw 4cil. DG3255 M0 Bastidores: DG3255-L7100001-DG3255-L7999999 2019-2020
Suzuki GSX-S 1000 SRQ Katana ABS 150 CV, 110 kw 4cil. DG3255 M1 Bastidores: DG3255L-7100001-DG3255L-7999999 2021
Suzuki GSX-S 1000 SRQ Katana ABS 152 CV, 112 kw 4cil. EK13AZ M2 Bastidores: EK13AZ-N7100001-EK13AZ-N7999999 2022
Suzuki GSX-S 1000 STQ Katana ABS 106 CV, 78 kw 4cil. DG4555 M0 Bastidores: DG4555-L7100001-DG4555-L7999999 2019-2020
Suzuki GSX-S 1000 STQ Katana ABS 106 CV, 78 kw 4cil. DG4555 M1 Bastidores: DG4555-L7100001-DG4555-L7999999 2021
Suzuki GSX-S 1000 UF 106 CV, 78 kw 4cil. DG2111 L6 Bastidores: DG2111-G0100001-- 2015-2016
