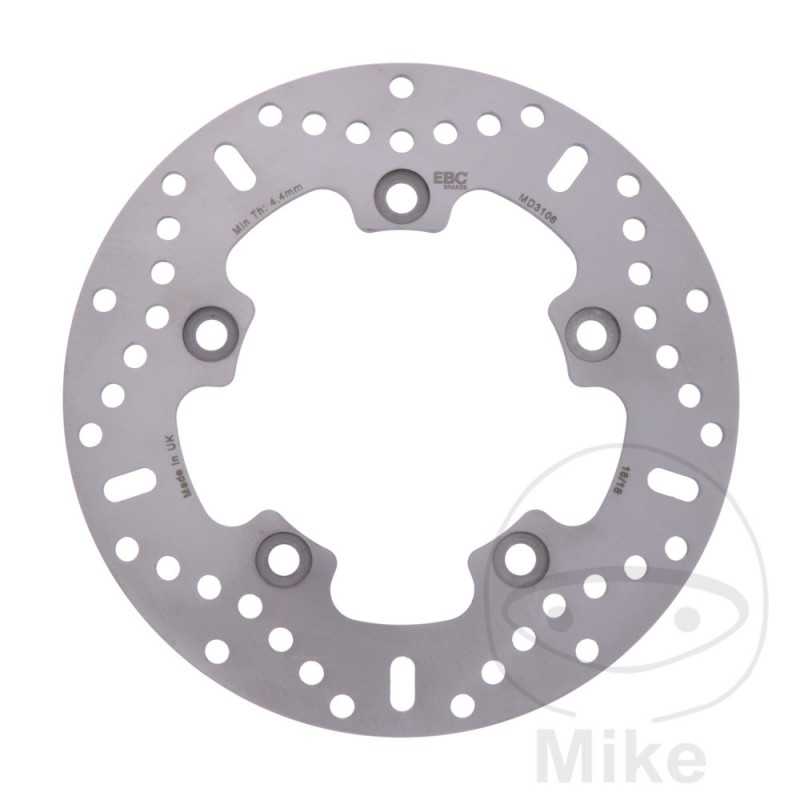

EBC BRAKE DISK 760.05.52

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the bird's wing design to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 131 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.9MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 1000 A 30th Anniversary ABS 185 CV, 136 kw 4cil. WVCY1121 L6 Bastidores: --- 2016
Suzuki GSX-R 1000 A ABS 185 CV, 136 kw 4cil. WVCY1121 L5 Bastidores: CY1121 henceforth0100001-- 2015
Suzuki GSX-R 1000 A ABS 185 CV, 136 kw 4cil. WVCY1121 L6 Bastidores: CY1121-G0100001-- 2016
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ L7 Bastidores: DM11AZ-H2100001-DM11AZ-H2199999 2017
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ L8 Bastidores: DM11AZ-J2100001-DM11AZ-J2199999 2018
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ L9 Bastidores: DM11AZ-K7100001-DM11AZ-K7999999 2019
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ M0 Bastidores: DM11AZ-L7100001-DM11AZ-L7999999 2020
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ M1 Bastidores: DM11AZ-M7100001-DM11AZ-M7999999 2021
Suzuki GSX-R 1000 A UF ABS 106 CV, 78 kw 4cil. WVCY2121 L5 Bastidores: CY2121 henceforth0100001-- 2015
Suzuki GSX-R 1000 A UF ABS 106 CV, 78 kw 4cil. WVCY2121 L6 Bastidores: CY2121-G0100001-- 2016
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ L7 Bastidores: DM11GZ-H2100001-DM11GZ-H2199999 2017
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ L8 Bastidores: DM11GZ-J2100001-DM11GZ-J2199999 2018
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ L9 Bastidores: DM11GZ-K7100001-DM11GZ-K7999999 2019
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ M0 Bastidores: DM11GZ-L7100001-DM11GZ-L7999999 2020
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ M1 Bastidores: DM11GZ-M7100001-DM11GZ-M7999999 2021-2022
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ L7 Bastidores: DM11GZ-H2100001-DM11GZ-H2199999 2017
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ L8 Bastidores: DM11GZ-J2100001-DM11GZ-J2199999 2018
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ L9 Bastidores: DM11GZ-K7100001-DM11GZ-K7999999 2019
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ M0 Bastidores: DM11GZ-L7100001-DM11GZ-L7999999 2020
Suzuki GSX-R 1000 RZA Limited Edition ABS 202 CV, 149 kw 4cil. DM11GZ M1 Bastidores: DM11GZ-M7100001-DM11GZ-M7999999 2021-2022
Suzuki GSX-R 1000 ZA ABS 202 CV, 149 kw 4cil. DM11AZ M1 Bastidores: DM11AZ-M7100001-DM11AZ-M7999999 2021
