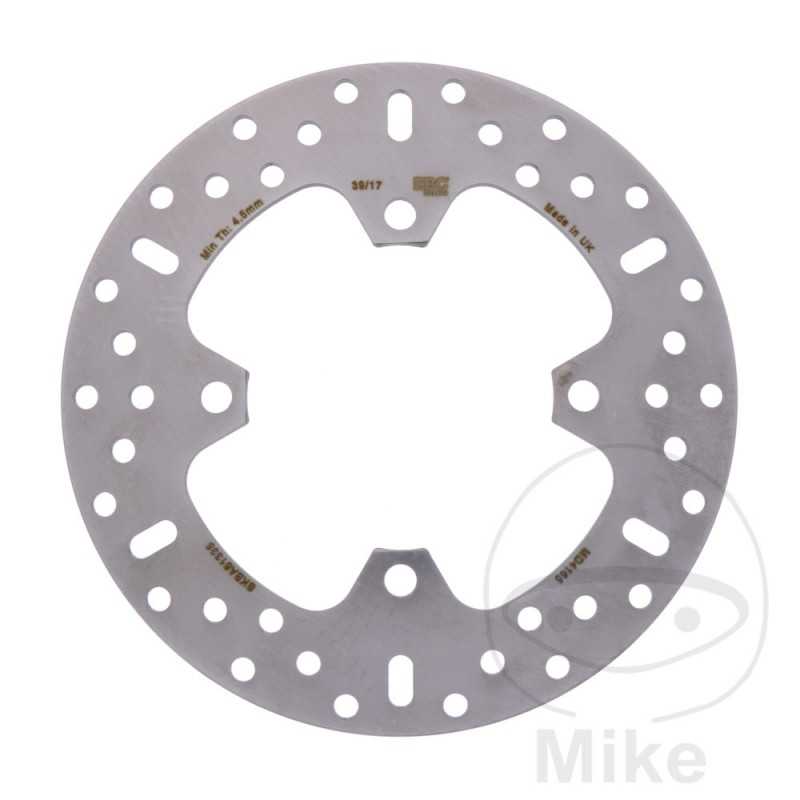

EBC BRAKE DISK 760.05.50
€117.12
Tax included
EBC brake discs. MADE IN THE UK.
The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.
The brake discs are drilled in the bird's wing design to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Braking surface drilled with an optimized hole pattern.
- Radially ground.
- Galvanized to protect against corrosion.
- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-10RR 1000 G Ninja ABS 203 CV, 149 kw 4cil. ZXT02EGA KF Bastidores: ZXT02EGA henceforth00001-ZXT02EGA-999999 2019-2020
Kawasaki ZX-10RR 1000 N Ninja ABS 204 CV, 150 kw 4cil. ZXT02LNA MFNN Bastidores: ZXT02LNA henceforth00001-ZXT02LNA henceforth05000 2021
Kawasaki ZX-10RR 1000 N Ninja ABS 204 CV, 150 kw 4cil. ZXT02LNA NSNN Bastidores: ZXT02LNA henceforth05001-ZXT02LNA-999999 2022
Kawasaki ZX-6R 600 R Ninja 128 CV, 94 kw 4cil. ZX600RRA GF Bastidores: ZX600RRA henceforth45001-ZX600RRA-999999 2016-2017
Kawasaki ZX-6R 600 R Ninja 34 CV, 25 kw 4cil. ZX600RRA GF Bastidores: ZX600RRA henceforth45001-ZX600RRA-999999 2016-2017
Kawasaki ZX-6R 600 R Ninja 98 CV, 72 kw 4cil. ZX600RRA GF Bastidores: ZX600RRA henceforth45001-ZX600RRA-999999 2016-2017
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA DF Bastidores: ZX636EEA henceforth00001-ZX636EEA henceforth10000 2013
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA EF Bastidores: ZX636EEA henceforth10001-ZX636EEA henceforth14000 2014
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA FF Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA GF Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA DF Bastidores: ZX636EEA henceforth00001-ZX636EEA henceforth10000 2013
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA EF Bastidores: ZX636EEA henceforth10001-ZX636EEA henceforth14000 2014
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA FF Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA GF Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 E Ninja Anniversary Edition 131 CV, 96,4 kw 4cil. ZX636EEA FFA Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja Anniversary Edition 98 CV, 72 kw 4cil. ZX636EEA FFA Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja KRT Edition 131 CV, 96,4 kw 4cil. ZX636EEA GFA Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 E Ninja KRT Edition 98 CV, 72 kw 4cil. ZX636EEA GFA Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA DF Bastidores: ZX636EFA henceforth00001-ZX636EFA henceforth10000 2013
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA EF Bastidores: ZX636EFA henceforth10001-ZX636EFA henceforth14000 2014
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA FF Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA GF Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA HF Bastidores: ZX636EFA henceforth25001-- 2017
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA DF Bastidores: ZX636EFA henceforth00001-ZX636EFA henceforth10000 2013
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA EF Bastidores: ZX636EFA henceforth10001-ZX636EFA henceforth14000 2014
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA FF Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA GF Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA HF Bastidores: ZX636EFA henceforth25001-- 2017
Kawasaki ZX-6R 636 F Ninja Anniversary Edition ABS 131 CV, 96,4 kw 4cil. ZX636EEA FFA Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja Anniversary Edition ABS 98 CV, 72 kw 4cil. ZX636EEA FFA Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 131 CV, 96,4 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-- 2017
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 131 CV, 96,4 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 98 CV, 72 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-- 2017
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 98 CV, 72 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 G Ninja ABS 130 CV, 95,4 kw 4cil. ZX636GGA KF Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja ABS 130 CV, 95,4 kw 4cil. ZX636GGA LF Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
Kawasaki ZX-6R 636 G Ninja ABS 98 CV, 72 kw 4cil. ZX636GGA KF Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja ABS 98 CV, 72 kw 4cil. ZX636GGA LF Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
Kawasaki ZX-6R 636 G Ninja KRT ABS 130 CV, 95,4 kw 4cil. ZX636GGA KFA Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja KRT ABS 130 CV, 95,4 kw 4cil. ZX636GGA LFA Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
Kawasaki ZX-6R 636 G Ninja KRT ABS 98 CV, 72 kw 4cil. ZX636GGA KFA Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja KRT ABS 98 CV, 72 kw 4cil. ZX636GGA LFA Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.
The brake discs are drilled in the bird's wing design to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Braking surface drilled with an optimized hole pattern.
- Radially ground.
- Galvanized to protect against corrosion.
- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-10RR 1000 G Ninja ABS 203 CV, 149 kw 4cil. ZXT02EGA KF Bastidores: ZXT02EGA henceforth00001-ZXT02EGA-999999 2019-2020
Kawasaki ZX-10RR 1000 N Ninja ABS 204 CV, 150 kw 4cil. ZXT02LNA MFNN Bastidores: ZXT02LNA henceforth00001-ZXT02LNA henceforth05000 2021
Kawasaki ZX-10RR 1000 N Ninja ABS 204 CV, 150 kw 4cil. ZXT02LNA NSNN Bastidores: ZXT02LNA henceforth05001-ZXT02LNA-999999 2022
Kawasaki ZX-6R 600 R Ninja 128 CV, 94 kw 4cil. ZX600RRA GF Bastidores: ZX600RRA henceforth45001-ZX600RRA-999999 2016-2017
Kawasaki ZX-6R 600 R Ninja 34 CV, 25 kw 4cil. ZX600RRA GF Bastidores: ZX600RRA henceforth45001-ZX600RRA-999999 2016-2017
Kawasaki ZX-6R 600 R Ninja 98 CV, 72 kw 4cil. ZX600RRA GF Bastidores: ZX600RRA henceforth45001-ZX600RRA-999999 2016-2017
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA DF Bastidores: ZX636EEA henceforth00001-ZX636EEA henceforth10000 2013
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA EF Bastidores: ZX636EEA henceforth10001-ZX636EEA henceforth14000 2014
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA FF Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja 131 CV, 96,4 kw 4cil. ZX636EEA GF Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA DF Bastidores: ZX636EEA henceforth00001-ZX636EEA henceforth10000 2013
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA EF Bastidores: ZX636EEA henceforth10001-ZX636EEA henceforth14000 2014
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA FF Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja 98 CV, 72 kw 4cil. ZX636EEA GF Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 E Ninja Anniversary Edition 131 CV, 96,4 kw 4cil. ZX636EEA FFA Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja Anniversary Edition 98 CV, 72 kw 4cil. ZX636EEA FFA Bastidores: ZX636EEA henceforth14001-ZX636EEA henceforth19000 2015
Kawasaki ZX-6R 636 E Ninja KRT Edition 131 CV, 96,4 kw 4cil. ZX636EEA GFA Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 E Ninja KRT Edition 98 CV, 72 kw 4cil. ZX636EEA GFA Bastidores: ZX636EEA henceforth19001-ZX636EEA-999999 2016
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA DF Bastidores: ZX636EFA henceforth00001-ZX636EFA henceforth10000 2013
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA EF Bastidores: ZX636EFA henceforth10001-ZX636EFA henceforth14000 2014
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA FF Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA GF Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 F Ninja ABS 131 CV, 96,4 kw 4cil. ZX636EFA HF Bastidores: ZX636EFA henceforth25001-- 2017
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA DF Bastidores: ZX636EFA henceforth00001-ZX636EFA henceforth10000 2013
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA EF Bastidores: ZX636EFA henceforth10001-ZX636EFA henceforth14000 2014
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA FF Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA GF Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 F Ninja ABS 98 CV, 72 kw 4cil. ZX636EFA HF Bastidores: ZX636EFA henceforth25001-- 2017
Kawasaki ZX-6R 636 F Ninja Anniversary Edition ABS 131 CV, 96,4 kw 4cil. ZX636EEA FFA Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja Anniversary Edition ABS 98 CV, 72 kw 4cil. ZX636EEA FFA Bastidores: ZX636EFA henceforth14001-ZX636EFA henceforth19000 2015
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 131 CV, 96,4 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-- 2017
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 131 CV, 96,4 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 98 CV, 72 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-- 2017
Kawasaki ZX-6R 636 F Ninja KRT Edition ABS 98 CV, 72 kw 4cil. ZX636EFA GFA Bastidores: ZX636EFA henceforth19001-ZX636EFA-999999 2016
Kawasaki ZX-6R 636 G Ninja ABS 130 CV, 95,4 kw 4cil. ZX636GGA KF Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja ABS 130 CV, 95,4 kw 4cil. ZX636GGA LF Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
Kawasaki ZX-6R 636 G Ninja ABS 98 CV, 72 kw 4cil. ZX636GGA KF Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja ABS 98 CV, 72 kw 4cil. ZX636GGA LF Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
Kawasaki ZX-6R 636 G Ninja KRT ABS 130 CV, 95,4 kw 4cil. ZX636GGA KFA Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja KRT ABS 130 CV, 95,4 kw 4cil. ZX636GGA LFA Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
Kawasaki ZX-6R 636 G Ninja KRT ABS 98 CV, 72 kw 4cil. ZX636GGA KFA Bastidores: ZX636GGA henceforth00001-ZX636GGA henceforth07000 2019
Kawasaki ZX-6R 636 G Ninja KRT ABS 98 CV, 72 kw 4cil. ZX636GGA LFA Bastidores: ZX636GGA henceforth07001-ZX636GGA-999999 2020
760.05.50
10 Items
Data sheet
- EXTERNAL DIAMETER
- 220 MM
- CIRCLE MEASUREMENT
- 120 MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 120 MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 4
- THICKNESS
- 5 MM
