EBC BRAKE DISK 760.05.38

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

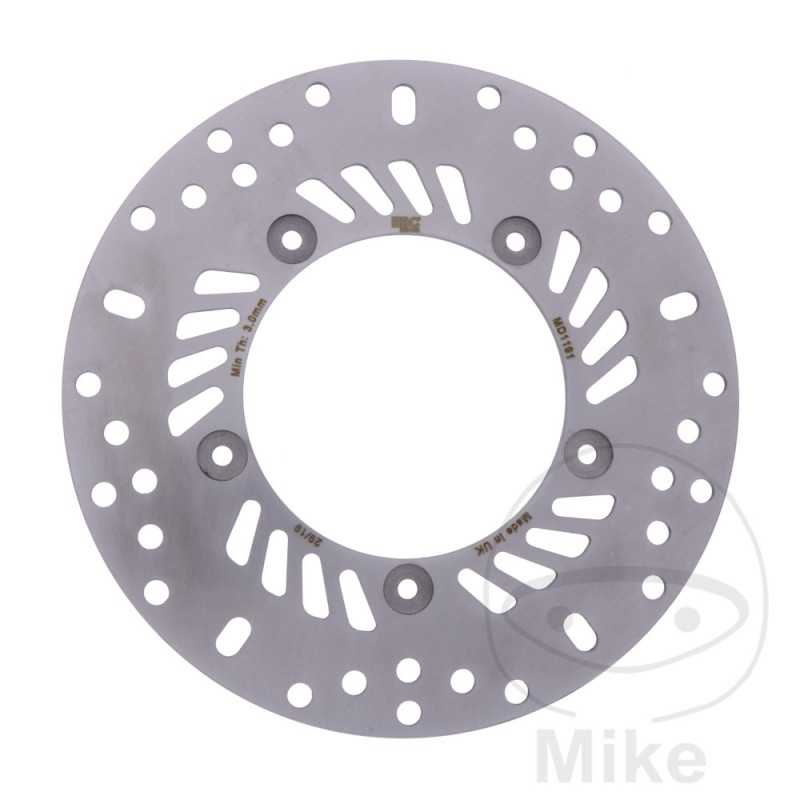

The brake discs are drilled in the bird's wing design to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
HOLES QUANTITY: 5
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A J Bastidores: MLH JC75A-J5100001-- 2018-2020
Honda MSX 125 A Grom ABS 9,8 CV, 7,2 kw 1cil. JC92A M Bastidores: MLH JC92A-M5000001-MLH JC92A-M5099999 2021
Honda MSX 125 A Grom ABS 9,8 CV, 7,2 kw 1cil. JC92A N Bastidores: MLH JC92A-N5100001-MLH JC92A-N5199999 2022
Honda Z 125 MA Monkey ABS 9,4 CV, 6,9 kw 1cil. JB02A K Bastidores: MLH JB02A-K5000001-- 2018-2021
Honda Z 125 MA Monkey ABS 9,4 CV, 6,9 kw 1cil. JB03A N Bastidores: MLH JB03A-N5000001-- 2022-2023
