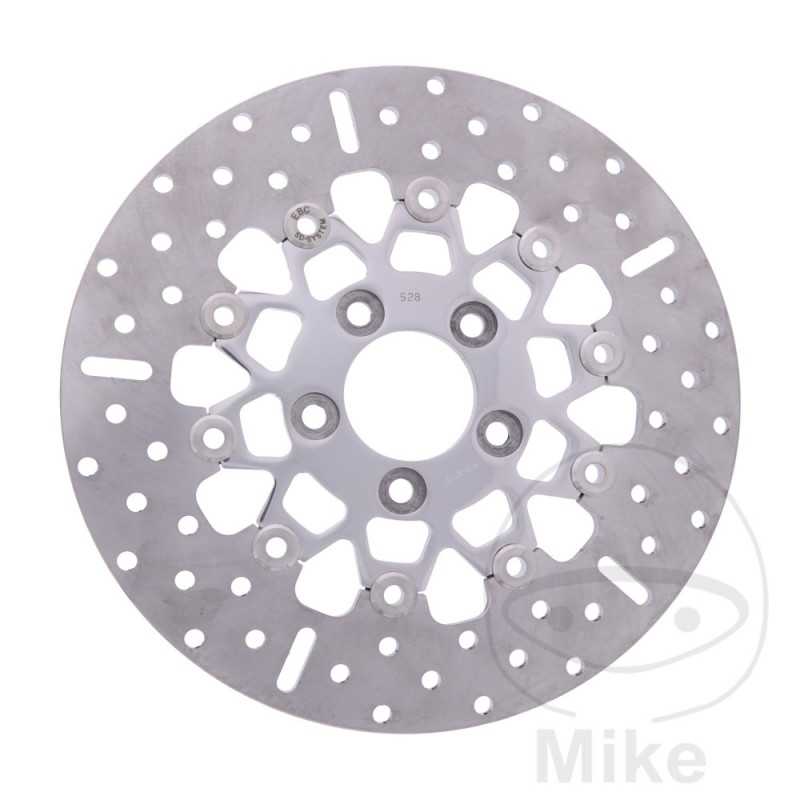

EBC BRAKE DISK 760.05.28

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the bird's wing design to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 56.4MM
CIRCLE SIZE: 82.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FLDE 1745 Softail Deluxe ABS 87/45 CV, 64/33 kw 2cil. YCJ ST1 Bastidores: --- 2018-2020
Harley Davidson FLFB 1745 Softail Fat Boy ABS 87/45 CV, 64/33 kw 2cil. YFJ ST1 Bastidores: --- 2018-2020
Harley Davidson FLFBS 1868 ANV Softail Fat Boy Anniversary ABS 94 CV, 69 kw 2cil. YRK ST1 Bastidores: --- 2018
Harley Davidson FLFBS 1868 ANX Softail Fat Boy Anniversary ABS 94 CV, 69 kw 2cil. YSK ST1 Bastidores: --- 2018
Harley Davidson FLFBS 1868 Softail Fat Boy ABS 94 CV, 69 kw 2cil. YGK ST1 Bastidores: --- 2018-2020
Harley Davidson FXBB 1745 Softail Street Bob ABS 87/45 CV, 64/33 kw 2cil. YJJ ST1 Bastidores: --- 2018-2020
Harley Davidson FXBBS 1868 Softail Street Bob ABS 95 CV, 70 kw 2cil. YYK Bastidores: --- 2021-2022
Harley Davidson FXBR 1745 Softail Breakout ABS 87/45 CV, 64/33 kw 2cil. YEJ ST1 Bastidores: --- 2018-2019
Harley Davidson FXBRS 1868 ANX Softail Breakout Anniversary ABS 94 CV, 69 kw 2cil. YTK ST1 Bastidores: --- 2018
Harley Davidson FXBRS 1868 Softail Breakout ABS 94 CV, 69 kw 2cil. YHK ST1 Bastidores: --- 2018-2020
Harley Davidson FXBRS 1868 Softail Breakout ABS 95 CV, 70 kw 2cil. YHK Bastidores: --- 2021-2022
Harley Davidson FXFB 1745 Softail Fat Bob ABS 83/45 CV, 62/33 kw 2cil. YKJ ST1 Bastidores: --- 2020
Harley Davidson FXFB 1745 Softail Fat Bob ABS 87/45 CV, 64/33 kw 2cil. YKJ ST1 Bastidores: --- 2018-2019
Harley Davidson FXFBS 1868 Softail Fat Bob ABS 94 CV, 69 kw 2cil. YLK Bastidores: --- 2021-2022
Harley Davidson FXLR 1745 Softail Low Rider ABS 87/45 CV, 64/33 kw 2cil. YNJ ST1 Bastidores: --- 2018-2020
Harley Davidson FXLRS 1868 Softail Low Rider S ABS 94 CV, 69 kw 2cil. YWK Bastidores: --- 2020
Harley Davidson FXLRS 1868 Softail Low Rider S ABS 95 CV, 70 kw 2cil. YWK Bastidores: --- 2021
Harley Davidson FXLRS 1923 S Softail Low Rider ABS 94 CV, 69 kw 2cil. YWL Bastidores: --- 2022
Harley Davidson FXLRST 1923 ST Softail Low Rider ABS 106 CV, 78 kw 2cil. YXL Bastidores: --- 2022
Harley Davidson FXSB 1690 Softail Breakout ABS 75 CV, 55 kw 2cil. BFV FS2 Bastidores: --- 2015-2016
Harley Davidson FXSB 1690 Softail Breakout ABS 75/44 CV, 55/32 kw 2cil. BFV FS2 Bastidores: --- 2017
