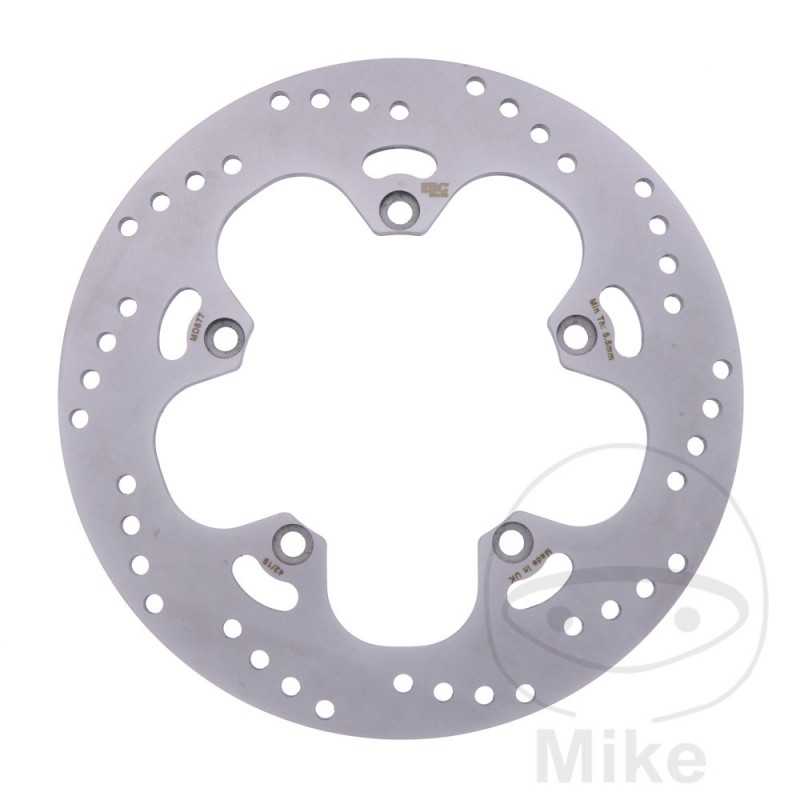

EBC BRAKE DISK 760.04.91

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 285MM
INSIDE DIAMETER: 135.4MM
CIRCLE SIZE: 154 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Tiger 955 i llanta de fundición 106 CV, 78 kw 3cil. 709EN Bastidores: 730 - 198875-730 - 2005
Triumph Tiger 955 i llanta de fundición 106 CV, 78 kw 3cil. 709EN Bastidores: 730 --730 - 2006
Triumph Tiger 955 i llanta de fundición 98 CV, 72 kw 3cil. 709EN Bastidores: 730 - 198875-730 - 2005
Triumph Tiger 955 i llanta de fundición 98 CV, 72 kw 3cil. 709EN Bastidores: 730 --730 - 2006
