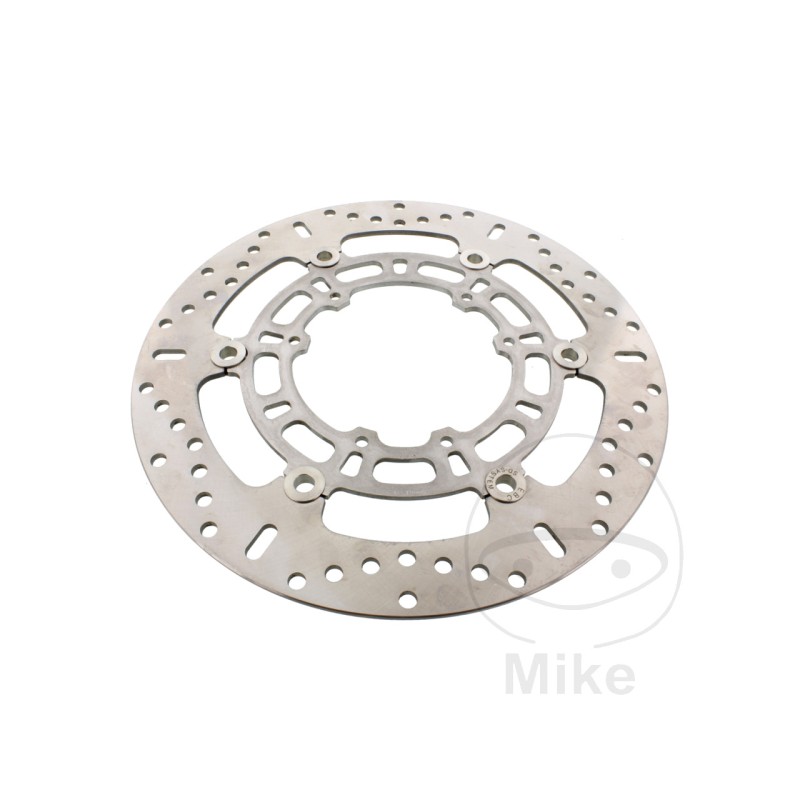

EBC Brake Disc 760.04.81

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.

Features:
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 125MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.6 MM
thickness: 4mm
VERSION: FLOATING
INSIDE DIAMETER: 108.5MM
FILLING: 0 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Aprilia RX 50 2006-2018
COMPATIBLE WITH Aprilia RX 50 Factory Euro4 2018-2021
COMPATIBLE WITH Aprilia SX 50 SM Euro4 2018-2021
COMPATIBLE WITH Aprilia SX 50 SM 2006-2018
COMPATIBLE WITH Aprilia SX 50 SM Factory Euro4 2018-2021
COMPATIBLE WITH Aprilia SX 50 SM Limited Edition 2014-2016
COMPATIBLE WITH Aprilia SXR 50 IGET 2022-2024
COMPATIBLE WITH Aprilia SXR 50 Sport IGET 2022-2024
COMPATIBLE WITH Derbi Senda 125 R Baja 2007-2014
COMPATIBLE WITH Derbi Senda 125 SM Baja 2007-2009
COMPATIBLE WITH Derbi Senda 50 R DRD Pro 2007-2008
COMPATIBLE WITH Derbi Senda 50 R DRD Racing 2004-2012
COMPATIBLE WITH Derbi Senda 50 R DRD X-Treme 2012-2017
COMPATIBLE WITH Derbi Senda 50 R X-Treme 2018-2021
COMPATIBLE WITH Derbi Senda 50 R X-Treme Euro4 2022
COMPATIBLE WITH Derbi Senda 50 RR X-Treme 2021-2022
COMPATIBLE WITH Derbi Senda 50 SM DRD Pro 2007-2016
COMPATIBLE WITH Derbi Senda 50 SM DRD Racing 2004-2017
COMPATIBLE WITH Derbi Senda 50 SM DRD X-Treme 2014-2017
COMPATIBLE WITH Derbi Senda 50 SM DRD X-Treme LTD 2014-2017
COMPATIBLE WITH Derbi Senda 50 SM Limited 2018-2021
COMPATIBLE WITH Derbi Senda 50 SM Limited Euro4 2022
COMPATIBLE WITH Derbi Senda 50 SM Racing 2018-2021
COMPATIBLE WITH Derbi Senda 50 SM Racing Euro4 2022
COMPATIBLE WITH Derbi Senda 50 SM X-Treme 2018-2021
COMPATIBLE WITH Derbi Senda 50 SM X-Treme Euro4 2022
