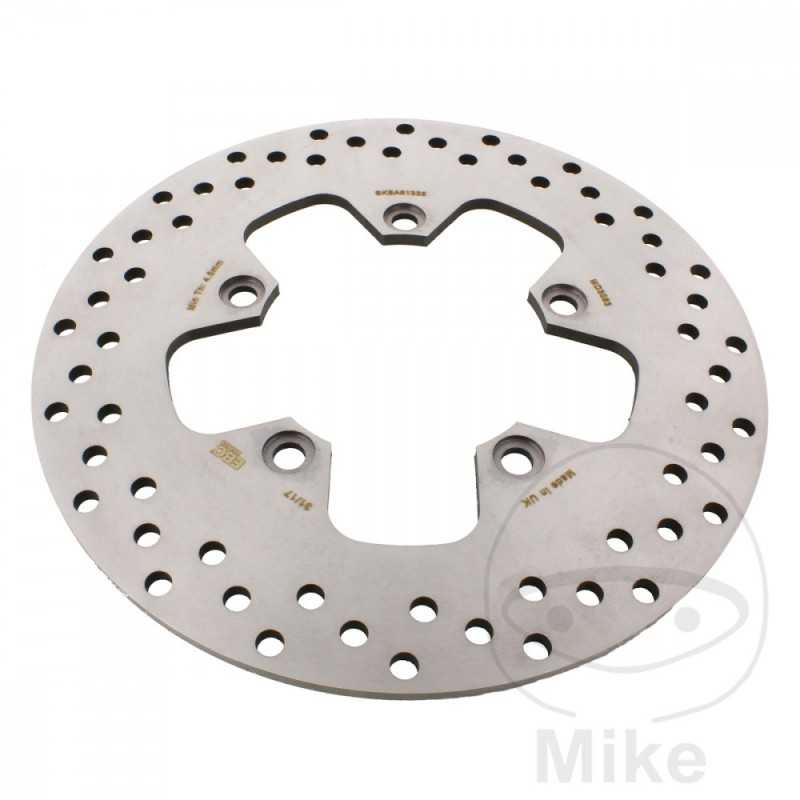

EBC BRAKE DISK 760.04.69
€117.12
Tax included
EBC brake discs. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 126 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.3MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K2 Bastidores: BN1111 henceforth0100001-BN1111 henceforth0107357 2002
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K3 Bastidores: BN1111 henceforth0107358-BN1111 henceforth0110569 2003
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K4 Bastidores: BN1111 henceforth0110570-BN1111 henceforth0112803 2004
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K5 Bastidores: BN1111 henceforth0112804-BN1111 henceforth0114964 2005
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K6 Bastidores: BN1111 henceforth0114965-BN1111 henceforth0117192 2006-2007
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K2 Bastidores: BN2111 henceforth0100001-- 2002
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K3 Bastidores: BN2111 henceforth0100001-- 2003
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K4 Bastidores: BN2111 henceforth0100001-- 2004
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K5 Bastidores: BN2111 henceforth0100001-- 2005
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 126 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.3MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K2 Bastidores: BN1111 henceforth0100001-BN1111 henceforth0107357 2002
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K3 Bastidores: BN1111 henceforth0107358-BN1111 henceforth0110569 2003
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K4 Bastidores: BN1111 henceforth0110570-BN1111 henceforth0112803 2004
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K5 Bastidores: BN1111 henceforth0112804-BN1111 henceforth0114964 2005
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K6 Bastidores: BN1111 henceforth0114965-BN1111 henceforth0117192 2006-2007
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K2 Bastidores: BN2111 henceforth0100001-- 2002
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K3 Bastidores: BN2111 henceforth0100001-- 2003
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K4 Bastidores: BN2111 henceforth0100001-- 2004
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K5 Bastidores: BN2111 henceforth0100001-- 2005
760.04.69
10 Items
Data sheet
- VERSION
- RIGID
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 260 MM
- CIRCLE MEASUREMENT
- 126MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 126MM
- THICKNESS
- 5.3MM
