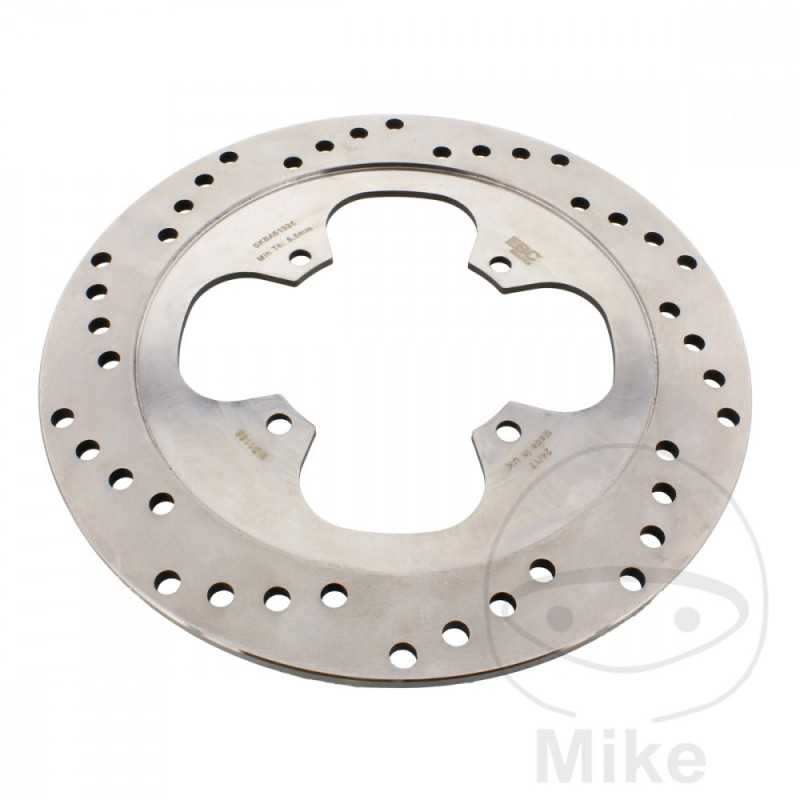

EBC BRAKE DISK 760.04.68

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.3 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 2 Bastidores: JH2 RC46A-2M400001-JH2 RC46A-2M499999 2002
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 3 Bastidores: JH2 RC46A-3M500001-JH2 RC46A-3M599999 2003
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 4 Bastidores: JH2 RC46A-4M600001-JH2 RC46A-4M699999 2004
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 5 Bastidores: JH2 RC46A-5M700001-- 2005
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 6 Bastidores: JH2 RC46A-6M800001-JH2 RC46A-6M999999 2006-2007
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 8 Bastidores: JH2 RC46A-8K010001-- 2008
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 8 Bastidores: JH2 RC46A-8M000001-- 2008
Honda VFR 800 109 CV, 80 kw 4cil. RC46A 9 Bastidores: --- 2009-2010
Honda VFR 800 FI 106/98 CV, 78/72 kw 4cil. RC46D 1 Bastidores: JH2 RC46D-1M300001-- 2001
Honda VFR 800 FI 106/98 CV, 78/72 kw 4cil. RC46D Y Bastidores: JH2 RC46D-YM200001-- 2000
Honda VFR 800 FI 98 CV, 72 kw 4cil. RC46A W Bastidores: JH2 RC46A-WM000001-- 1998
Honda VFR 800 FI 98 CV, 72 kw 4cil. RC46B W Bastidores: JH2 RC46B-WM000001-- 1998
Honda VFR 800 FI 98 CV, 72 kw 4cil. RC46B X Bastidores: JH2 RC46B-XM100001-- 1999
Honda VFR 800 FI Jubi Modell 98 CV, 72 kw 4cil. RC46B X Bastidores: JH2 RC46B-XM150001-- 1999
