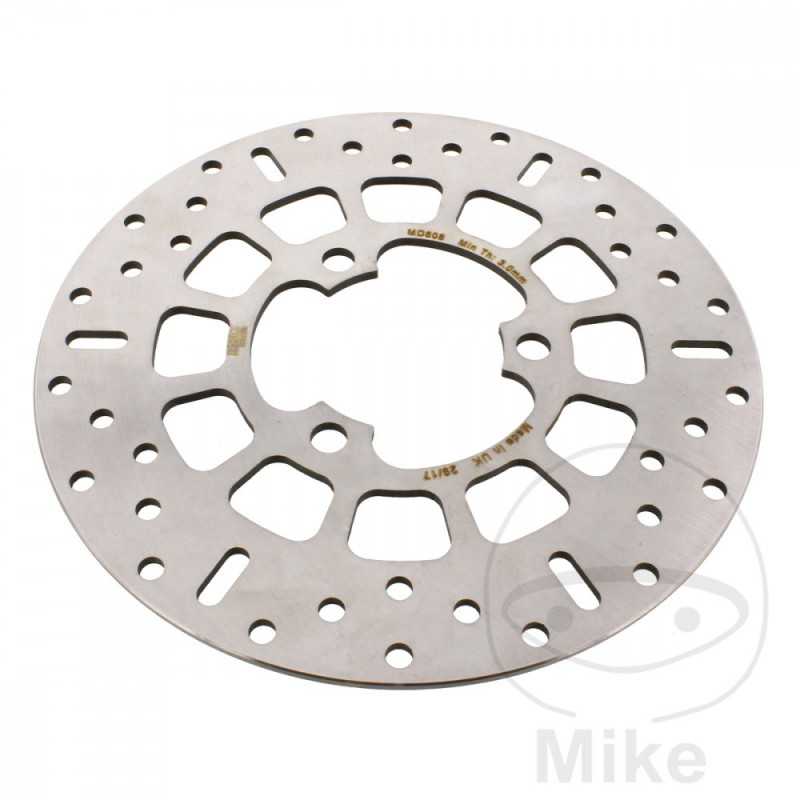

EBC BRAKE DISK 760.04.65

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 218MM
INSIDE DIAMETER: 62.2MM
CIRCLE SIZE: 80 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Derbi Mulhacen 125 Speichenrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: --VTHMS1A1A7N001790 2007
Derbi Mulhacen 125 Speichenrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: VTHMS1A1A7N001791-- 2007-2010
Derbi Senda 125 Cross City 12 CV, 8,8 kw 1cil. SC2D1B/SC2E1B Bastidores: --- 2008-2016
Derbi Senda 125 R 12 CV, 9 kw 1cil. SC1B1A Bastidores: --- 2004
Derbi Senda 125 R 12 CV, 9 kw 1cil. SC1B1A Bastidores: VTHSC1B1A5H270708-- 2005-2006
Derbi Senda 125 R Baja 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 125 R Baja 12 CV, 8,8 kw 1cil. SC1E1A Bastidores: --- 2010-2014
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2B1A Bastidores: --- 2004
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2B1A Bastidores: VTHSC2B1A5H269375-- 2005-2006
Derbi Senda 125 SM Baja 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 125 SM Baja 12 CV, 8,8 kw 1cil. SC1E1A Bastidores: --- 2010
Derbi Senda 125 SM Baja 12 CV, 8,8 kw 1cil. SC2E1A Bastidores: --- 2011-2014
Derbi Senda 125 Terra 15 CV, 11 kw 1cil. TS1A1A Bastidores: VTHTS1A1A8H384751-- 2008-2014
Derbi Senda 125 Terra Adventure 15 CV, 11 kw 1cil. TS1A2B Bastidores: VTHTS1A2B8H407288-- 2008-2016
Derbi Senda 50 R DRD Racing 2,9 CV, 2,1 kw 1cil. SR1D2B Bastidores: VTHSR1D2B7H358293-- 2007-2010
Derbi Senda 50 R DRD Racing 3,2 CV, 2,3 kw 1cil. SR1A2B Bastidores: --- 2004-2005
Derbi Senda 50 R DRD Racing 3,2 CV, 2,3 kw 1cil. SR1D2B Bastidores: VTHSR1D2B7H358293-- 2005-2006
Derbi Senda 50 SM DRD Pro 1cil. SA2A1A Bastidores: --- 2009-2016
Derbi Senda 50 SM DRD Pro 2,9 CV, 2,1 kw 1cil. SA2A1A Bastidores: --- 2007-2008
Derbi Senda 50 SM DRD Racing 2,9 CV, 2,1 kw 1cil. SR2D2B Bastidores: --- 2007-2010
Derbi Senda 50 SM DRD Racing 3,2 CV, 2,3 kw 1cil. SR2A2B Bastidores: VTHSR2A2B5H286719-- 2004-2005
Derbi Senda 50 SM DRD Racing 3,2 CV, 2,3 kw 1cil. SR2D2B Bastidores: --- 2005-2006
FBMondial HPS 125 i ABS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2020-2022
FBMondial HPS 125 i CBS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2017-2019
FBMondial HPS 125 i Limited Edition CBS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2019
FBMondial SMX 125 i Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2017-2021
