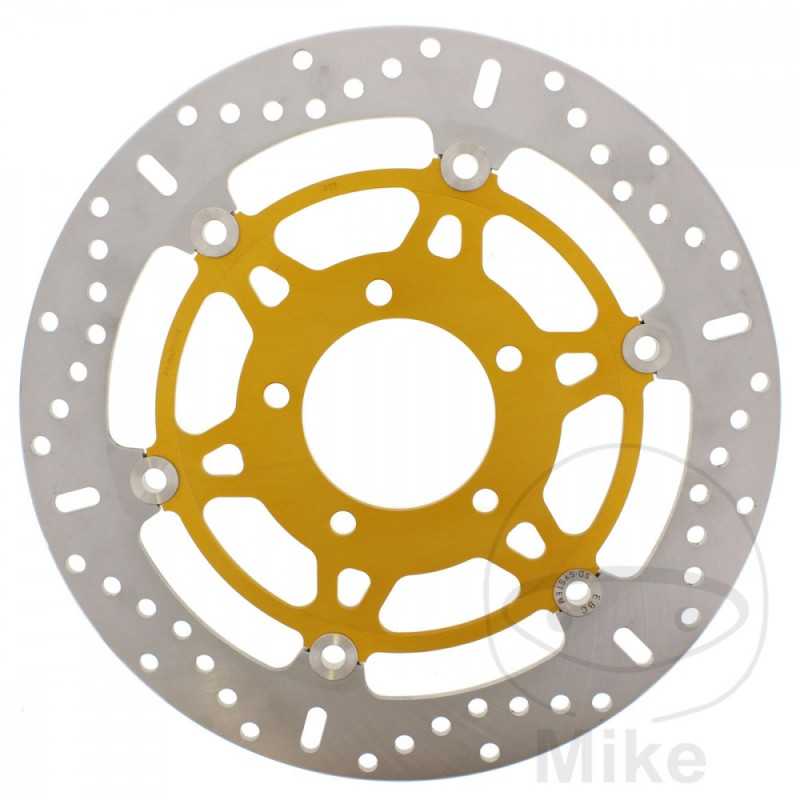

EBC BRAKE DISK 760.03.89

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 78.3MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Thunderbird 1600 85 CV, 63 kw 2cil. B16BA Bastidores: SMTTNB1097 --SMTTNB1097 - 2009-2013
Triumph Thunderbird 1600 ABS 85 CV, 63 kw 2cil. B16BA Bastidores: SMTTNB1197 --SMTTNB1197 - 2010-2017
Triumph Thunderbird 1700 Commander ABS 94 CV, 69 kw 2cil. B17 Bastidores: SMTTNB15C7 --SMTTNB15C7 - 2014-2018
Triumph Thunderbird 1700 LT ABS 94 CV, 69 kw 2cil. B17 Bastidores: SMTTNB17C7 --SMTTNB17C7 - 2014-2016
Triumph Thunderbird 1700 LT ABS 94 CV, 69 kw 2cil. BF01 Bastidores: 1 --1 - 2017-2018
Triumph Thunderbird 1700 Nightstorm ABS 98 CV, 72 kw 2cil. B16BA Bastidores: SMTTNB13C7 --SMTTNB13C7 - 2015-2016
Triumph Thunderbird 1700 Nightstorm ABS 98 CV, 72 kw 2cil. BK01 Bastidores: 1 --1 - 2017
Triumph Thunderbird 1700 Storm 98 CV, 72 kw 2cil. B16BA Bastidores: SMTTNB12C7 --SMTTNB12C7 - 2011-2013
Triumph Thunderbird 1700 Storm ABS ABS 98 CV, 72 kw 2cil. B16BA Bastidores: SMTTNB13C7 --SMTTNB13C7 - 2011-2016
Triumph Thunderbird 1700 Storm ABS ABS 98 CV, 72 kw 2cil. BK01 Bastidores: 1 --1 - 2017-2018
