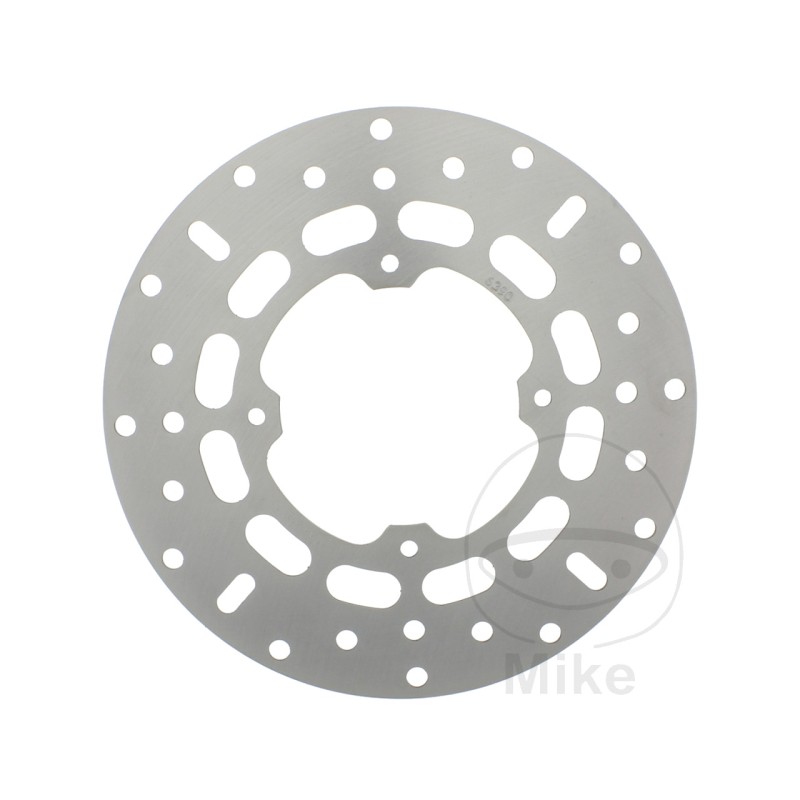

EBC Brake Disc 760.03.81

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.

Features:
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 106MM
CIRCLE SIZE: 106 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.4 MM
thickness: 3mm
VERSION: RIGID
INSIDE DIAMETER: 88.2MM
thickness: 3mm
FILLING: 0 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Honda CRF 125 F 17/14 pulgadas 2014-2021
COMPATIBLE WITH Honda CRF 125 F 17/14 pulgadas 2022-2026
COMPATIBLE WITH Honda CRF 125 FB 19/16 pulgadas 2014-2026
