EBC BRAKE DISK 760.03.30

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

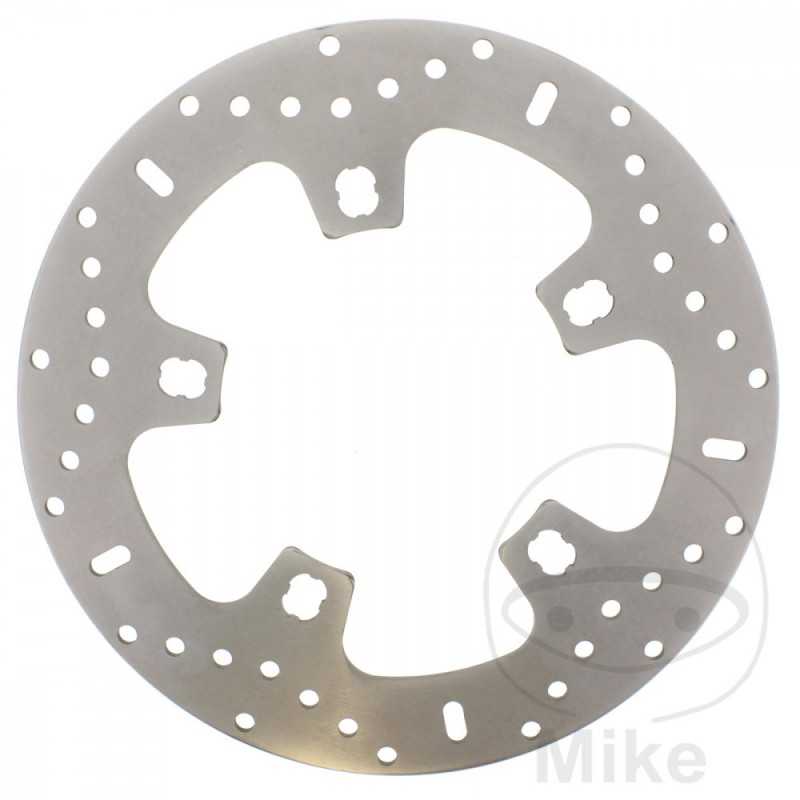

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 139.2MM
CIRCLE SIZE: 170 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 13.9
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FLHR 1690 Road King ABS 87 CV, 64 kw 2cil. FBM FL3 Bastidores: --- 2016
Harley Davidson FLHR 1745 Road King ABS 90 CV, 66 kw 2cil. FBC FL3 Bastidores: --- 2017
Harley Davidson FLHTCU 1690 Electra Glide Ultra Classic ABS 87 CV, 64 kw 2cil. KSL FL3 Bastidores: --- 2014-2016
Harley Davidson FLHTK 1690 Electra Glide Limited ABS 87 CV, 64 kw 2cil. KEL FL3 Bastidores: --- 2015-2016
Harley Davidson FLHTK 1745 Electra Glide Ultra Limited ABS 91 CV, 67 kw 2cil. KED FL3 Bastidores: --- 2017
Harley Davidson FLHTK 1868 Ultra Limited ABS 88 CV, 65 kw 2cil. KEF Bastidores: --- 2021-2022
Harley Davidson FLHTK 1868 Ultra Limited ABS 90 CV, 66 kw 2cil. KEF Bastidores: --- 2019-2020
Harley Davidson FLHTKL 1690 Electra Glide Limited Low ABS 87 CV, 64 kw 2cil. KKL FL3 Bastidores: --- 2015-2016
Harley Davidson FLHTKL 1745 Electra Glide Ultra Limited Low ABS 91 CV, 67 kw 2cil. KKD FL3 Bastidores: --- 2017
Harley Davidson FLHTKL 1868 Electra Glide Ultra Limited Low ABS 90 CV, 66 kw 2cil. KKF Bastidores: --- 2019
Harley Davidson FLHX 1690 Street Glide ABS 87 CV, 64 kw 2cil. KBM FL3 Bastidores: --- 2014
Harley Davidson FLHXS 1690 Street Glide Special ABS 87 CV, 64 kw 2cil. KRM FL3 Bastidores: --- 2015-2016
Harley Davidson FLHXS 1745 Street Glide Special ABS 90 CV, 66 kw 2cil. KRC FL3 Bastidores: --- 2017
Harley Davidson FLHXS 1868 Street Glide Special ABS 90 CV, 66 kw 2cil. KRP Bastidores: --- 2019-2021
Harley Davidson FLHXS 1868 Street Glide Special ABS 94 CV, 69 kw 2cil. KRP Bastidores: --- 2022
Harley Davidson FLTRU 1690 Road Glide Ultra ABS 87 CV, 64 kw 2cil. KG FL3 Bastidores: --- 2016
Harley Davidson FLTRU 1745 Road Glide Ultra ABS 91 CV, 67 kw 2cil. KGC FL3 Bastidores: --- 2018
Harley Davidson FLTRU 1745 Road Glide Ultra ABS 91 CV, 67 kw 2cil. KGD FL3 Bastidores: --- 2017
Harley Davidson FLTRU 1868 Road Glide Ultra ABS 90 CV, 66 kw 2cil. KGF FL3 Bastidores: --- 2019
Harley Davidson FLTRXS 1690 Road Glide Special ABS 87 CV, 64 kw 2cil. KTM FL3 Bastidores: --- 2015-2016
Harley Davidson FLTRXS 1745 Road Glide Special ABS 90 CV, 66 kw 2cil. KTC FL3 Bastidores: --- 2017-2018
Harley Davidson FLTRXS 1868 Road Glide Special ABS 90 CV, 66 kw 2cil. KTP Bastidores: --- 2021
Harley Davidson FLTRXS 1868 Road Glide Special ABS 90 CV, 66 kw 2cil. KTP FL3 Bastidores: --- 2019-2020
Harley Davidson FLTRXS 1868 Road Glide Special ABS 94 CV, 69 kw 2cil. KTP Bastidores: --- 2022
