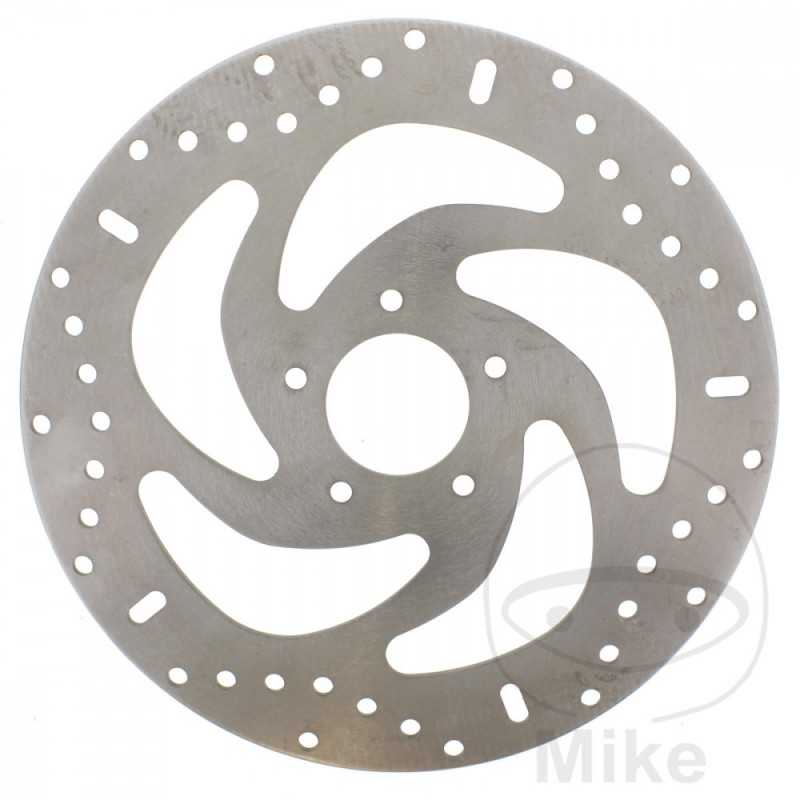

EBC brake discs. MADE IN UK. Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life. The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear. - Rigid brake disc. - manufactured from low carbon HPSR rolled steel. - perforated braking surface with optimized hole pattern. - radial plant. - Galvanized to protect against corrosion. - EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads. - Independent design. OUTSIDE DIAMETER: 300MM INSIDE DIAMETER: 56.4MM CIRCLE SIZE: 82.5 MM HOLES QUANTITY: 5 HOLE DIAMETER: 8.5 MM thickness: 5mm VERSION: RIGID APPLICATIONS OF THIS PRODUCT: According to the data provided by the manufacturer, this article is compatible with the following brands, models and years: Harley Davidson FLDE 1745 Softail Deluxe ABS 87/45 CV, 64/33 kw 2cil. YCJ ST1 Bastidores: --- 2018-2020 Harley Davidson FLHC 1745 Heritage Softail Classic ABS 87 CV, 64 kw 2cil. YAJ Bastidores: --- 2021-2022 Harley Davidson FLHC 1745 Heritage Softail Classic ABS 87/45 CV, 64/33 kw 2cil. YAJ ST1 Bastidores: --- 2018-2019 Harley Davidson FLHCS 1868 ANV Heritage Softail Classic Anniversary ABS 94 CV, 69 kw 2cil. YPK ST1 Bastidores: --- 2018 Harley Davidson FLHCS 1868 Heritage Softail Classic ABS 94 CV, 69 kw 2cil. YBK ST1 Bastidores: --- 2018-2020 Harley Davidson FLS 1690 Softail Slim ABS 46 CV, 34 kw 2cil. JRV FS2 Bastidores: --- 2015-2016 Harley Davidson FLS 1690 Softail Slim ABS 75/46 CV, 55/34 kw 2cil. JRV FS2 Bastidores: --- 2017 Harley Davidson FLS 1690 Softail Slim ABS 79 CV, 58 kw 2cil. JRV FS2 Bastidores: --- 2015-2016 Harley Davidson FLSL 1745 Softail Slim ABS 87/45 CV, 64/33 kw 2cil. YDJ Bastidores: --- 2021 Harley Davidson FLSL 1745 Softail Slim ABS 87/45 CV, 64/33 kw 2cil. YDJ ST1 Bastidores: --- 2018-2020 Harley Davidson FLSTC 1690 Heritage Softail Classic ABS 75 CV, 55 kw 2cil. BWV FS2 Bastidores: --- 2015-2016 Harley Davidson FLSTC 1690 Heritage Softail Classic ABS 75/46 CV, 55/34 kw 2cil. BWV FS2 Bastidores: --- 2017 Harley Davidson FLSTN 1690 Softail Deluxe ABS 48 CV, 34 kw 2cil. JDV FS2 Bastidores: --- 2016 Harley Davidson FLSTN 1690 Softail Deluxe ABS 75/46 CV, 55/34 kw 2cil. JDV FS2 Bastidores: --- 2017 Harley Davidson FLSTN 1690 Softail Deluxe ABS 79 CV, 58 kw 2cil. JDV FS2 Bastidores: --- 2015-2016 Harley Davidson FXBB 1745 Softail Street Bob ABS 87/45 CV, 64/33 kw 2cil. YJJ ST1 Bastidores: --- 2018-2020 Harley Davidson FXBBS 1868 Softail Street Bob ABS 95 CV, 70 kw 2cil. YYK Bastidores: --- 2021-2022 Harley Davidson FXLR 1745 Softail Low Rider ABS 87/45 CV, 64/33 kw 2cil. YNJ ST1 Bastidores: --- 2018-2020 Harley Davidson FXST 1745 Softail Standard ABS 45 CV, 33 kw 2cil. BVJ Bastidores: --- 2021-2022 Harley Davidson FXST 1745 Softail Standard ABS 87 CV, 64 kw 2cil. BVJ Bastidores: --- 2020-2022 Harley Davidson XL 1200 C Sportster Custom ABS 46 CV, 34 kw 2cil. CT3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 C Sportster Custom ABS 67 CV, 49 kw 2cil. CT3 XL2 Bastidores: --- 2014 Harley Davidson XL 1200 C Sportster Custom ABS 68 CV, 50 kw 2cil. CT3 XL2 Bastidores: --- 2015-2016 Harley Davidson XL 1200 C Sportster Custom ABS 68/46 CV, 50/34 kw 2cil. CT3 XL2 Bastidores: --- 2017-2020 Harley Davidson XL 1200 CA Sportster Custom Limited Edition A ABS 46 CV, 34 kw 2cil. LJ3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 CA Sportster Custom Limited Edition A ABS 68 CV, 50 kw 2cil. LJ3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 CB Sportster Custom Limited Edition B ABS 34 CV, 25 kw 2cil. LK3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 CB Sportster Custom Limited Edition B ABS 68 CV, 50 kw 2cil. LK3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 CB Sportster Custom Limited Edition B ABS 68/46 CV, 50/34 kw 2cil. LK3 XL2 Bastidores: --- 2017 Harley Davidson XL 1200 CX Sportster Roadster ABS 67/46 CV, 49/34 kw 2cil. LM3 XL2 Bastidores: --- 2017-2020 Harley Davidson XL 1200 NS Sportster Iron ABS 67 CV, 49 kw 2cil. LP3 Bastidores: --- 2019 Harley Davidson XL 1200 T Sportster Superlow ABS 46 CV, 34 kw 2cil. LL3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 T Sportster Superlow ABS 68 CV, 50 kw 2cil. LL3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 T Sportster Superlow ABS 68/46 CV, 50/34 kw 2cil. LL3 XL2 Bastidores: --- 2017-2020 Harley Davidson XL 1200 V Sportster Seventy-Two ABS 46 CV, 34 kw 2cil. LF3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 V Sportster Seventy-Two ABS 67 CV, 49 kw 2cil. LF3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 X Sportster Forty Eight ABS 46 CV, 34 kw 2cil. LC3 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 1200 X Sportster Forty Eight ABS 67 CV, 49 kw 2cil. LC3 XL2 Bastidores: --- 2015-2016 Harley Davidson XL 1200 X Sportster Forty Eight ABS 67/46 CV, 49/34 kw 2cil. LC3 XL2 Bastidores: --- 2017-2019 Harley Davidson XL 1200 X Sportster Forty Eight ABS 68 CV, 50 kw 2cil. LC3 XL2 Bastidores: --- 2014 Harley Davidson XL 1200 X Sportster Forty Eight Anniversary ABS 67/46 CV, 49/34 kw 2cil. LN3 XL2 Bastidores: --- 2018 Harley Davidson XL 1200 XS Sportster Forty Eight Special ABS 67/46 CV, 49/34 kw 2cil. LR3 XL2 Bastidores: --- 2019 Harley Davidson XL 883 L Sportster Super Low ABS 45 CV, 33 kw 2cil. CR2 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 883 L Sportster Super Low ABS 53 CV, 39 kw 2cil. CR2 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 883 L Sportster Super Low ABS 53/44 CV, 39/32 kw 2cil. CR2 XL2 Bastidores: --- 2017-2020 Harley Davidson XL 883 N Sportster Iron 45 CV, 33 kw 2cil. LE2 XL2 Bastidores: --- 2014 Harley Davidson XL 883 N Sportster Iron 53 CV, 39 kw 2cil. LE2 XL2 Bastidores: --- 2014 Harley Davidson XL 883 N Sportster Iron ABS 45 CV, 33 kw 2cil. LE2 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 883 N Sportster Iron ABS 52/44 CV, 38/32 kw 2cil. LE2 XL2 Bastidores: --- 2017-2020 Harley Davidson XL 883 N Sportster Iron ABS 53 CV, 39 kw 2cil. LE2 XL2 Bastidores: --- 2014-2016 Harley Davidson XL 883 R Sportster Roadster ABS 45 CV, 33 kw 2cil. CS2 XL2 Bastidores: --- 2014-2015 Harley Davidson XL 883 R Sportster Roadster ABS 53 CV, 39 kw 2cil. CS2 XL2 Bastidores: --- 2014-2015
Reference 760.03.29
Data sheet
EXTERNAL DIAMETER 300 MM CIRCLE MEASUREMENT 82.5MM HOLE DIAMETER 8.5 MM INSIDE DIAMETER 82.5MM VERSION RIGID QUANTITY OF HOLES 5 THICKNESS 5 MM
