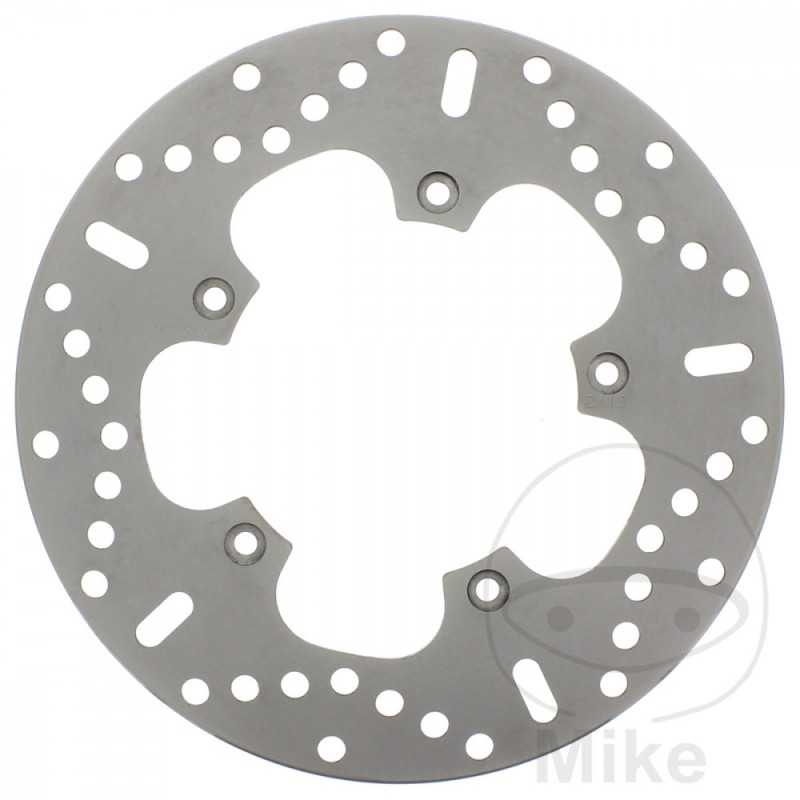

EBC BRAKE DISK 760.03.20

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 102.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.8MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MBK TZR 50 XPower 1cil. RA03 5WX2 Bastidores: RA032000 henceforth01920-- 2003-2004
Yamaha TZR 50 1,8/8,1 CV, 1,3/5,94 kw 1cil. RA031 5WX1 Bastidores: RA031 henceforth04972-- 2003
Yamaha TZR 50 1,8/8,1 CV, 1,3/5,94 kw 1cil. RA031 5WX5 Bastidores: RA031 henceforth08699-- 2004
Yamaha TZR 50 1,8/8,1 CV, 1,3/5,94 kw 1cil. RA031 5WXA Bastidores: RA031 henceforth17569-- 2005
Yamaha TZR 50 1,8/8,1 CV, 1,3/5,94 kw 1cil. RA031 5WXG Bastidores: RA031 henceforth26490-- 2006
Yamaha TZR 50 1,8/8,1 CV, 1,3/5,94 kw 1cil. RA033 5WXL Bastidores: RA033 henceforth00019-- 2007
Yamaha TZR 50 2,7 CV, 2 kw 1cil. RA033 1HD1 Bastidores: RA033 henceforth16877-- 2011
Yamaha TZR 50 2,7 CV, 2 kw 1cil. RA033 5WXR Bastidores: RA033 henceforth08383-- 2008
Yamaha TZR 50 2,7 CV, 2 kw 1cil. RA033 5WXV Bastidores: RA033 henceforth13427-- 2009
Yamaha TZR 50 2,7 CV, 2 kw 1cil. RA033 5WXX Bastidores: RA033 henceforth14302-- 2010
Yamaha TZR 50 2,7 CV, 2 kw 1cil. RA041 2AS1 Bastidores: RA041 henceforth00129-- 2012-2016
Yamaha TZR 50 WGP Anniversary 2,7 CV, 2 kw 1cil. RA041 2AS3 Bastidores: RA041 henceforth00365-- 2012-2013
