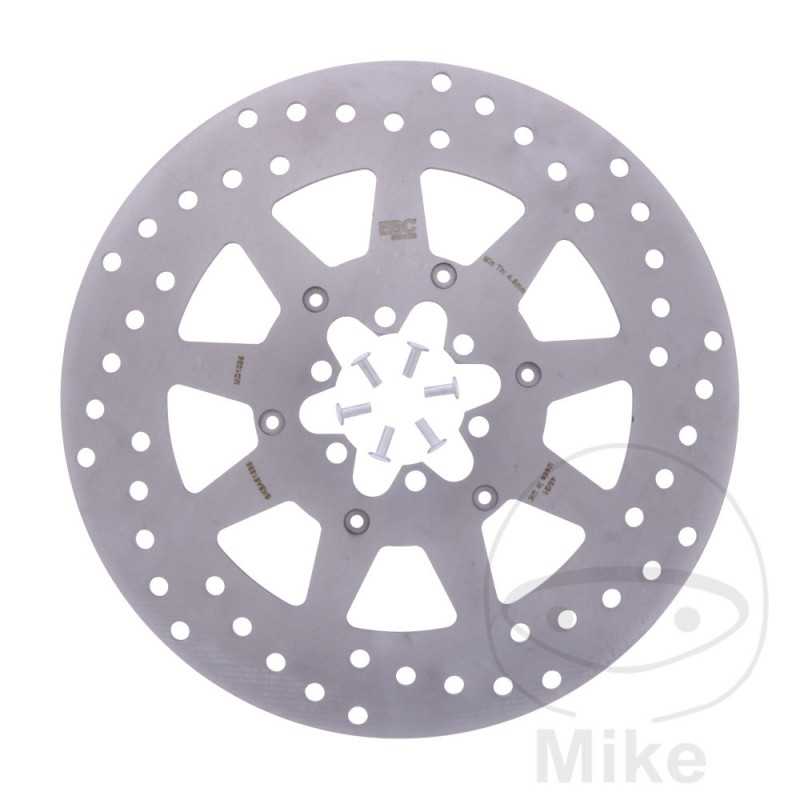

EBC BRAKE DISK 760.03.07

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing in order to function with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 276MM
INNER DIAMETER: 53MM
CIRCLE SIZE: 106 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NTV 600 Revere 55,7 CV, 41 kw 2cil. PC22 J Bastidores: PC22-2000002-PC22-2000519 1988
Honda NTV 600 Revere 55,7 CV, 41 kw 2cil. PC22 K Bastidores: PC22-2100001-PC22-2101405 1989-1990
Honda NTV 600 Revere 55,7 CV, 41 kw 2cil. PC22 M Bastidores: PC22-2300002-PC22-2300271 1991
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 J Bastidores: RC33-4000001-RC33-4000402 1988
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 K Bastidores: RC33-4100001-RC33-4100500 1989-1990
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 M Bastidores: RC33-4300001-RC33-4301265 1991-1992
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 P Bastidores: RC33-4400001-- 1993-1994
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33 P Bastidores: RC33-6000001-- 1993-1994
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33 S Bastidores: RC33-6100004-- 1995
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33C T Bastidores: RC33C-TM000001-- 1996
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33C V Bastidores: RC33C-VM100001-- 1997
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 J Bastidores: RC33-3000001-RC33-3001603 1988
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 K Bastidores: RC33-3100001-RC33-3101271 1989-1990
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 M Bastidores: RC33-3300002-RC33-3302277 1991-1992
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 P Bastidores: RC33-3400001-- 1993-1994
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 S Bastidores: RC33-3500004-- 1995
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33B T Bastidores: RC33B-TM000001-- 1996
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33B V Bastidores: RC33B-VM100001-- 1997
Honda NTV 650 Revere 53 CV, 39 kw 2cil. RC33 S Bastidores: RC33-2500003-- 1995
Honda NTV 650 Revere 53 CV, 39 kw 2cil. RC33A T Bastidores: RC33A-TM260001-- 1996
Honda NTV 650 Revere 53 CV, 39 kw 2cil. RC33A V Bastidores: RC33A-VM100001-- 1997
Honda NTV 650 Revere 57 CV, 42 kw 2cil. RC33 M Bastidores: RC33-2300005-RC33-2302187 1991-1992
Honda NTV 650 Revere 57 CV, 42 kw 2cil. RC33 P Bastidores: RC33-2400022-- 1993-1994
Honda NTV 650 Revere 60 CV, 44 kw 2cil. RC33 J Bastidores: RC33-2000016-RC33-2000355 1988
Honda NTV 650 Revere 60 CV, 44 kw 2cil. RC33 K Bastidores: RC33-2100007-RC33-2100916 1989-1990
