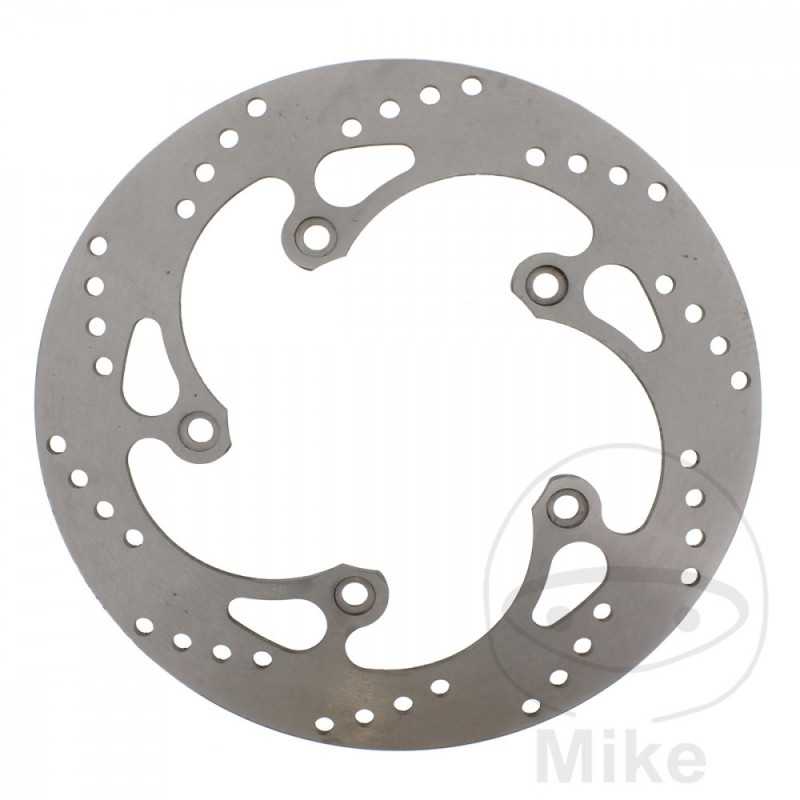

EBC BRAKE DISK 760.02.66

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 294MM
INSIDE DIAMETER: 137.2MM
CIRCLE SIZE: 160 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW K 1200 GT ABS 152 CV, 112 kw 4cil. K12S/K44 0587 Bastidores: --- 2006-2008
BMW K 1300 GT ABS 160 CV, 118 kw 4cil. K12S/K44 0538 Bastidores: --- 2009
BMW K 1300 GT Exclusive Edition ABS 160 CV, 118 kw 4cil. K12S/K44 0538 Bastidores: --- 2010-2011
