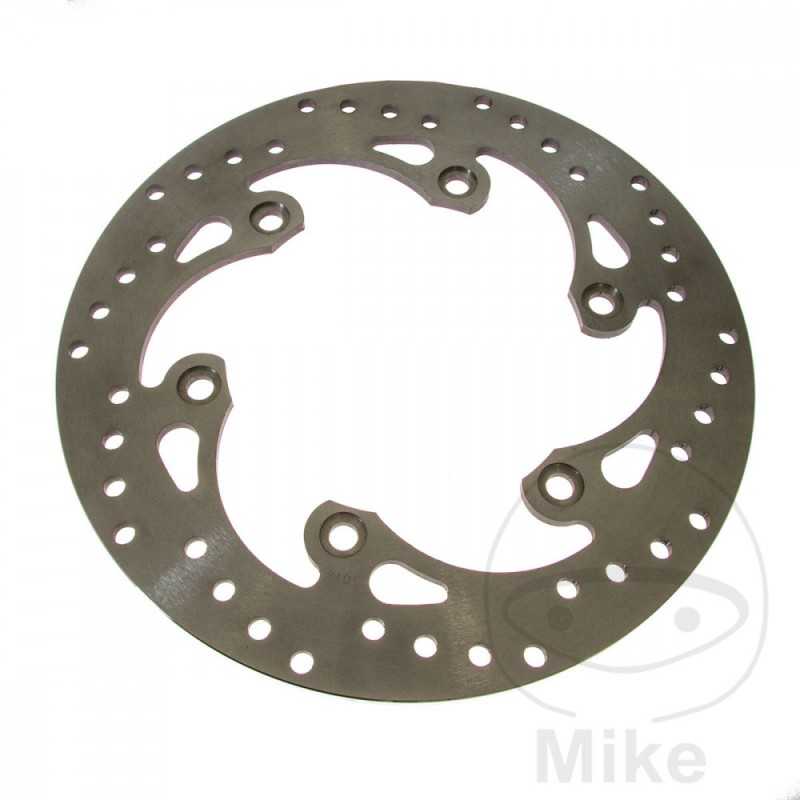

EBC BRAKE DISK 760.02.40

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30 P Bastidores: SC30-3000001-SC30-3000020 1993
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30 R Bastidores: SC30-3100001-- 1994
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30 S Bastidores: SC30-3200002-- 1995
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30C T Bastidores: SC30C-TM000001-- 1996
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30 P Bastidores: SC30-2000028-SC30-2002431 1993
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30 R Bastidores: SC30-2100008-SC30-2101753 1994
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30 S Bastidores: SC30-2200010-- 1995
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30A T Bastidores: SC30A-TM000001-- 1996
Honda CBR 1000 F 100/135 CV, 74/99 kw 4cil. SC24 K Bastidores: SC24-2000022-SC24-2005160 1989
Honda CBR 1000 F 100/135 CV, 74/99 kw 4cil. SC24 L Bastidores: SC24-2100003-SC24-2104904 1990
Honda CBR 1000 F 100/135 CV, 74/99 kw 4cil. SC24 M Bastidores: SC24-2200005-SC24-2204833 1991
Honda CBR 1000 F 100/135 CV, 74/99 kw 4cil. SC24 N Bastidores: SC24-2300011-- 1992
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C 1 Bastidores: VTM RC47C henceforth1E200001-VTM RC47C henceforth1E299999 2001
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C W Bastidores: VTM RC47C henceforthWE200002-VTM RC47C henceforthWE200361 1998
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C X Bastidores: VTM RC47C henceforthXE200061-VTM RC47C henceforthXE299999 1999
Honda NT 650 V Deauville 34 CV, 25 kw 2cil. RC47C Y Bastidores: VTM RC47C henceforthYE200001-VTM RC47C henceforthYE299999 2000
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B 1 Bastidores: VTM RC47B henceforth1E100001-VTM RC47B henceforth1E199999 2001
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B W Bastidores: VTM RC47B henceforthWE100002-VTM RC47B henceforthWE100361 1998
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B X Bastidores: VTM RC47B henceforthXE100001-VTM RC47B henceforthXE199999 1999
Honda NT 650 V Deauville 50 CV, 37 kw 2cil. RC47B Y Bastidores: VTM RC47B henceforthYE100001-VTM RC47B henceforthYE199999 2000
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A 1 Bastidores: VTM RC47A henceforth1E100001-VTM RC47A henceforth1E199999 2001
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A W Bastidores: VTM RC47A henceforthWE100003-VTM RC47A henceforthWE001743 1998
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A X Bastidores: VTM RC47A henceforthXE100362-VTM RC47A henceforthXE109999 1999
Honda NT 650 V Deauville 56 CV, 41 kw 2cil. RC47A Y Bastidores: VTM RC47A henceforthYE100001-VTM RC47A henceforthYE199999 2000
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 2 Bastidores: VTM RC47C henceforth2E140001-VTM RC47C henceforth2E199999 2002
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 3 Bastidores: VTM RC47C henceforth3E150001-VTM RC47C henceforth3E199999 2003
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 4 Bastidores: VTM RC47C henceforth4E160001-VTM RC47C henceforth4E199999 2004
Honda NT 650 V Deauville CBS 34 CV, 25 kw 2cil. RC47C 5 Bastidores: VTM RC47C henceforth5E160001-- 2005
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 2 Bastidores: VTM RC47B henceforth2E100001-VTM RC47B henceforth2E199999 2002
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 3 Bastidores: VTM RC47B henceforth3E100001-VTM RC47B henceforth3E199999 2003
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 4 Bastidores: VTM RC47B henceforth4E100001-VTM RC47B henceforth4E199999 2004
Honda NT 650 V Deauville CBS 50 CV, 37 kw 2cil. RC47B 5 Bastidores: VTM RC47B henceforth5E100001-- 2005
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 2 Bastidores: VTM RC47A henceforth2E340001-VTM RC47A henceforth2E399999 2002
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 3 Bastidores: VTM RC47A henceforth3E350001-VTM RC47A henceforth3E399999 2003
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 4 Bastidores: VTM RC47A henceforth4E360001-VTM RC47A henceforth4E399999 2004
Honda NT 650 V Deauville CBS 56 CV, 41 kw 2cil. RC47A 5 Bastidores: VTM RC47A henceforth5E370001-- 2005
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A 6 Bastidores: VTM RC52A henceforth6E000001-VTM RC52A henceforth6E009999 2006
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A 7 Bastidores: VTM RC52A henceforth7E010001-VTM RC52A henceforth7E019999 2007
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A 8 Bastidores: VTM RC52A henceforth8E020001-VTM RC52A henceforth8E029999 2008-2009
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC52A A Bastidores: VTM RC52C-AE000001-- 2010
Honda NT 700 V Deauville 65 CV, 48 kw 2cil. RC59A B Bastidores: ZDC RC59A henceforthBF010001-- 2011-2013
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52B 6 Bastidores: VTM RC52B henceforth6E000001-VTM RC52B henceforth6E009999 2006
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52B 7 Bastidores: VTM RC52B henceforth7E010001-VTM RC52B henceforth7E019999 2007
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52B 8 Bastidores: VTM RC52B henceforth8E020001-VTM RC52B henceforth8E029999 2008-2009
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC52D A Bastidores: VTM RC52D-AE000001-- 2010
Honda NT 700 VA Deauville ABS 65 CV, 48 kw 2cil. RC59B B Bastidores: ZDC RC59B henceforthBF010001-- 2011-2016
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32 S Bastidores: SC32-3000010-- 1995
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B T Bastidores: SC32B-TA000001-- 1996
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B V Bastidores: SC32B-VA000001-- 1997
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B W Bastidores: SC32B-WA105001-- 1998
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32 S Bastidores: SC32-2000010-- 1995
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A T Bastidores: SC32A-TA000001-- 1996
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A V Bastidores: SC32A-VA000001-- 1997
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A V Bastidores: SC32A-VA005001-- 1997
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A W Bastidores: SC32A-WA105001-- 1998
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A X Bastidores: 1HF SC32A-XA205001-- 1999-2000
Honda VT 1100 C3 Shadow Aero 34 CV, 25 kw 2cil. SC39C W Bastidores: 1HF SC39C-WA000001-- 1998
Honda VT 1100 C3 Shadow Aero 34 CV, 25 kw 2cil. SC39C X Bastidores: 1HF SC39C-XA100001-- 1999-2000
Honda VT 1100 C3 Shadow Aero 50 CV, 37 kw 2cil. SC39E W Bastidores: 1HF SC39E-WA000001-- 1998
Honda VT 1100 C3 Shadow Aero 50 CV, 37 kw 2cil. SC39E X Bastidores: 1HF SC39E-XA100001-- 1999-2000
Honda VT 1100 C3 Shadow Aero 57 CV, 42 kw 2cil. SC39A W Bastidores: 1HF SC39A-WA000001-- 1998
Honda VT 1100 C3 Shadow Aero 57 CV, 42 kw 2cil. SC39A X Bastidores: 1HF SC39A-XA100001-- 1999-2000
