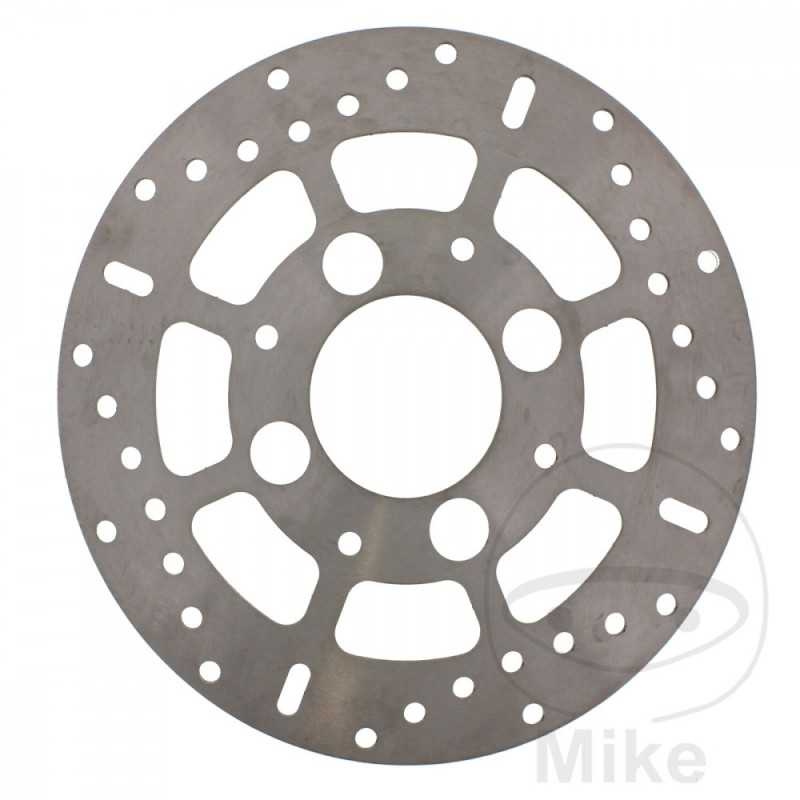

EBC BRAKE DISK 760.01.44

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 70.2MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.8MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A 9 Bastidores: ZDC SC60A henceforth9F000001-ZDC SC60A henceforth9F029999 2008-2009
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A A Bastidores: ZDC SC60A henceforthAF030001-ZDC SC60A henceforthAF049999 2010
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A B Bastidores: ZDC SC60A henceforthBF050001-ZDC SC60A henceforthBF059999 2011
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A C Bastidores: ZDC SC60A henceforthCF065001-- 2012
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A D Bastidores: ZDC SC60A henceforthDF075001-ZDC SC60A henceforthDF079999 2013
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A E Bastidores: ZDC SC60A henceforthEF085001-ZDC SC60A henceforthEF089999 2014
Honda CB 1000 R 125 CV, 92 kw 4cil. SC60A F Bastidores: ZDC SC60A henceforthEF085001-- 2015-2016
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C 9 Bastidores: ZDC SC60C henceforth9F000001-ZDC SC60C 09F029999 2008-2009
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C A Bastidores: ZDC SC60C henceforthAF030001-ZDC SC60C henceforthAF049999 2010
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C B Bastidores: ZDC SC60C henceforthBF050001-ZDC SC60C henceforthBF059999 2011
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C C Bastidores: ZDC SC60C henceforthCF065001-- 2012
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C D Bastidores: ZDC SC60C henceforthDF075001-ZDC SC60C henceforthDF079999 2013
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C E Bastidores: ZDC SC60C henceforthEF085001-ZDC SC60C henceforthEF089999 2014
Honda CB 1000 RA ABS 125 CV, 92 kw 4cil. SC60C F Bastidores: ZDC SC60C henceforthFF090001-- 2015-2016
