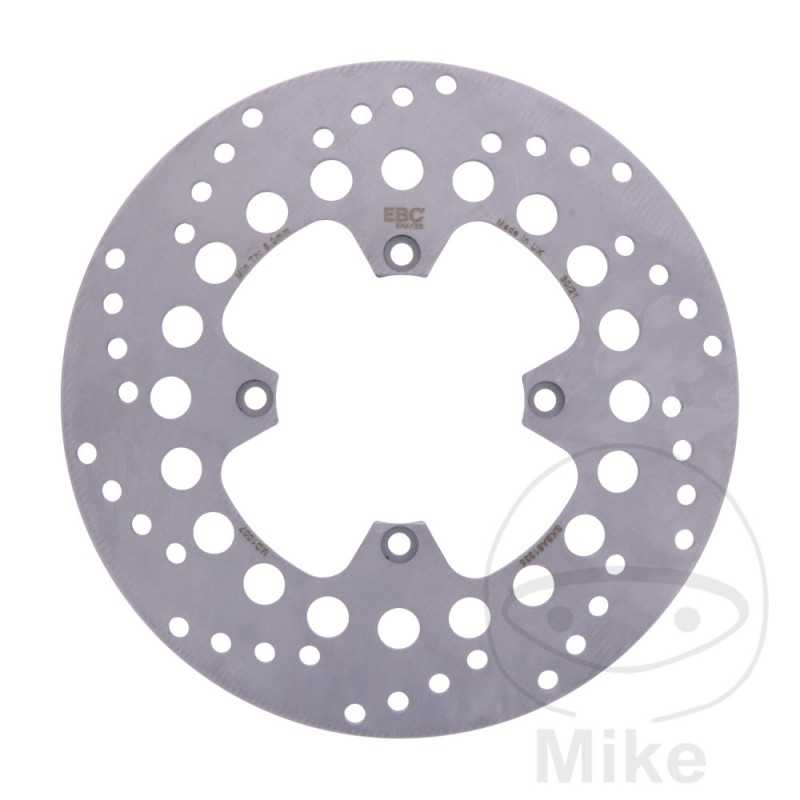

EBC BRAKE DISK 760.01.33

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 L Bastidores: RC36-2000060-RC36-2009630 1990
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 M Bastidores: RC36-2100004-RC36-2108297 1991
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 N Bastidores: RC36-2200014-RC36-2206916 1992
Honda VFR 750 F 100 CV, 74 kw 4cil. RC36 P Bastidores: RC36-2300001-RC36-2306684 1993
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36 R Bastidores: RC36-2400060-RC36-2408470 1994
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36 S Bastidores: RC36-2500001-RC36-2505150 1995
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36B T Bastidores: RC36B-TM000001-- 1996
Honda VFR 750 F 98 CV, 72 kw 4cil. RC36B V Bastidores: RC36B-VM100001-- 1997
