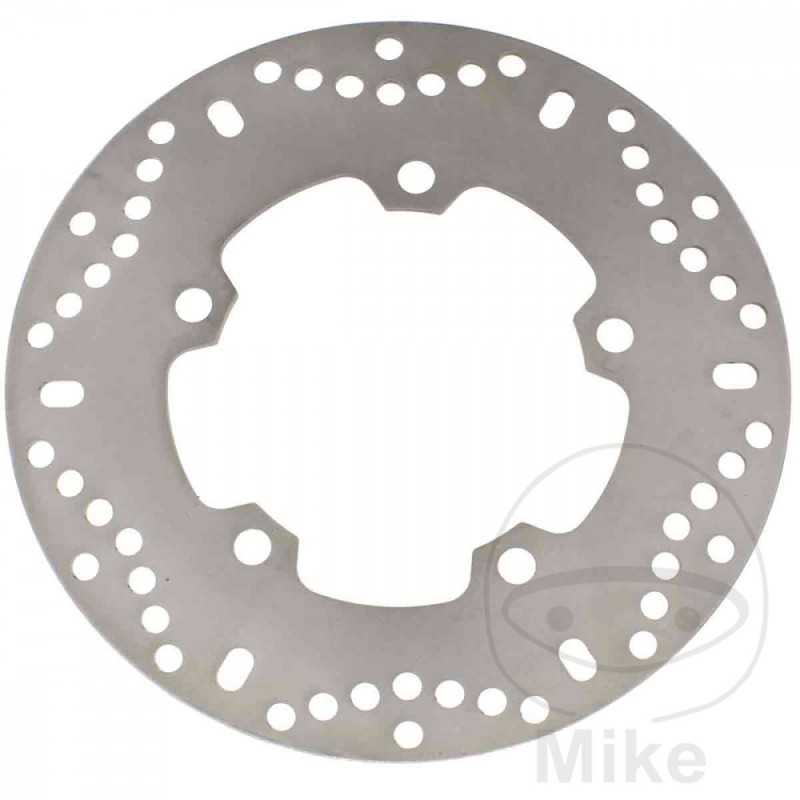

EBC BRAKE DISK 760.00.99

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT-10 1000 A /Touring Edition ABS 160 CV, 118 kw 4cil. RN458 B67E Bastidores: RN458 henceforth03193-- 2018
Yamaha MT-10 1000 A /Touring Edition ABS 160 CV, 118 kw 4cil. RN458 B67J Bastidores: RN458 henceforth05363-- 2019
Yamaha MT-10 1000 A /Touring Edition ABS 160 CV, 118 kw 4cil. RN458 B67S Bastidores: RN458 henceforth07233-- 2020
Yamaha MT-10 1000 A /Touring Edition ABS MTN1000 160 CV, 118 kw 4cil. RN458 B67S Bastidores: RN458 henceforth07233-- 2021
Yamaha MT-10 1000 A ABS 160 CV, 118 kw 4cil. RN451 B671 Bastidores: RN451 henceforth00301-- 2016
Yamaha MT-10 1000 A ABS 160 CV, 118 kw 4cil. RN458 B678 Bastidores: RN458 henceforth00301-- 2017
Yamaha MT-10 1000 A ABS MTN1000 166 CV, 122 kw 4cil. RN781 B5Y1 Bastidores: --- 2022
Yamaha MT-10 1000 SP A ABS 160 CV, 118 kw 4cil. RN455 BW81 Bastidores: RN455 henceforth00301-- 2017-2020
Yamaha MT-10 1000 SP A ABS MTN1000D 160 CV, 118 kw 4cil. RN455 BW81 Bastidores: RN455 henceforth00301-- 2021
Yamaha MT-10 1000 SP A ABS MTN1000D 166 CV, 122 kw 4cil. RN785 BGG1 Bastidores: --- 2022
Yamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY1 Bastidores: RN121 henceforth00301-- 2004
Yamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY7 Bastidores: RN121 henceforth16418-- 2005
Yamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYE Bastidores: RN126 henceforth00301-- 2006
Yamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYR Bastidores: RN126 henceforth03661-- 2006
Yamaha YZF-R1 1000 180 CV, 132 kw 4cil. RN191 4C81 Bastidores: RN191 henceforth00301-- 2007
Yamaha YZF-R1 1000 180 CV, 132 kw 4cil. RN191 4C88 Bastidores: RN191 henceforth13277-- 2008
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14B1 Bastidores: RN221 henceforth00301-- 2009
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14BC Bastidores: RN221 henceforth06659-- 2010
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14BR Bastidores: RN221 henceforth09717-- 2011
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 1KB8 Bastidores: RN225 henceforth00301-- 2012
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 1KBT Bastidores: RN225 henceforth02227-- 2013
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 2SG1 Bastidores: RN225 henceforth03557-- 2014
Yamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 2SG5 Bastidores: RN225 henceforth03779-- 2014
Yamaha YZF-R1 1000 Anniversary 182 CV, 134 kw 4cil. RN225 1KBJ Bastidores: RN225 henceforth00376-- 2012-2013
Yamaha YZF-R1 1000 SP 175 CV, 129 kw 4cil. RN129 4B11 Bastidores: RN129 henceforth00301-- 2006
Yamaha YZF-R6 600 106 CV, 78 kw 4cil. RJ052 5SL2 Bastidores: RJ052 henceforth00301-- 2003
Yamaha YZF-R6 600 117 CV, 86 kw 4cil. RJ051 5SL1 Bastidores: RJ051 henceforth00301-- 2003
Yamaha YZF-R6 600 117 CV, 86 kw 4cil. RJ091 5SLB Bastidores: RJ091 henceforth00301-- 2004
Yamaha YZF-R6 600 120 CV, 88 kw 4cil. RJ095 5SLM Bastidores: RJ095 henceforth00301-- 2005
Yamaha YZF-R6 600 120 CV, 88 kw 4cil. RJ095 5SLV Bastidores: RJ095 henceforth05856-- 2005
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SL Bastidores: RJ155 henceforth00301-- 2010
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 13SV Bastidores: RJ155 henceforth02714-- 2011
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSG Bastidores: RJ155 henceforth04386-- 2012
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 1JSU Bastidores: RJ155 henceforth05856-- 2013
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CX4 Bastidores: RJ155 henceforth07120-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXB Bastidores: RJ155 henceforth07100-- 2014
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXE Bastidores: RJ155 henceforth08279-- 2015
Yamaha YZF-R6 600 123,8 CV, 91 kw 4cil. RJ155 2CXM Bastidores: RJ155 henceforth09069-- 2016-2017
Yamaha YZF-R6 600 127 CV, 93 kw 4cil. RJ111 2C01 Bastidores: RJ111 henceforth00301-- 2006
Yamaha YZF-R6 600 127 CV, 93 kw 4cil. RJ111 2C0B Bastidores: RJ111 henceforth15305-- 2007
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13S1 Bastidores: RJ151 henceforth00301-- 2008
Yamaha YZF-R6 600 129 CV, 95 kw 4cil. RJ151 13SB Bastidores: RJ151 henceforth13030-- 2009
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN64 Bastidores: RJ271 henceforth00301-- 2017
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN6A Bastidores: RJ271 henceforth04084-- 2018
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN6H Bastidores: RJ271 henceforth06612-- 2019
Yamaha YZF-R6 600 ABS 118/48 CV, 87/35 kw 4cil. RJ271 BN6P Bastidores: RJ271 henceforth09279-- 2020
Yamaha YZF-R6 600 Anniversary 123,8 CV, 91 kw 4cil. RJ155 1JSL Bastidores: RJ155 henceforth04983-- 2012-2013
Yamaha YZF-R6 600 S Edition 127 CV, 93 kw 4cil. RJ111 2C01 Bastidores: RJ111 henceforth00301-- 2006-2007
