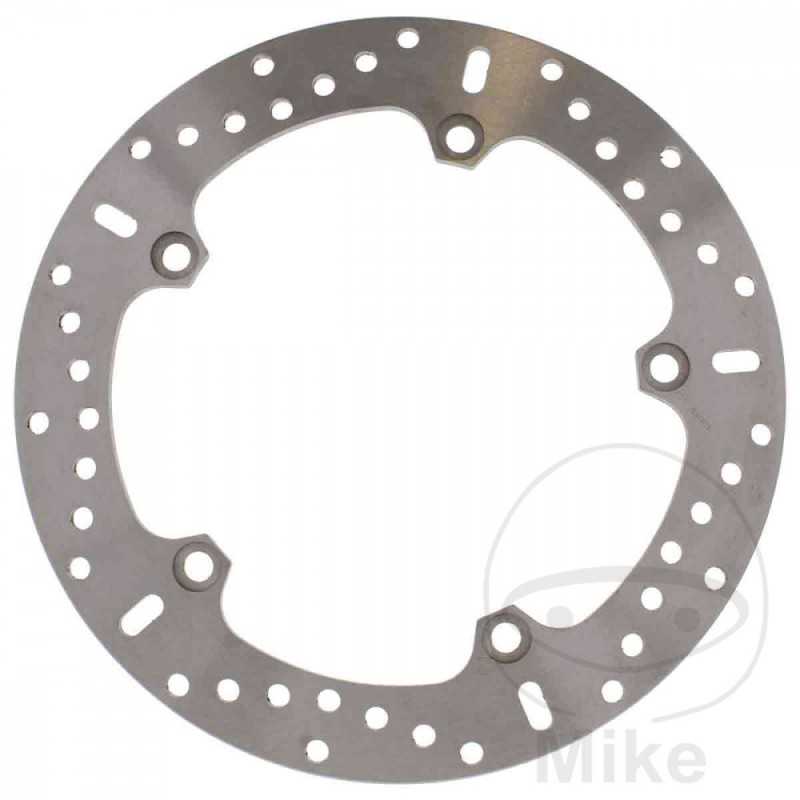

EBC BRAKE DISK 760.00.98

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 170.2MM
CIRCLE SIZE: 190 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.8MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VFR 1200 F ABS 173 CV, 127 kw 4cil. SC63A A Bastidores: JH2 SC63A-AK000001-JH2 SC63A-AK099999 2010
Honda VFR 1200 F ABS 173 CV, 127 kw 4cil. SC63A B Bastidores: JH2 SC63A-BK100001-JH2 SC63A-BK199999 2011
Honda VFR 1200 F ABS 173 CV, 127 kw 4cil. SC63A C Bastidores: JH2 SC63A-CK200001-JH2 SC63A-CK299999 2012
Honda VFR 1200 F ABS 173 CV, 127 kw 4cil. SC63A D Bastidores: JH2 SC63A-DK300001-- 2013-2014
Honda VFR 1200 F ABS 173 CV, 127 kw 4cil. SC63A F Bastidores: JH2 SC63A-FK400001-- 2015-2016
Honda VFR 1200 FD DCT ABS 173 CV, 127 kw 4cil. SC63C A Bastidores: JH2 SC63C-AK000001-JH2 SC63C-AK099999 2010
Honda VFR 1200 FD DCT ABS 173 CV, 127 kw 4cil. SC63C B Bastidores: JH2 SC63C-BK100001-JH2 SC63C-BK199999 2011
Honda VFR 1200 FD DCT ABS 173 CV, 127 kw 4cil. SC63C C Bastidores: JH2 SC63C-CK200001-JH2 SC63C-CK299999 2012
Honda VFR 1200 FD DCT ABS 173 CV, 127 kw 4cil. SC63C D Bastidores: JH2 SC63C-DK300001-- 2013-2014
Honda VFR 1200 FD DCT ABS 173 CV, 127 kw 4cil. SC63C F Bastidores: JH2 SC63C-FK400001-- 2015-2016
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC70A C Bastidores: JH2 SC70A-CK000001-JH2 SC70A-CK099999 2012
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC70A D Bastidores: JH2 SC70A-DK000001-- 2013
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC76A H Bastidores: JH2 SC76A-HK100001-- 2017
Honda VFR 1200 X Crosstourer ABS 129 CV, 95 kw 4cil. SC76A J Bastidores: JH2 SC76A-JK200001-- 2018-2021
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70C C Bastidores: JH2 SC70C-CK000001-JH2 SC70C-CK099999 2012
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70C D Bastidores: JH2 SC70C-DK100001-- 2013
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC76C H Bastidores: JH2 SC76C-HK100001-- 2017
Honda VFR 1200 XD Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC76C J Bastidores: JH2 SC76C-JK200001-- 2018-2021
Honda VFR 1200 XDL Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70G E Bastidores: JH2 SC70G-EK000001-- 2014
Honda VFR 1200 XDL Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC70G F Bastidores: JH2 SC70G-FK100001-- 2015
Honda VFR 1200 XDL Crosstourer DCT ABS 129 CV, 95 kw 4cil. SC76F G Bastidores: JH2 SC76F-GK000001-- 2016
Honda VFR 1200 XL Crosstourer ABS 129 CV, 95 kw 4cil. SC70E E Bastidores: JH2 SC70E-EK000001-- 2014
Honda VFR 1200 XL Crosstourer ABS 129 CV, 95 kw 4cil. SC70E F Bastidores: JH2 SC70E-FK100001-- 2015
Honda VFR 1200 XL Crosstourer ABS 129 CV, 95 kw 4cil. SC76E G Bastidores: JH2 SC76E-GK000001-- 2016
