EBC BRAKE DISK 760.00.95

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

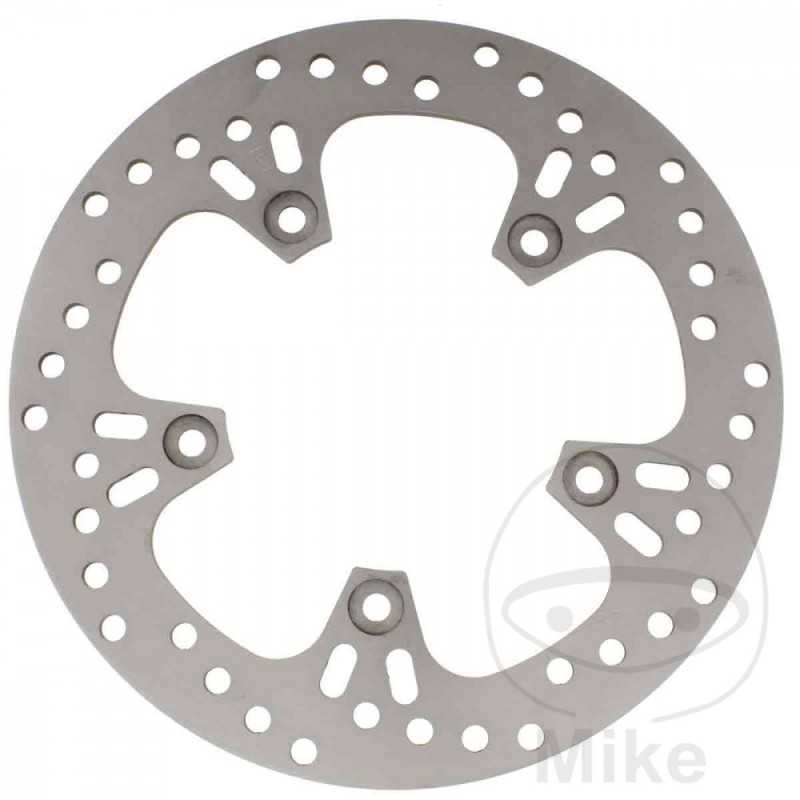

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 107.2MM
CIRCLE SIZE: 130 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Duke 690 ABS 68/34 CV, 50/25 kw 1cil. - Bastidores: --- 2012
KTM Duke 690 III 34 CV, 25 kw 1cil. - Bastidores: --- 2008-2011
KTM Duke 690 III 65 CV, 48 kw 1cil. - Bastidores: --- 2008-2011
KTM Duke 690 R 34 CV, 25 kw 1cil. - Bastidores: --- 2010-2012
KTM Duke 690 R 70 CV, 51,5 kw 1cil. - Bastidores: --- 2010-2012
KTM Super Duke 990 LC8 120 CV, 88 kw 2cil. - Bastidores: --- 2005-2011
KTM Super Duke 990 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2005-2006
KTM Super Duke 990 R LC8 120 CV, 88 kw 2cil. - Bastidores: --- 2007
KTM Super Duke 990 R LC8 125 CV, 92 kw 2cil. - Bastidores: --- 2012-2013
KTM Super Duke 990 R LC8 132 CV, 97 kw 2cil. - Bastidores: --- 2008-2011
KTM Supermoto 950 LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2006-2008
KTM Supermoto 950 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2006-2008
KTM Supermoto 950 R LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2007-2008
KTM Supermoto 950 R LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2007-2008
KTM Supermoto 990 LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2010
KTM Supermoto 990 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2010
KTM Supermoto 990 R LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 R LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 R LC8 ABS 115 CV, 85 kw 2cil. - Bastidores: --- 2012-2013
KTM Supermoto 990 R LC8 ABS 98 CV, 72 kw 2cil. - Bastidores: --- 2012-2013
KTM Supermoto 990 T LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 T LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 T LC8 ABS 115 CV, 85 kw 2cil. - Bastidores: --- 2011-2013
KTM Supermoto 990 T LC8 ABS 98 CV, 72 kw 2cil. - Bastidores: --- 2011-2013
