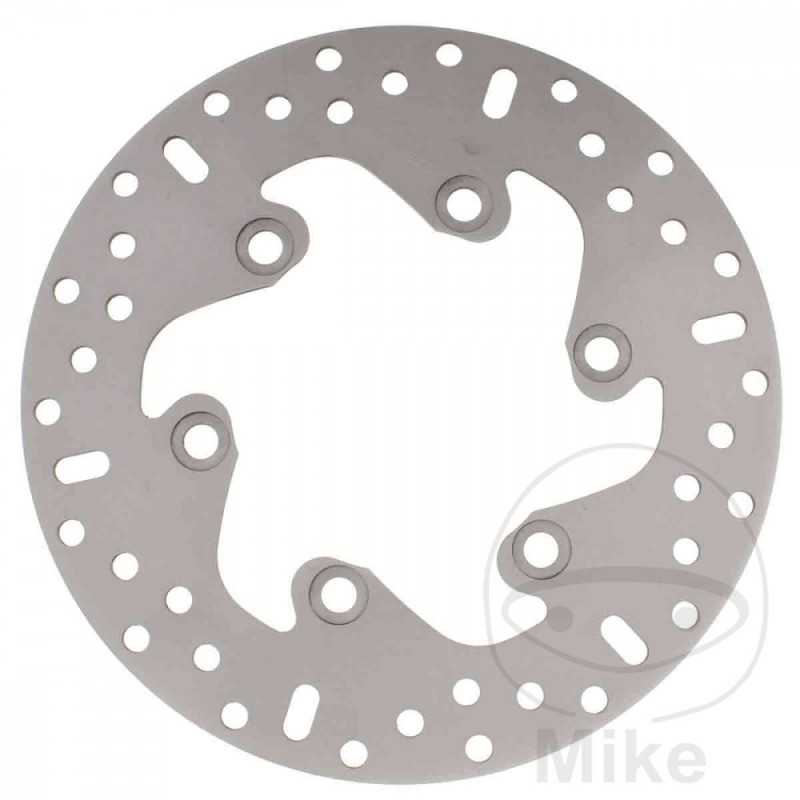

EBC BRAKE DISK 760.00.94

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 104.2MM
CIRCLE SIZE: 124 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2020-2022
KTM Duke 125 15 CV, 11 kw 1cil. - Bastidores: --- 2011-2012
KTM Duke 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2013-2021
KTM Duke 200 26 CV, 19,1 kw 1cil. - Bastidores: --- 2012
KTM Duke 200 ABS 26 CV, 19,1 kw 1cil. - Bastidores: --- 2013-2017
KTM Duke 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2013-2020
KTM Duke 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021-2022
KTM RC 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 125 ABS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
KTM RC 200 ABS 26 CV, 19 kw 1cil. - Bastidores: --- 2014-2017
KTM RC 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021-2022
KTM RC 390 R ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2019
