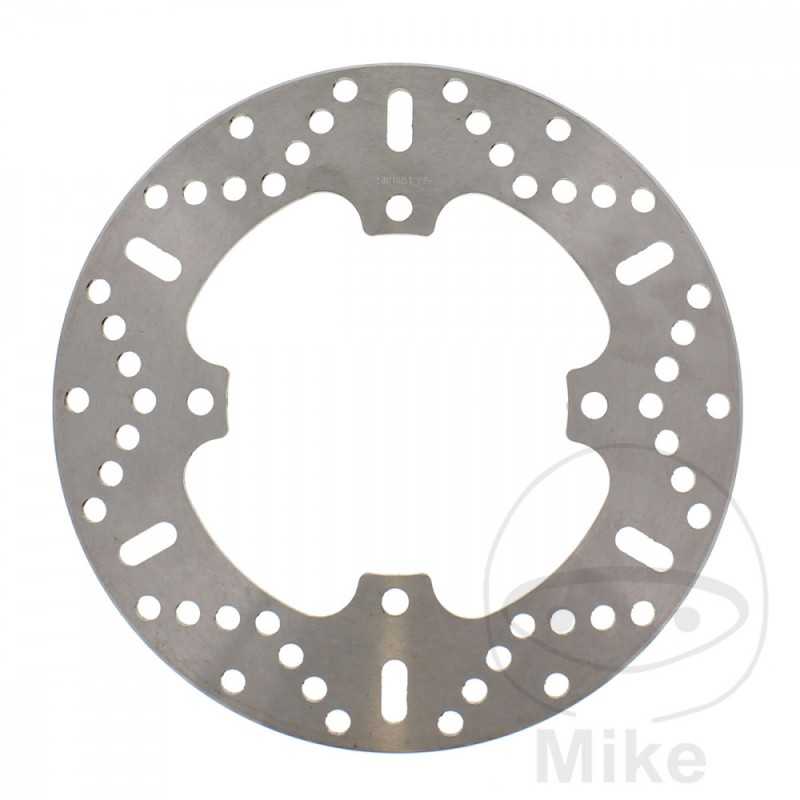

EBC BRAKE DISK 760.00.90

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 108.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati 748 748 R Sport Production 106 CV, 78 kw 2cil. H300AA Bastidores: --- 2000-2002
Ducati 748 748 S Biposto/Monoposto 98 CV, 72 kw 2cil. 748S Bastidores: --- 1997-1998
Ducati 748 748 S Biposto/Monoposto 98 CV, 72 kw 2cil. H300AA Bastidores: --- 2000-2002
Ducati 748 748 SP Sport Production 105/98 CV, 77/72 kw 2cil. 748S Bastidores: --- 1996-1997
Ducati 748 748 SP Sport Production 98 CV, 72 kw 2cil. 748S Bastidores: --- 1995
Ducati 748 748 SPS Sport Production 104/98 CV, 76/72 kw 2cil. 748S Bastidores: --- 1998
Ducati 748 748 SPS Sport Production 104/98 CV, 76/72 kw 2cil. H300AA Bastidores: --- 1999
Ducati 748 748 Strada Biposto 98 CV, 72 kw 2cil. 748S Bastidores: --- 1995-1998
Ducati 916 916 Senna I Monoposto 109 CV, 80 kw 2cil. 916S Bastidores: --- 1995-1996
Ducati 916 916 Senna I Monoposto 98 CV, 72 kw 2cil. 916S Bastidores: --- 1995-1996
Ducati 916 916 Senna II Monoposto 109 CV, 80 kw 2cil. 916S Bastidores: --- 1997
Ducati 916 916 Senna II Monoposto 98 CV, 72 kw 2cil. 916S Bastidores: --- 1997
Ducati 916 916 Senna III Monoposto 105 CV, 77 kw 2cil. 916S Bastidores: --- 1998
Ducati 916 916 Senna III Monoposto 98 CV, 72 kw 2cil. 916S Bastidores: --- 1998
Ducati 916 916 SP Sport Production 128 CV, 94 kw 2cil. 916SP Bastidores: --- 1994
Ducati 916 916 SP Sport Production 131/109 CV, 96/80 kw 2cil. 916SP Bastidores: --- 1995-1996
Ducati 916 916 SP Sport Production 131/134 CV, 96/99 kw 2cil. 1SB8S Bastidores: --- 1997
Ducati 916 916 Strada Biposto 100 CV, 74 kw 2cil. 1SB8S Bastidores: --- 1994
Ducati 916 916 Strada Biposto 105 CV, 77 kw 2cil. 916S Bastidores: --- 1998
Ducati 916 916 Strada Biposto 109 CV, 80 kw 2cil. 1SB8S Bastidores: --- 1994-1997
Ducati 916 916 Strada Biposto 98 CV, 72 kw 2cil. 1SB8S Bastidores: --- 1995-1997
Ducati 916 916 Strada Biposto 98 CV, 72 kw 2cil. 916S Bastidores: --- 1998
Ducati 916 996 SPS 996 Sport Production 123 CV, 90 kw 2cil. H100AA Bastidores: --- 1998
Ducati 916 996 SPS 996 Sport Production 134 CV, 98 kw 2cil. H100AA Bastidores: --- 1997
Ducati 996 996 Biposto/Monoposto 113 CV, 83 kw 2cil. H200AA Bastidores: --- 1999
Ducati 996 996 Biposto/Monoposto 113 CV, 83 kw 2cil. H200AA/AC Bastidores: --- 2000-2001
Ducati 996 996 R Sport Production 136 CV, 100 kw 2cil. H200AA Bastidores: --- 2001
Ducati 996 996 S Biposto/Monoposto 128 CV, 94 kw 2cil. H100AA Bastidores: --- 2001
Ducati 996 996 SPS Sport Production 128 CV, 94 kw 2cil. H100AA Bastidores: --- 1999
Ducati 998 998 Biposto/Monoposto 123 CV, 91 kw 2cil. H200AA/AL Bastidores: --- 2002-2003
Ducati 998 998 S Monoposto Bayliss 136 CV, 100 kw 2cil. H200AA Bastidores: --- 2002
Ducati MH 900 E 75 CV, 55 kw 2cil. V300AA Bastidores: --- 2001-2002
