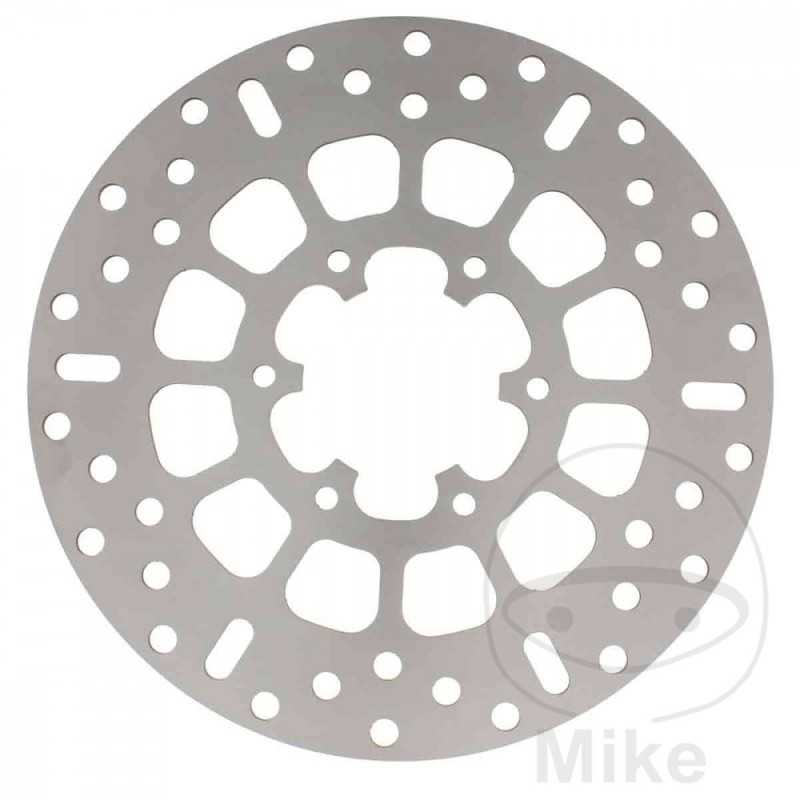

EBC BRAKE DISK 760.00.89

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 218MM
INSIDE DIAMETER: 57.3MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 125 4T ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 4T Replica ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T Replica ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS4 125 4T 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 125 4T Replica 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 50 /Replica 5,4/2,7 CV, 4/2 kw 1cil. TK000 Bastidores: --- 2011-2013
Aprilia RS4 50 /Replica euro2 5,4/2,7 CV, 4/2 kw 1cil. TK000/VX000 Bastidores: --- 2014-2018
Aprilia RS4 50 euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2018-2019
Aprilia RS4 50 Euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2020-2021
Aprilia Tuono 125 4T ABS 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2017-2020
Aprilia Tuono 125 4T ABS Euro4 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2021
Aprilia Tuono 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAB00 Bastidores: --- 2021-2022
Derbi GPR 125 4T Racing 15 CV, 11 kw 1cil. RG1A1A Bastidores: --- 2009-2016
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. RF1A1A Bastidores: --- 2010-2012
Derbi Mulhacen 125 Cafe Gussrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: VTHMS1A1A7N001791-- 2008-2009
Derbi Mulhacen 125 Cafe Gussrad 15 CV, 11 kw 1cil. MS1A2A Bastidores: --- 2010-2011
