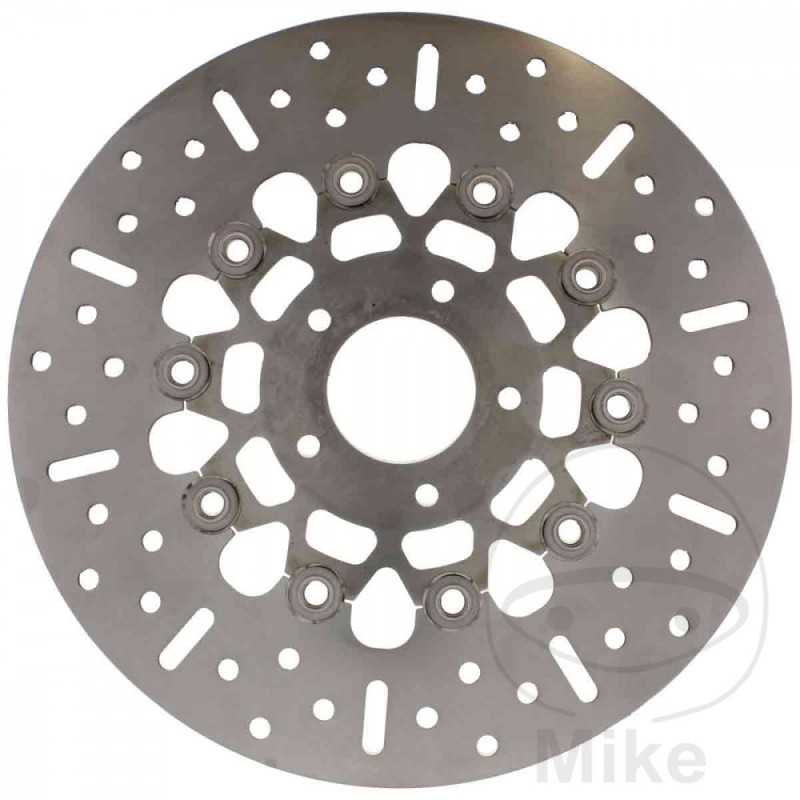

EBC BRAKE DISK 760.00.85

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 56.4MM
CIRCLE SIZE: 82.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.6 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson FXDB 1584 Dyna Street Bob 34 CV, 25 kw 2cil. GX4 FD2 Bastidores: --- 2007-2012
Harley Davidson FXDB 1584 Dyna Street Bob 76 CV, 56 kw 2cil. GX4 FD2 Bastidores: --- 2007-2013
Harley Davidson FXDB 1584 Dyna Street Bob ABS 34 CV, 25 kw 2cil. GX4 FD2 Bastidores: --- 2012
Harley Davidson FXDB 1584 Dyna Street Bob ABS 76 CV, 56 kw 2cil. GX4 FD2 Bastidores: --- 2012-2013
Harley Davidson FXDB 1690 Dyna Street Bob ABS 48 CV, 34 kw 2cil. GXM FD2 Bastidores: --- 2014-2016
Harley Davidson FXDB 1690 Dyna Street Bob ABS 78 CV, 57 kw 2cil. GXM FD2 Bastidores: --- 2014-2014
Harley Davidson FXDB 1690 Dyna Street Bob ABS 78 CV, 57 kw 2cil. GXM FD2 Bastidores: --- 2016-2016
Harley Davidson FXDB 1690 Dyna Street Bob ABS 78/46 CV, 57/34 kw 2cil. GXM FD2 Bastidores: --- 2017
Harley Davidson FXDB 1690 Dyna Street Bob ABS 79 CV, 58 kw 2cil. GXM FD2 Bastidores: --- 2015
Harley Davidson FXDBA 1690 Dyna Street Bob Special Edition ABS 78 CV, 57 kw 2cil. VBM Bastidores: --- 2013
Harley Davidson FXDBB 1690 Dyna Street Bob Special Edition ABS 78 CV, 57 kw 2cil. VCM FD2 Bastidores: --- 2014
Harley Davidson FXDBC 1690 Dyna Street Bob Special ABS 78 CV, 57 kw 2cil. VDM FD2 Bastidores: --- 2016
Harley Davidson FXDBI 1450 EFI Dyna Street Bob 34 CV, 25 kw 2cil. GX1 FD2 Bastidores: --- 2006
Harley Davidson FXDBI 1450 EFI Dyna Street Bob 73 CV, 54 kw 2cil. GX1 FD2 Bastidores: --- 2006
Harley Davidson FXDC 1584 Dyna Super Glide Custom 34 CV, 25 kw 2cil. GV4 FD2 Bastidores: --- 2007-2011
Harley Davidson FXDC 1584 Dyna Super Glide Custom 76 CV, 56 kw 2cil. GV4 FD2 Bastidores: --- 2007-2011
Harley Davidson FXDC 1584 Dyna Super Glide Custom ABS 34 CV, 25 kw 2cil. GV4 FD2 Bastidores: --- 2012
Harley Davidson FXDC 1584 Dyna Super Glide Custom ABS 76 CV, 56 kw 2cil. GV4 FD2 Bastidores: --- 2012-2013
Harley Davidson FXDC 1690 Dyna Super Glide Custom ABS 48 CV, 34 kw 2cil. GVM FD2 Bastidores: --- 2014
Harley Davidson FXDC 1690 Dyna Super Glide Custom ABS 78 CV, 57 kw 2cil. GVM FD2 Bastidores: --- 2014
Harley Davidson FXDC-ANV 1584 Dyna Super Glide Custom Anniversary ABS 76 CV, 56 kw 2cil. GVA4 FD2 Bastidores: --- 2013
Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom 34 CV, 25 kw 2cil. GV1 FD2 Bastidores: --- 2006
Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom 73 CV, 54 kw 2cil. GV1 FD2 Bastidores: --- 2006
Harley Davidson FXDF 1584 Dyna Fat Bob 78 CV, 57 kw 2cil. GY4 FD2 Bastidores: --- 2008-2011
Harley Davidson FXDF 1584 Dyna Fat Bob ABS 78 CV, 57 kw 2cil. GY4 FD2 Bastidores: --- 2012
Harley Davidson FXDF 1690 Dyna Fat Bob ABS 79 CV, 58 kw 2cil. GYM FD2 Bastidores: --- 2013-2016
Harley Davidson FXDF 1690 Dyna Fat Bob ABS 80/46 CV, 59/34 kw 2cil. GYM FD2 Bastidores: --- 2017
Harley Davidson FXDI 35th 1450 EFI Dyna Super Glide Anniversary 34 CV, 25 kw 2cil. GW1 FD2 Bastidores: --- 2006
Harley Davidson FXDI 35th 1450 EFI Dyna Super Glide Anniversary 73 CV, 54 kw 2cil. GW1 FD2 Bastidores: --- 2006
Harley Davidson FXDL 1584 Dyna Low Rider 34 CV, 25 kw 2cil. GN4 FD2 Bastidores: --- 2007-2008
Harley Davidson FXDL 1584 Dyna Low Rider 76 CV, 56 kw 2cil. GN4 FD2 Bastidores: --- 2007-2008
Harley Davidson FXDL 1690 Dyna Low Rider 76 CV, 56 kw 2cil. GNM FD2 Bastidores: --- 2014
Harley Davidson FXDL 1690 Dyna Low Rider ABS 76 CV, 56 kw 2cil. GNM FD2 Bastidores: --- 2015-2016
Harley Davidson FXDL 1690 Dyna Low Rider ABS 78/46 CV, 57/34 kw 2cil. GNM FD2 Bastidores: --- 2017
Harley Davidson FXDLI 1450 EFI Dyna Low Rider 34 CV, 25 kw 2cil. GN1 FD2 Bastidores: --- 2006
Harley Davidson FXDLI 1450 EFI Dyna Low Rider 73 CV, 54 kw 2cil. GN1 FD2 Bastidores: --- 2006
Harley Davidson FXDWG 1584 Dyna Wide Glide 34 CV, 25 kw 2cil. GP4 FD2 Bastidores: --- 2007
Harley Davidson FXDWG 1584 Dyna Wide Glide 76 CV, 56 kw 2cil. GP4 FD2 Bastidores: --- 2007
Harley Davidson FXDWG 1584 Dyna Wide Glide 78 CV, 57 kw 2cil. GP4 FD2 Bastidores: --- 2010-2011
Harley Davidson FXDWG 1584 Dyna Wide Glide ABS 78 CV, 57 kw 2cil. GP4 FD2 Bastidores: --- 2012
Harley Davidson FXDWG 1690 Dyna Wide Glide ABS 79 CV, 58 kw 2cil. GPM FD2 Bastidores: --- 2013-2016
Harley Davidson FXDWG 1690 Dyna Wide Glide ABS 80/46 CV, 59/34 kw 2cil. GPM FD2 Bastidores: --- 2017
Harley Davidson FXDWGI 1450 EFI Dyna Wide Glide 34 CV, 25 kw 2cil. GP1 FD2 Bastidores: --- 2006
Harley Davidson FXDWGI 1450 EFI Dyna Wide Glide 73 CV, 54 kw 2cil. GP1 FD2 Bastidores: --- 2006
Harley Davidson VRSCAW 1250 V-Rod 125 CV, 92 kw 2cil. HFH VR1 Bastidores: --- 2008
Harley Davidson VRSCAW 1250 V-Rod ABS 125 CV, 92 kw 2cil. HFH VR1 Bastidores: --- 2009-2010
Harley Davidson VRSCAWA 1250 V-Rod ABS 125 CV, 92 kw 2cil. HKH VR1 Bastidores: --- 2008
Harley Davidson VRSCX 1250 V-Rod Screamin Eagle 125 CV, 92 kw 2cil. HJG VR1 Bastidores: --- 2007
