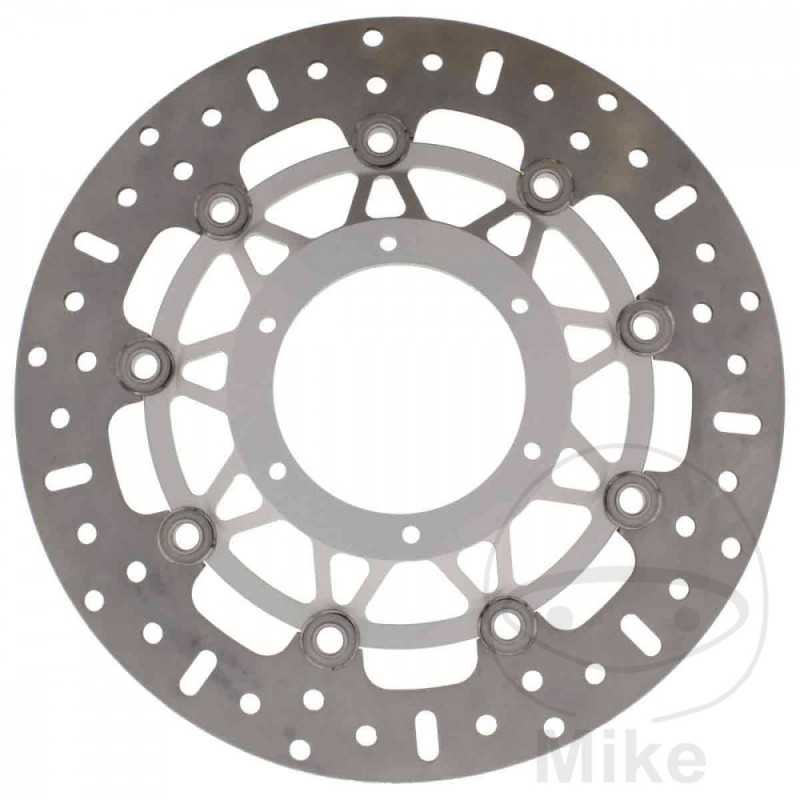

EBC BRAKE DISK 760.00.81

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 4.7MM
PADDING: 17.6MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBF 1000 102/98 CV, 75/72 kw 4cil. SC58A 6 Bastidores: ZDC SC58A henceforth6F000001-ZDC SC58A henceforth6F049999 2006
Honda CBF 1000 102/98 CV, 75/72 kw 4cil. SC58A 7 Bastidores: ZDC SC58A henceforth7F050001-- 2007
Honda CBF 1000 102/98 CV, 75/72 kw 4cil. SC58A 8 Bastidores: ZDC SC58A henceforth8F300001-ZDC SC58A henceforth8F399999 2008
Honda CBF 1000 102/98 CV, 75/72 kw 4cil. SC58A 9 Bastidores: ZDC SC58A henceforth9F400001-- 2009
Honda CBF 1000 102/98 CV, 75/72 kw 4cil. SC58A A Bastidores: ZDC SC58A henceforthAF410001-- 2010
Honda CBF 1000 A ABS 102/98 CV, 75/72 kw 4cil. SC58B 6 Bastidores: ZDC SC58B henceforth6F000001-ZDC SC58B henceforth6F049999 2006
Honda CBF 1000 A ABS 102/98 CV, 75/72 kw 4cil. SC58B 7 Bastidores: ZDC SC58B henceforth7F050001-- 2007
Honda CBF 1000 A ABS 102/98 CV, 75/72 kw 4cil. SC58B 8 Bastidores: ZDC SC58B henceforth8F300001-ZDC SC58B henceforth8F399999 2008
Honda CBF 1000 A ABS 102/98 CV, 75/72 kw 4cil. SC58B 9 Bastidores: ZDC SC58B henceforth9F400001-- 2009
Honda CBF 1000 A ABS 102/98 CV, 75/72 kw 4cil. SC58B A Bastidores: ZDC SC58B henceforthAF410001-- 2010-2012
Honda CBF 1000 F 107/98 CV, 79/72 kw 4cil. SC64A A Bastidores: ZDC SC64A-AF000001-ZDC SC64A-AF999999 2010
Honda CBF 1000 F 107/98 CV, 79/72 kw 4cil. SC64A B Bastidores: ZDC SC64A-BF020001-- 2011
Honda CBF 1000 F 107/98 CV, 79/72 kw 4cil. SC64A C Bastidores: ZDC SC64A henceforthCF030001-ZDC SC64A henceforthCF039999 2012-2014
Honda CBF 1000 FA ABS 107 CV, 79 kw 4cil. SC64B A Bastidores: ZDC SC64B-AF000001-ZDC SC64B-AF999999 2010
Honda CBF 1000 FA ABS 107 CV, 79 kw 4cil. SC64B B Bastidores: ZDC SC64B-BF020001-- 2011
Honda CBF 1000 FA ABS 107 CV, 79 kw 4cil. SC64B C Bastidores: ZDC SC64B henceforthCF030001-ZDC SC64B henceforthCF039999 2012-2016
Honda CBF 1000 FA ABS 98 CV, 72 kw 4cil. SC64D A Bastidores: ZDC SC64D-AF000001-ZDC SC64D-AF999999 2010
Honda CBF 1000 FA ABS 98 CV, 72 kw 4cil. SC64D B Bastidores: ZDC SC64D-BF020001-- 2011
Honda CBF 1000 FA ABS 98 CV, 72 kw 4cil. SC64D C Bastidores: ZDC SC64D henceforthCF030001-ZDC SC64D henceforthCF039999 2012-2016
Honda CBF 600 N 34 CV, 25 kw 4cil. PC43G 8 Bastidores: ZDC PC43G henceforth8F000001-- 2008
Honda CBF 600 N 34 CV, 25 kw 4cil. PC43G 9 Bastidores: ZDC PC43G henceforth9F030001-- 2009
Honda CBF 600 N 34 CV, 25 kw 4cil. PC43G A Bastidores: ZDC PC43G henceforthAF040001-- 2010
Honda CBF 600 N 78 CV, 57 kw 4cil. PC43E 8 Bastidores: ZDC PC43E henceforth8F000001-- 2008
Honda CBF 600 N 78 CV, 57 kw 4cil. PC43E 9 Bastidores: ZDC PC43E henceforth9F030001-- 2009
Honda CBF 600 N 78 CV, 57 kw 4cil. PC43E A Bastidores: ZDC PC43E henceforthAF040001-- 2010
Honda CBF 600 NA ABS 34 CV, 25 kw 4cil. PC43H 8 Bastidores: ZDC PC43H henceforth8F000001-- 2008
Honda CBF 600 NA ABS 34 CV, 25 kw 4cil. PC43H 9 Bastidores: ZDC PC43H henceforth9F030001-- 2009
Honda CBF 600 NA ABS 34 CV, 25 kw 4cil. PC43H A Bastidores: ZDC PC43H henceforthAF040001-- 2010-2012
Honda CBF 600 NA ABS 78 CV, 57 kw 4cil. PC43F 8 Bastidores: ZDC PC43F henceforth8F000001-- 2008
Honda CBF 600 NA ABS 78 CV, 57 kw 4cil. PC43F 9 Bastidores: ZDC PC43F henceforth9F030001-- 2009
Honda CBF 600 NA ABS 78 CV, 57 kw 4cil. PC43F A Bastidores: ZDC PC43F henceforthAF040001-- 2010-2013
Honda CBF 600 S 34 CV, 25 kw 4cil. PC43C 8 Bastidores: ZDC PC43C henceforth8F000001-- 2008
Honda CBF 600 S 34 CV, 25 kw 4cil. PC43C 9 Bastidores: ZDC PC43C henceforth9F030001-- 2009
Honda CBF 600 S 34 CV, 25 kw 4cil. PC43C A Bastidores: ZDC PC43C henceforthAF040001-- 2010
Honda CBF 600 S 78 CV, 57 kw 4cil. PC43A 8 Bastidores: ZDC PC43A henceforth8F000001-- 2008
Honda CBF 600 S 78 CV, 57 kw 4cil. PC43A 9 Bastidores: ZDC PC43A henceforth9F030001-- 2009
Honda CBF 600 S 78 CV, 57 kw 4cil. PC43A A Bastidores: ZDC PC43A henceforthAF040001-- 2010
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC43D 8 Bastidores: ZDC PC43D henceforth8F000001-- 2008
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC43D 9 Bastidores: ZDC PC43D henceforth9F030001-- 2009
Honda CBF 600 SA ABS 34 CV, 25 kw 4cil. PC43D A Bastidores: ZDC PC43D henceforthAF040001-- 2010-2013
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC43B 8 Bastidores: ZDC PC43B henceforth8F000001-- 2008
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC43B 9 Bastidores: ZDC PC43B henceforth9F030001-- 2009
Honda CBF 600 SA ABS 78 CV, 57 kw 4cil. PC43B A Bastidores: ZDC PC43B henceforthAF040001-- 2010-2013
