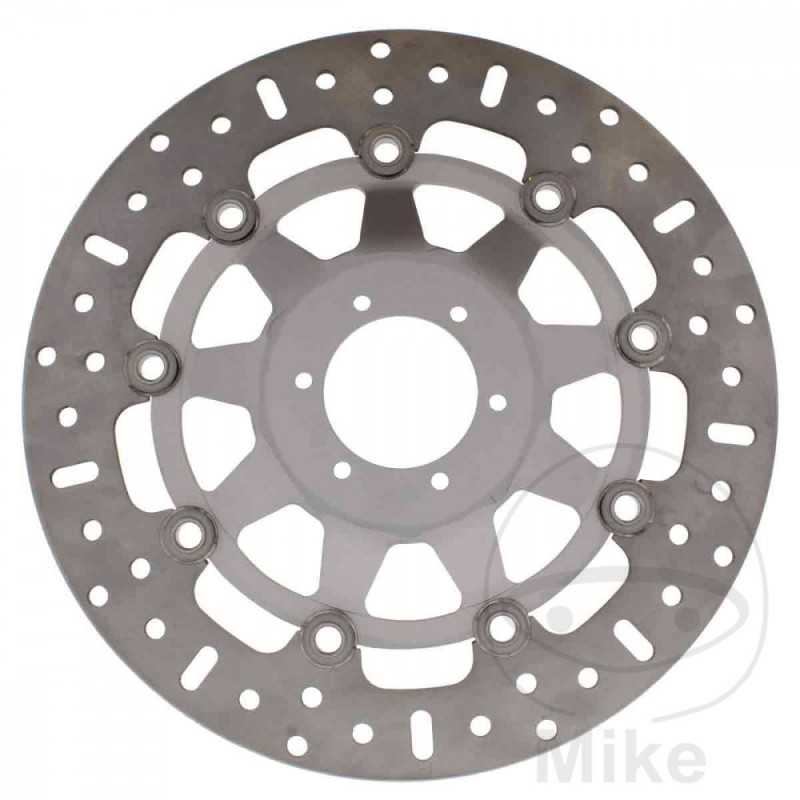

EBC BRAKE DISK 760.00.80

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 74 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.7MM
FILLING: 23MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC34D 1 Bastidores: JH2 PC34D-1M300001-- 2001
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC34D Y Bastidores: JH2 PC34D-YM200001-- 2000
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC36D 2 Bastidores: ZDC PC36D henceforth2F000001-ZDC PC36D henceforth2F099999 2002
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC36D 3 Bastidores: ZDC PC36D henceforth3F030001-ZDC PC36D henceforth3F099999 2003
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC36D 4 Bastidores: ZDC PC36D henceforth4F055001-ZDC PC36D henceforth4F099999 2004
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC36D 5 Bastidores: ZDC PC36D henceforth5F100001-ZDC PC36D henceforth5F999999 2005
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC36D 6 Bastidores: ZDC PC36D henceforth6F130001-- 2006
Honda CB 600 F Hornet 50 CV, 37 kw 4cil. PC34B 1 Bastidores: JH2 PC34B-1M300001-- 2001
Honda CB 600 F Hornet 50 CV, 37 kw 4cil. PC34B Y Bastidores: JH2 PC34B-YM200001-- 2000
Honda CB 600 F Hornet 50 CV, 37 kw 4cil. PC36B 2 Bastidores: ZDC PC36B henceforth2F000001-ZDC PC36B henceforth2F099999 2002
Honda CB 600 F Hornet 50 CV, 37 kw 4cil. PC36B 3 Bastidores: ZDC PC36B henceforth3F030001-ZDC PC36B henceforth3F099999 2003
Honda CB 600 F Hornet 50 CV, 37 kw 4cil. PC36B 4 Bastidores: ZDC PC36B henceforth4F055001-ZDC PC36B henceforth4F099999 2004
Honda CB 600 F Hornet 95 CV, 70 kw 4cil. PC34A 1 Bastidores: JH2 PC34A-1M300001-- 2001
Honda CB 600 F Hornet 95 CV, 70 kw 4cil. PC34A Y Bastidores: JH2 PC34A-YM200001-- 2000
Honda CB 600 F Hornet 95 CV, 70 kw 4cil. PC36A 2 Bastidores: ZDC PC36A henceforth2F000001-ZDC PC36A henceforth2F099999 2002
Honda CB 600 F Hornet 95 CV, 70 kw 4cil. PC36A 3 Bastidores: ZDC PC36A henceforth3F030001-ZDC PC36A henceforth3F099999 2003
Honda CB 600 F Hornet 97 CV, 71 kw 4cil. PC36A 4 Bastidores: ZDC PC36A henceforth4F055001-ZDC PC36A henceforth4F099999 2004
Honda CB 600 F Hornet 97 CV, 71 kw 4cil. PC36A 5 Bastidores: ZDC PC36A henceforth5F000001-ZDC PC36A henceforth5F999999 2005
Honda CB 600 F Hornet 97 CV, 71 kw 4cil. PC36A 6 Bastidores: ZDC PC36A henceforth6F130001-- 2006
Honda CB 600 S F2 Hornet S 34 CV, 25 kw 4cil. PC34H 1 Bastidores: JH2 PC34H-1M300001-- 2001
Honda CB 600 S F2 Hornet S 34 CV, 25 kw 4cil. PC34H Y Bastidores: JH2 PC34H-YM200001-- 2000
Honda CB 600 S F2 Hornet S 34 CV, 25 kw 4cil. PC36H 2 Bastidores: ZDC PC36H henceforth2F500001-ZDC PC36H henceforth2F59999 2002-2003
Honda CB 600 S F2 Hornet S 50 CV, 37 kw 4cil. PC34F 1 Bastidores: JH2 PC34F-1M300001-- 2001
Honda CB 600 S F2 Hornet S 50 CV, 37 kw 4cil. PC34F Y Bastidores: JH2 PC34F-YM200001-- 2000
Honda CB 600 S F2 Hornet S 50 CV, 37 kw 4cil. PC36F 2 Bastidores: ZDC PC36F henceforth2F500001-ZDC PC36F henceforth2F599999 2002-2003
Honda CB 600 S F2 Hornet S 95 CV, 70 kw 4cil. PC34E 1 Bastidores: JH2 PC34E-1M300001-- 2001
Honda CB 600 S F2 Hornet S 95 CV, 70 kw 4cil. PC34E Y Bastidores: JH2 PC34E-YM200001-- 2000
Honda CB 600 S F2 Hornet S 95 CV, 70 kw 4cil. PC36E 2 Bastidores: ZDC PC36E henceforth2F500001-ZDC PC36E henceforth2F59999 2002-2003
