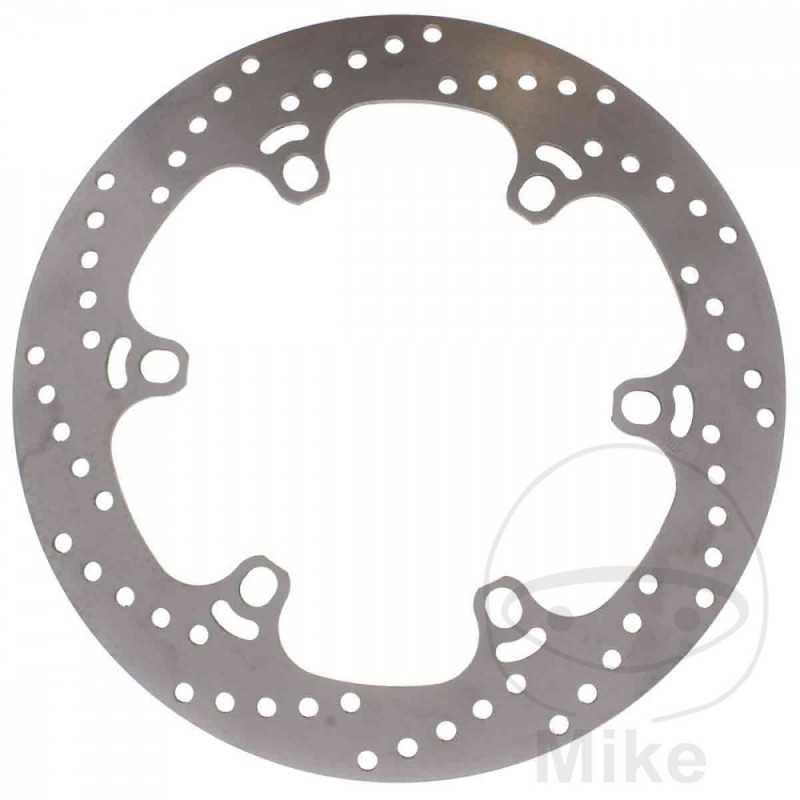

EBC BRAKE DISK 760.00.77

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 176.75MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 16.7 X 14 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Multistrada 1100 95 CV, 70 kw 2cil. A109AA Bastidores: --- 2007-2008
Ducati Multistrada 1100 95 CV, 70 kw 2cil. A109AA/A200AA Bastidores: --- 2009
Ducati Multistrada 1100 S 95 CV, 70 kw 2cil. A109AA Bastidores: --- 2007-2009
Ducati Multistrada DS 1000 84 CV, 62 kw 2cil. A100AA Bastidores: --- 2003
Ducati Multistrada DS 1000 84 CV, 62 kw 2cil. A100AA/AB Bastidores: --- 2004
Ducati Multistrada DS 1000 92 CV, 68 kw 2cil. A100AB Bastidores: --- 2005-2006
Ducati Multistrada DS 1000 S 92 CV, 68 kw 2cil. A100AB Bastidores: --- 2005-2006
Ducati Portedefolio 1100 S 95 CV, 70 kw 2cil. A110AA Bastidores: --- 2007-2008
