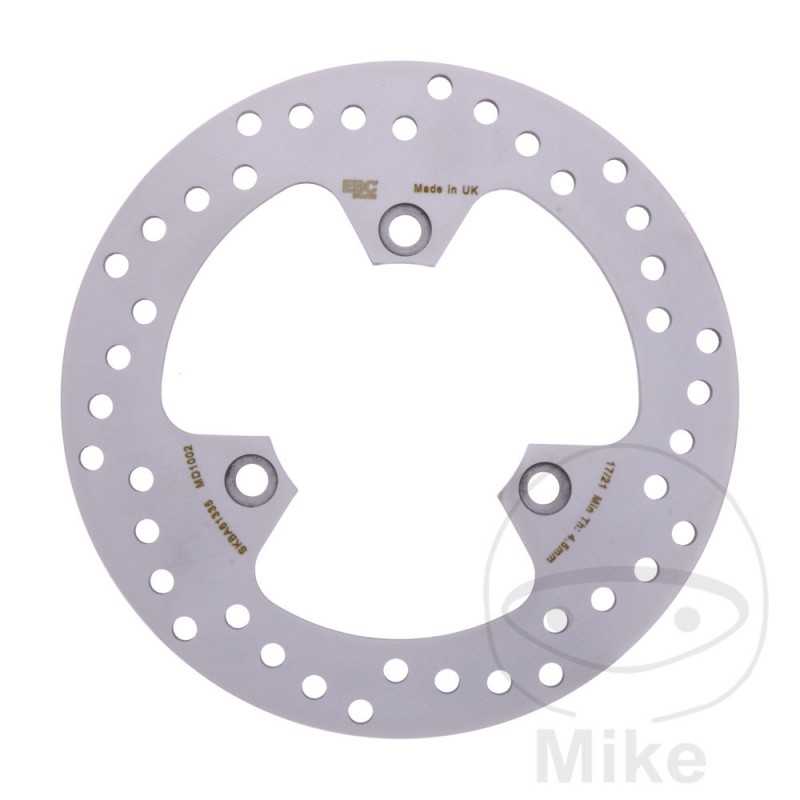

EBC BRAKE DISK 760.00.42

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 88.2MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 400 R 4cil. NC23 G Bastidores: NC23-1000001-NC23-1010690 1986
Honda CBR 400 R 4cil. NC23 H Bastidores: NC23-1015001-NC23-1016160 1987
Honda CBR 400 RR 60 CV, 44 kw 4cil. NC23 J Bastidores: NC23-1020001-NC23-1036454 1988
Honda CBR 400 RR 60 CV, 44 kw 4cil. NC23 K Bastidores: NC23-1090001-NC23-1098116 1989
Honda CBR 600 F 50 CV, 37 kw 4cil. PC19 H Bastidores: PC19-3000002-PC19-3001007 1987
Honda CBR 600 F 50 CV, 37 kw 4cil. PC19 J Bastidores: PC19-3100001-PC19-3100525 1988
Honda CBR 600 F 50 CV, 37 kw 4cil. PC23 K Bastidores: PC23-3000001-PC19-3000450 1989
Honda CBR 600 F 50 CV, 37 kw 4cil. PC23 L Bastidores: PC23-3100001-PC23-3100450 1990
Honda CBR 600 F 85 CV, 63 kw 4cil. PC19 H Bastidores: PC19-2000002-PC19-2007345 1987
Honda CBR 600 F 85 CV, 63 kw 4cil. PC19 J Bastidores: PC19-2100861-PC19-2106279 1988
Honda CBR 600 F 93 CV, 68 kw 4cil. PC23 K Bastidores: PC23-2000013-PC23-2007754 1989
Honda CBR 600 F 93 CV, 68 kw 4cil. PC23 L Bastidores: PC23-2100003-PC23-2105857 1990
Honda NS 400 R 72 CV, 53 kw 3cil. NC19 F Bastidores: NC19-2000062-NC19-2099999 1985-1986
Honda NSR 250 R 45 CV, 33 kw 2cil. MC16 G Bastidores: MC16-1000033-MC16-1020966 1987
Honda NSR 250 R 45 CV, 33 kw 2cil. MC18 2J Bastidores: MC18-1000020-MC18-1026996 1988
Honda NSR 250 R 45 CV, 33 kw 2cil. MC18 5K Bastidores: MC18-1100017-MC18-1119489 1989
Honda NSR 250 R 45 CV, 33 kw 2cil. MC21 7L Bastidores: MC21-1000001-MC21-1024051 1990-1991
Honda NSR 250 R 45 CV, 33 kw 2cil. MC21 7N Bastidores: MC21-1060001-MC21-1075471 1992
Honda NSR 250 R SE 45 CV, 33 kw 2cil. MC21 9N Bastidores: MC21-1060006-MC21-1074871 1992
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC18 4J Bastidores: MC18-1008557-MC18-1020796 1988
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC18 6K Bastidores: MC18-1100038-MC18-1118089 1989
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC21 8L Bastidores: MC21-1000001-MC21-1014511 1990-1991
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC21 8N Bastidores: MC21-1060012-MC21-1069021 1992-1993
Honda VFR 400 R 60 CV, 44 kw 4cil. NC21 G Bastidores: NC21-1000011-NC21-1015756 1986
