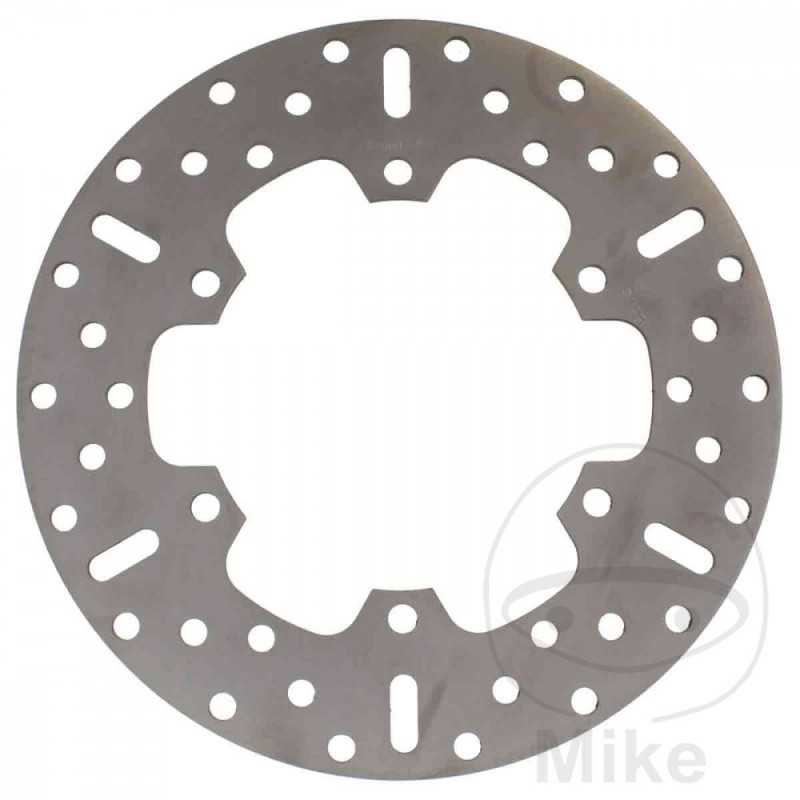

EBC BRAKE DISK 760.00.11

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 135 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.6 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7C Bastidores: RE114 henceforth00101-- 2014-2015
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7L Bastidores: RE114 henceforth00109-- 2014-2015
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR31 Bastidores: RE114-100102-- 2016
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR33 Bastidores: RE114-100101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7D Bastidores: RE115 henceforth00091-- 2014-2015
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7M Bastidores: RE115 henceforth00090-- 2014-2015
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR32 Bastidores: RE115-105101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR34 Bastidores: RE115-100101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR35 Bastidores: RE292 henceforth00095-- 2017
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR36 Bastidores: RE292 henceforth10101-- 2018
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR37 Bastidores: RE292 henceforth22351-- 2019
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE392 B6G1 Bastidores: RE392 henceforth00060-- 2020
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D78 Bastidores: RE111 henceforth00073-- 2014
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7K Bastidores: RE111 henceforth00070-- 2014
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7P Bastidores: RE111 henceforth06102-- 2015
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7R Bastidores: RE111 henceforth06101-- 2015
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7S Bastidores: RE111 henceforth11101-- 2016
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7W Bastidores: RE111 henceforth11102-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7E Bastidores: RE112 henceforth00098-- 2015
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7T Bastidores: RE112 henceforth04102-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7X Bastidores: RE112 henceforth04101-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR61 Bastidores: RE291 henceforth00092-- 2017
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR62 Bastidores: RE291 henceforth10101-- 2018
