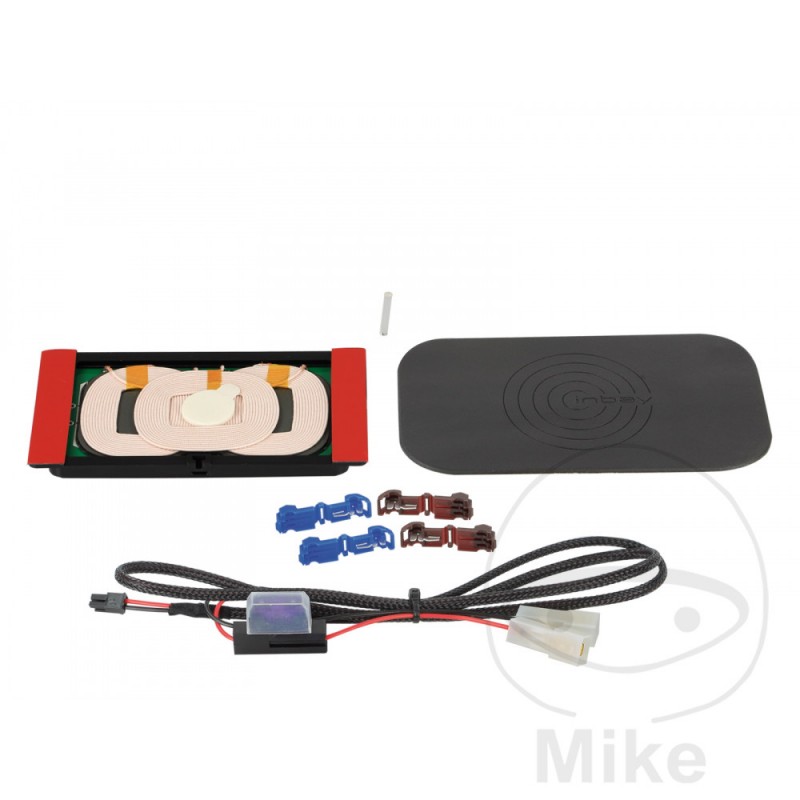

INBAY® Kit 3 universal coils 5W

This storage tray supports wireless inductive charging of smartphones via INBAY®.

All INBAY® products work with the Qi wireless charging standard established around the world.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

INBAY® complies with the following technical standards:

Qi certified by the Wireless Power Consortium

E mark according to ECE 10R - 05 14145

EMC Standard VW80000 / TL-965

FOD - "foreign object detection" - detection of foreign objects

INBAY® in the vehicle:

No interference with the vehicle bus system

No interference with vehicle electronics

No interference with AM/FM/DAB reception

Note:

Mounting under/in shelves or compartments (see BDA).

There should be no metallic objects between the charging unit and the smartphone.

Smartphone protective cases must not contain metal components.

Connection: universal wire harness +12V

Charging coil dimensions: L = 124mm / W = 66mm / H = 12mm

Pad dimensions: L = 135mm / H 76mm

Input voltage: +12V DC

Charge voltage: 5V

Charge current: 1A max.

Charging power: 5W compatible smartphones > 5W max.

*For smartphones with fast charging function, depending on the applications used in parallel to charging, only one state of charge may be possible.
