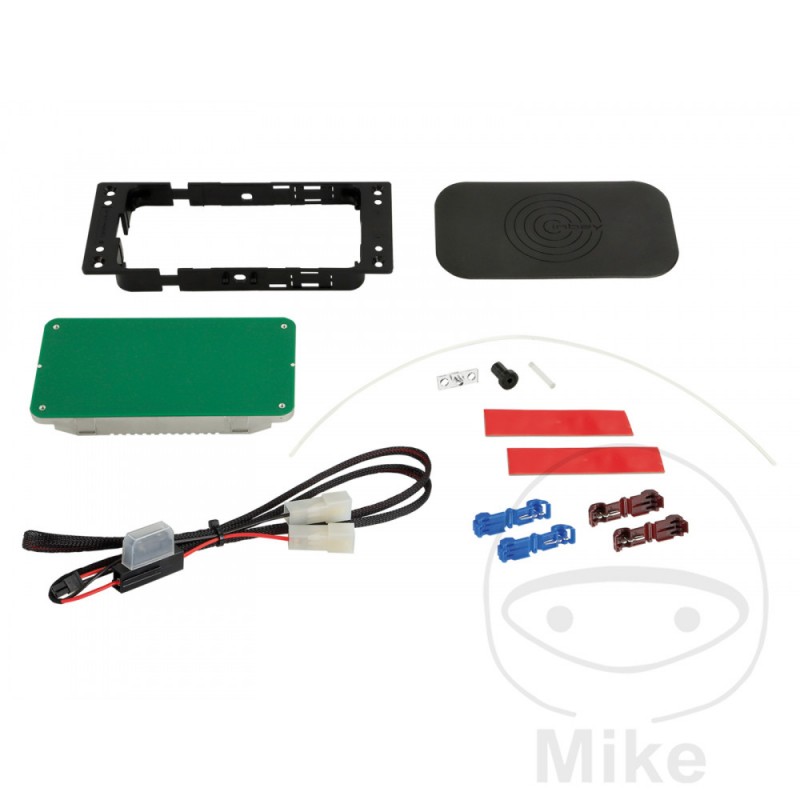

INBAY Universal mobile phone charging tray kit 15W 1940882

INBAY® Universal Light Guide Kit 15W 3-Coil Kit

This storage tray supports wireless inductive charging of smartphones via INBAY®.

All INBAY® products work with the globally established Qi standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

INBAY® complies with the following technical standards:

Qi certified by the Wireless Power Consortium

E mark according to ECE 10R - 05 15424

EMC standard FMC 1278

FOD - "foreign object detection".

INBAY® in the vehicle:

No interference with the vehicle bus system

No interference with vehicle electronics

No interference with AM/FM/DAB reception

Note:

Mounting under/on shelves or compartments (see BDA).

There should be no metallic objects between the charging unit and the smartphone.

Smartphone protective cases must not contain any metal components.

Item Image 3: Subaru WRX Sti Installation Example

Item picture 5: Example of installation in the center armrest of an Audi A4

Image of article 6: Example of installation in the storage compartment of a motorhome

Connection: +12V universal harness, universal light guide kit

Charging coil dimensions: L = 165.3mm / W = 76mm / H = 14.7mm

Pad Dimensions: L = 135mm / W 76mm

Input voltage: +12V DC

Charge voltage: 5V, 9V

Charge current: 1.6A max.

Charge power:

5W compatible smartphones > 5W max.

7.5 W compatible smartphones > 7.5 W max.

10 W compatible smartphones > 10 W max.

15 W compatible smartphones > 15 W max.

Apple iPhone > 7.5W max.
