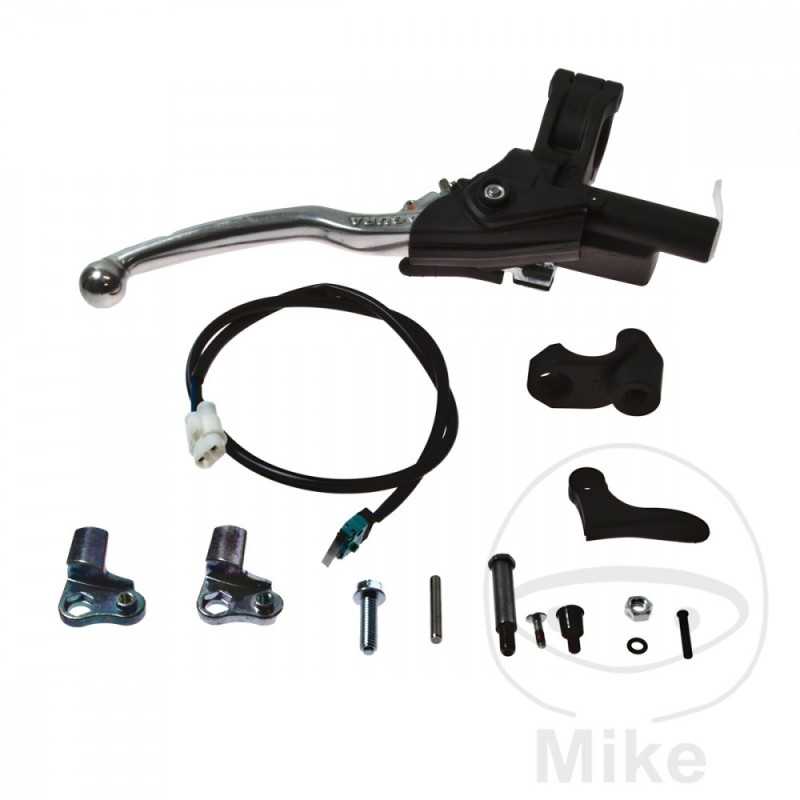

MAGURA hydraulic clutch pump HYMEC 729.00.93

HYDRAULIC CLUTCH CYLINDER MAGURA 167.1

Aluminum hydraulic clutch master cylinder with cast container,

unbreakable lever with folding function made of forged aluminium,

Easily adjustable lever position via optimized knurled screw, easy installation due to improved clip clamp,

Small and compact construction to avoid collisions during extreme sports, lever joint protected by cover against contamination.

Black offroad master cylinder, silver lever 146mm, deco, switch and mirror clamp included

- for the use of mineral oil

- stroke 10-12mm

- Leverage 1: 4

- Connection thread M10x1

- piston diameter 10.5 mm (sports operation)

The Hymec Offraod master cylinder does not fit street bikes because the shape of the lever does not fit beyond the switch unit


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR-Z 400 49 CV, 36 KW 1CIL. BE1111 K2 BASTIDORES: BE1111 henceforth0101663-BE1111 henceforth0101675 2002
SUZUKI DR-Z 400 49 CV, 36 KW 1CIL. BE1111 K3 BASTIDORES: BE1111 henceforth0101676-- 2003-2004
SUZUKI DR-Z 400 49/14 CV, 36/10 KW 1CIL. BE1111 K1 BASTIDORES: BE1111 henceforth0101391-BE1111 henceforth0101662 2001
SUZUKI DR-Z 400 49/14 CV, 36/10 KW 1CIL. BE1111 Y BASTIDORES: BE1111 henceforth0100001-BE1111 henceforth0101390 2000
SUZUKI DR-Z 400 E 33 CV, 24 KW 1CIL. BF1111 K1 BASTIDORES: BF1111 henceforth0101327-BF1111 henceforth0102359 2001
SUZUKI DR-Z 400 E 33 CV, 24 KW 1CIL. BF1111 Y BASTIDORES: BF1111 henceforth0100001-BF1111 henceforth0101326 2000
SUZUKI DR-Z 400 E 49 CV, 36 KW 1CIL. BF1111 K2 BASTIDORES: BF1111 henceforth0102360-BF1111 henceforth0103442 2002
SUZUKI DR-Z 400 E 49 CV, 36 KW 1CIL. BF1111 K3 BASTIDORES: BF1111 henceforth0103443-- 2003-2004
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K1 BASTIDORES: BC1112 henceforth0103867-BC1112 henceforth0105028 2001
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K2 BASTIDORES: BC1112 henceforth0105029-BC1112 henceforth0105820 2002
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K3 BASTIDORES: BC1112 henceforth0105821-BC1112 henceforth0107185 2003
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 Y BASTIDORES: BC1112 henceforth0100001-BC1112 henceforth0103866 2000
YAMAHA WR 400 F 37 CV, 27 KW 1CIL. CH02W 5BF2 BASTIDORES: CH02W henceforth00140-- 1998
YAMAHA WR 400 F 37 CV, 27 KW 1CIL. CH04W 5GS2 BASTIDORES: CH04W henceforth00101-- 1999
YAMAHA YFZ 350 BANSHEE 46 CV, 34 KW 2CIL. 3GG 5FK7 BASTIDORES: 3GG-176268-- 2000
YAMAHA YFZ 350 BANSHEE 46 CV, 34 KW 2CIL. 3GG 5FKC BASTIDORES: 3GG-197900-- 2001
YAMAHA YFZ 350 BANSHEE 46 CV, 34 KW 2CIL. 3GG 5FKG BASTIDORES: 3GG-219967-- 2002
YAMAHA YFZ 350 BANSHEE 46 CV, 34 KW 2CIL. 3GG 5FKL BASTIDORES: 3GG-235833-- 2003
YAMAHA YZ 250 F 4T 41,5 CV, 30,5 KW 1CIL. CG10C 5SG2 BASTIDORES: CG10C henceforth08691-- 2002
YAMAHA YZ 250 F 4T 42 CV, 31 KW 1CIL. CG14C 5UL2 BASTIDORES: CG14C henceforth00240-- 2003
YAMAHA YZ 400 F 55 CV, 40 KW 1CIL. CH01C 5BE2 BASTIDORES: CH01C henceforth00356-- 1998
YAMAHA YZ 400 F 55 CV, 40 KW 1CIL. CH03C 5GR2 BASTIDORES: CH03C henceforth00322-- 1999
YAMAHA YZ 426 F 58 CV, 43 KW 1CIL. CJ01C 5JG2 BASTIDORES: CJ01C henceforth00101-- 2000
YAMAHA YZ 426 F 58 CV, 43 KW 1CIL. CJ01C 5JG6 BASTIDORES: CJ01C henceforth11432-- 2001
YAMAHA YZ 426 F 58 CV, 43 KW 1CIL. CJ01C 5SF2 BASTIDORES: CJ01C henceforth23164-- 2002
YAMAHA YZ 450 F 60 CV, 44 KW 1CIL. CJ03C 5TA2 BASTIDORES: CJ03C henceforth00710-- 2003
YAMAHA YZ 450 F 60 CV, 44 KW 1CIL. CJ05C 5XD2 BASTIDORES: CJ05C henceforth00112-- 2004
