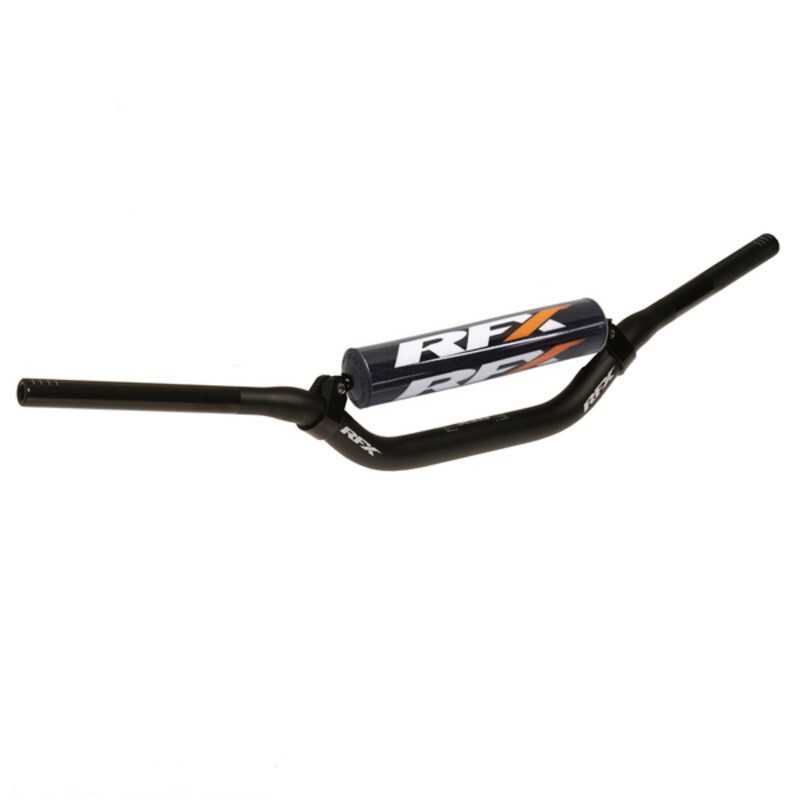

RFX Tapered handlebar with cross brace PRO F8 28,6 MM - MCGRATH PRO F8 28,6 MM - MCGRATH 1110701001

RFX's F8 Pro Series Tapered Handlebars have been engineered and tested to the highest level.

The F8 Tapered Handlebars are made from 7075-T6 aluminum and feature an Oversized Tapered Extension (OTE) for maximum strength and crash resistance, while Engineered Flex Technology (EFT) and Progressive Damping Control ( PDC) provide just the right amount of flex and reduce machine vibration to help combat rider fatigue.

The tapered F8 design also features an original cross brace, which gives a slightly firmer feel to the bars than the F7 design and is the preferred choice of some experienced and professional riders.

OTE is an oversized (28.6mm) center section lengthening. Increasing the oversized section until after the final bend in the bar adds significant strength to the weakest part of the bar, and if this is combined with a 5mm wall thickness that remains constant even on the outside of cornering, the F8 tapered bars are among the lightest yet strongest bars on the market.

EFT has been designed to allow a small amount of flex in the handlebars. Careful selection of a 5mm inner wall thickness through the riser and taper area of the bars helps reduce the jarring effects on hard hits while giving the rider maximum front-end feel on heavy hits. curves. The F8 bars have a slightly firmer feel than the F7 thanks to the built-in cross brace.

PDC is created using a greater than 5.3mm wall thickness in the handlebar grip area. This has been calculated to balance and dampen the effects of handlebar vibration. This is a similar principle to the handlebar end weights used on sportbikes, but is specifically designed and tested to accommodate the range of vibration produced by modern high performance 4-stroke motocross bikes.

Characteristic

Made of 7075 aerospace aluminum

T6 heat treated to increase tensile strength

Built-in cross brace design

Shot peened finish to prevent surface stress fractures and increase handlebar life

Oversized Conical Extension (OTE) helps reduce crash damage

Engineered Flex Technology (EFT) helps reduce driver fatigue

Progressive Damping Control (PDC) helps reduce machine vibrations

Knurled grip zone to prevent grips from slipping and twisting

Polished throttle zone for smoother acceleration

Laser etched alignment grid for perfect setup

Color anodized to prevent corrosion

Includes a high-density foam pad with a durable PVC cover

Available in a variety of curves to fit most runners.

Adjustment table

Part Number RFX Width Height Rise Clamping Area Sweep Moto Pro Taper Renthal Fatbar Renthal Twinwall Renthal 7/8"

FXHB 80001 99BK 802 99 65 200 54 Honda CRF/Kawasaki KXF Windham / RM Mid 604 997 971

FXHB 80002 99BK 805 93 50 205 55 Kawasaki KX - - 996 983

FXHB 80003 99BK 803 92 56 210 57 Yamaha YZ125 96-01 Henry/Reed 603 998 966

FXHB 80004 99BK 802 114 80 200 54 - KX HIGH 609 922 809

FXHB 80005 99BK 740 118 83 175 42 OEM Honda CRF150 - 671 923 784
