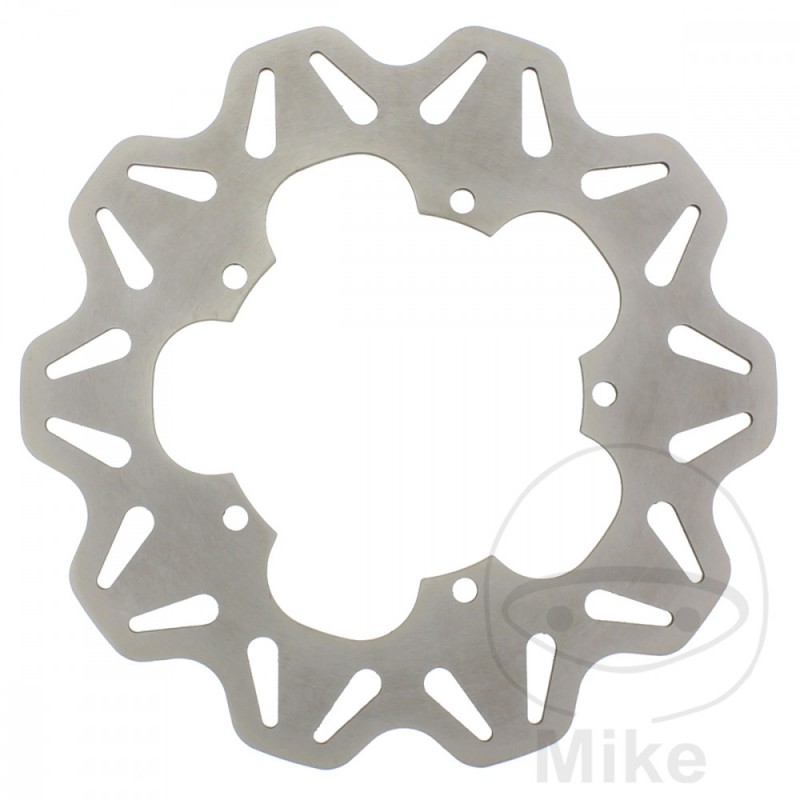

Disco de freno EBC Vee-Rotors para scooters. El acero utilizado para los nuevos discos de freno EBC VR es una conexión especial de acero inoxidable con un mayor efecto de fricción que el de los discos de freno de acero inoxidable con tratamiento térmico convencional. Están completamente hechos de acero inoxidable, tratados térmicamente y le dan al conductor una dureza óptima. Además del ahorro de peso, la refrigeración del disco de freno es esencial. Para una limpieza óptima del disco de freno, la superficie de frenado se perfora con un diseño que también permite un ahorro de peso. Cuantos menos agujeros haya, mejor será el rendimiento de frenado en mojado y menor será el desgaste del disco de freno. El conductor se beneficia de la mejor sensación y respuesta del freno, así como la vida útil del disco de freno gracias a la calidad mejorada. Por lo tanto, el material es resistente al desgaste y está expuesto a grietas. DIÁMETRO EXTERIOR: 200 MM DIÁMETRO INTERIOR: 95.2 MM MEDÍDA CÍRCULO: 106 MM CANTIDAD AGUJEROS: 5 DIÁMETRO AGUJERO: 6.5 MM GROSOR: 4.2 MM VERSIÓN: RÍGIDOAPLICACIONES DE ESTE PRODUCTO: Según los datos que nos ha proporcionado el fabricante, este artículo es compatible con las siguientes marcas, modelos y años: Derbi Atlantis 25 AC City 1,2 CV, 0,9 kw 1cil. - Bastidores: --- 2006-2009 Derbi Atlantis 25 AC City 1,2 CV, 0,9 kw 1cil. AL4AE2 Bastidores: --- 2010 Derbi Atlantis 50 4T 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2007 Derbi Atlantis 50 AC Bullet 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006-2009 Derbi Atlantis 50 AC Bullet 3,5 CV, 2,6 kw 1cil. AL4AE2 Bastidores: --- 2010-2013 Derbi Atlantis 50 AC City 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006-2009 Derbi Atlantis 50 AC City 3,5 CV, 2,6 kw 1cil. AL4AE2 Bastidores: --- 2010-2012 Derbi Atlantis 50 AC Red Bullet 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006-2008 Derbi Boulevard 125 1cil. VTHM571 Bastidores: --- 2008-2010 Derbi Boulevard 125 12,2 CV, 9 kw 1cil. VTHM571 Bastidores: --- 2011-2015 Derbi Boulevard 50 2T 3,6 CV, 2,6 kw 1cil. BR1A1A Bastidores: --- 2009-2013 Derbi Boulevard 50 4T 3,7 CV, 2,7 kw 1cil. - Bastidores: --- 2009-2011 Gilera DNA 50 4,8 CV, 3,5 kw 1cil. C27000 Bastidores: ZAPC27000 en adelante0001001-ZAPC27000 en adelante0999999 2000-2002 Gilera DNA 50 GP Experience 4,1 CV, 3 kw 1cil. C270000 Bastidores: ZAPC270000-3000001-- 2006-2008 Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-1000001-ZAPC270000-1999999 2003 Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-2000001-ZAPC270000-2999999 2004 Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-3000001-- 2005 Gilera Ice 50 4,1 CV, 3 kw 1cil. C30000 Bastidores: ZAPC3000 en adelante00001001-- 2002-2003 Gilera Runner 125 VX 4T 14,7 CV, 10,8 kw 1cil. M24000 Bastidores: ZAPM24000 en adelante0001008-ZAPM24000 en adelante0007000 2001 Gilera Runner 125 VX 4T 14,7 CV, 10,8 kw 1cil. M24000 Bastidores: ZAPM24000 en adelante0007002-ZAPM24000 en adelante0999999 2002-2003 Gilera Runner 125 VX 4T 14,7 CV, 10,8 kw 1cil. M24000 Bastidores: ZAPM24000 en adelante3000001-ZAPM24000 en adelante3999999 2004 Gilera Runner 180 VXR 4T 19 CV, 14 kw 1cil. M24000 Bastidores: ZAPM24000 en adelante1000001-ZAPM24000 en adelante1999999 2001-2002 LML Star 125 2T Deluxe 6,7 CV, 4,9 kw 1cil. - Bastidores: --- 2012-2015 LML Star 125 4T Automatica 9,2 CV, 6,8 kw 1cil. - Bastidores: --- 2013-2017 LML Star 125 4T Deluxe 8,2 CV, 6 kw 1cil. - Bastidores: --- 2012-2017 LML Star 150 2T 7,9 CV, 5,8 kw 1cil. - Bastidores: --- 2012 LML Star 150 4T 9,2 CV, 6,75 kw 1cil. - Bastidores: --- 2012 LML Star 151 4T 1cil. - Bastidores: --- 2012 LML Star 200 4T Deluxe 11,8 CV, 8,7 kw 1cil. - Bastidores: --- 2012-2017 LML Star Lite 125 4T Automatica 9,2 CV, 6,8 kw 1cil. - Bastidores: --- 2016-2017 Piaggio Fly 100 6,3 CV, 4,6 kw 1cil. M53100 Bastidores: LBMM53100 en adelante0001001-- 2007 Piaggio Fly 125 10,4 CV, 7,65 kw 1cil. M42100 Bastidores: ZAPM42100 en adelante0001001-- 2005-2007 Piaggio Fly 125 10,4 CV, 7,65 kw 1cil. M57200 Bastidores: LBMM57200 en adelante0001001-- 2008-2011 Piaggio Fly 50 2T 4,3 CV, 3,2 kw 1cil. - Bastidores: --- 2012-2012 Piaggio Fly 50 2T 4,3 CV, 3,2 kw 1cil. - Bastidores: --- 2015-2018 Piaggio Fly 50 2T 4,6 CV, 3,4 kw 1cil. C44100 Bastidores: ZAPC44100 en adelante0001001-- 2005-2007 Piaggio Fly 50 2T 4,6 CV, 3,4 kw 1cil. C44700 Bastidores: LBMC44700 en adelante0001001-- 2010-2011 Piaggio Fly 50 4T 2V 3,6 CV, 2,66 kw 1cil. C44500 Bastidores: LBMC44500 en adelante0001001-- 2007-2011 Piaggio Fly 50 4T 2V 3,6 CV, 2,66 kw 1cil. C52300 Bastidores: RP8C52300 en adelante0000001-- 2014-2018 Piaggio Free 25 FL DT 1,4 CV, 1 kw 1cil. FCS2T Bastidores: FCS2T en adelante001001-- 1995-1999 Piaggio Free 50 FL DT 4 CV, 3 kw 1cil. FCS2T Bastidores: FCS2T en adelante001001-- 1995-2002 Piaggio Free 50 FL DT Kat 4 CV, 3 kw 1cil. FCS2T Bastidores: FCS2T en adelante001001-- 1995-2002 Piaggio Hexagon 125 GTX 4T 11 pulgadas 15 CV, 11 kw 1cil. M2000000 Bastidores: ZAPM2000000 en adelante03055-- 2000-2002 Piaggio Hexagon 125 LX 2T 13,9 CV, 10,2 kw 1cil. M05000 Bastidores: ZAPM05000 en adelante0001503-- 1998-2000 Piaggio Hexagon 125 LX4 4T 10,3 CV, 7,6 kw 1cil. M15000 Bastidores: ZAPM15000 en adelante0001001-- 1998-2000 Piaggio Hexagon 180 LXT 2T 19 CV, 14 kw 1cil. M06000 Bastidores: ZAPM06000 en adelante0001006-- 1998-2000 Piaggio Hexagon 250 GT 16 CV, 11,8 kw 1cil. M14000 Bastidores: ZAPM14000 en adelante0001001-ZAPM14000 en adelante0014817 1998-2000 Piaggio New Fly 50 4T 2V 4,3 CV, 3,2 kw 1cil. - Bastidores: --- 2016-2017 Piaggio Sfera 125 10 CV, 7,4 kw 1cil. M01000 Bastidores: ZAPM01000 en adelante0001006-- 1995-1998 Piaggio Sfera 150 1cil. NSL1T Bastidores: --- 1991-1994 Piaggio Sfera 50 2 DT catalizador 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 en adelante00001001-- 1997 Piaggio Sfera 50 2 DT RST 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 en adelante00001001-- 1997 Piaggio Super Hexagon 180 GTX 11 pulgadas 19 CV, 14 kw 1cil. M2000001 Bastidores: ZAPM2000001 en adelante00006-- 2000-2001 Piaggio Zip 125 II 11 CV, 8 kw 1cil. M25000 Bastidores: ZAPM2500 en adelante00001001-- 2000-2003 Piaggio Zip 50 SP 2T LC 4 CV, 3 kw 1cil. C11000 Bastidores: ZAPC11000 en adelante0001001-- 1996-2000 Piaggio Zip 50 SP 2T LC 4,8 CV, 3,5 kw 1cil. C250004 Bastidores: ZAPC250000-4000001-ZAPC250000-6999999 2001-2003 Vespa ET2 50 2T 3,6 CV, 2,7 kw 1cil. C16000 Bastidores: ZAPC16000 en adelante0001001-- 1997-2003 Vespa ET2 50 2T con catalizador 4,4 CV, 3,2 kw 1cil. C38100 Bastidores: ZAPC38100 en adelante0001001-- 2004-2005 Vespa ET2 50 i Fast Injection 3,6 CV, 2,7 kw 1cil. C12000 Bastidores: ZAPC12000 en adelante0001091-- 1998-2000 Vespa ET4 125 10,7 CV, 7,9 kw 1cil. M04000 Bastidores: ZAPM04000 en adelante0001001-- 1996-2000 Vespa ET4 125 LEADER 11 CV, 8 kw 1cil. M19000 Bastidores: ZAPM19000--- 2000-2005 Vespa ET4 50 4T 3,4 CV, 2,5 kw 1cil. C12610 Bastidores: ZAPC26100 en adelante0001001-- 2000-2003 Vespa ET4 50 4T 3,4 CV, 2,5 kw 1cil. C38200 Bastidores: ZAPC38200 en adelante0001001-- 2004-2005 Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44100 Bastidores: ZAPM44100 en adelante0001001-ZAPM44100 en adelante0031637 2005-2007 Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44300 Bastidores: ZAPM44300 en adelante0001001-- 2008-2009 Vespa LX 125 2V ie 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 en adelante0001001-- 2010-2013 Vespa LX 125 2V ie Touring 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 en adelante0001001-- 2010-2013 Vespa LX 125 3V ie 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 en adelante0001001-- 2012-2014 Vespa LX 125 3V ie Touring 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 en adelante0001001-- 2012-2014 Vespa LX 150 11,7 CV, 8,6 kw 1cil. M44200 Bastidores: ZAPM44200 en adelante0001001-- 2005-2006 Vespa LX 150 11,7 CV, 8,6 kw 1cil. M44400 Bastidores: ZAPM44400 en adelante0001001-ZAPM44400 en adelante0022621 2006-2008 Vespa LX 150 2V ie 12,1 CV, 8,9 kw 1cil. M68200 Bastidores: ZAPM68200 en adelante0001001-- 2009-2012 Vespa LX 150 2V ie Touring 12,1 CV, 8,9 kw 1cil. M68100 Bastidores: ZAPM68100 en adelante0001001-- 2010-2012 Vespa LX 150 3V ie 12,9 CV, 9,5 kw 1cil. M68400 Bastidores: ZAPM68400 en adelante0001001-- 2012-2013 Vespa LX 150 3V ie Touring 12,9 CV, 9,5 kw 1cil. M68400 Bastidores: ZAPM68400 en adelante0001001-- 2012-2013 Vespa LX 150 FL 11,7 CV, 8,6 kw 1cil. M44400 Bastidores: ZAPM44400 en adelante0022622-- 2009 Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 en adelante0001001-ZAPC38101 en adelante0071000 2005-2008 Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 en adelante0071001-- 2009-2009 Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 en adelante0071001-- 2012-2013 Vespa LX 50 2T /Chic 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 en adelante0071001-- 2010-2011 Vespa LX 50 2T Touring 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 en adelante0001001-- 2010-2013 Vespa LX 50 4T4V 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 en adelante0001001-- 2012-2013 Vespa LX 50 4T4V /Chic 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 en adelante0001001-- 2010-2011 Vespa LX 50 4T4V Touring 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 en adelante0001001-- 2010-2013 Vespa Primavera 125 3V ie 10,7 CV, 7,9 kw 1cil. M81100 Bastidores: ZAPM81100 en adelante0001001-- 2014-2016 Vespa Primavera 125 3V ie Touring 10,7 CV, 7,9 kw 1cil. M81100 Bastidores: ZAPM81100 en adelante0001001-- 2016 Vespa Primavera 50 2T 4,4 CV, 3,2 kw 1cil. C53200 Bastidores: ZAPC53200 en adelante0001001-- 2014-2016 Vespa Primavera 50 2T Touring 4,4 CV, 3,2 kw 1cil. C53200 Bastidores: ZAPC53200 en adelante0001001-- 2016 Vespa Primavera 50 4V 4,4 CV, 3,2 kw 1cil. C53100 Bastidores: ZAPC53100 en adelante0001001-- 2014-2016 Vespa Primavera 50 4V Touring 4,4 CV, 3,2 kw 1cil. C53100 Bastidores: ZAPC53100 en adelante0001001-- 2016 Vespa PX 125 DT 6,5 CV, 4,8 kw 1cil. M74100 Bastidores: ZAPM74100 en adelante0001001-- 2012-2017 Vespa PX 125 DT 7,7 CV, 5,6 kw 1cil. M09302 Bastidores: ZAPM09302 en adelante0001001-- 2004-2008 Vespa PX 125 DT 8,6 CV, 6,3 kw 1cil. VNX2T Bastidores: VNX2T-6000001-- 1998-2003 Vespa PX 125 DT Touring 6,5 CV, 4,8 kw 1cil. M74100 Bastidores: ZAPM74100 en adelante0001001-- 2016 Vespa PX 150 DT 7,9 CV, 5,8 kw 1cil. M74200 Bastidores: M74200 en adelante0001001-- 2012-2017 Vespa PX 150 DT Touring 7,9 CV, 5,8 kw 1cil. M74200 Bastidores: M74200 en adelante0001001-- 2016 Vespa PX 200 FL DT 12 CV, 9 kw 1cil. VSX1T Bastidores: VSX1T-6000001-- 1998-2003 Vespa S 125 10,4 CV, 7,7 kw 1cil. M44302 Bastidores: ZAPM44302 en adelante0001001-- 2007-2009 Vespa S 125 2V ie /College 10,7 CV, 7,9 kw 1cil. M68101 Bastidores: ZAPM68101 en adelante0001001-- 2010-2014 Vespa S 125 3V ie 11,6 CV, 8,5 kw 1cil. M68301 Bastidores: ZAPM68301 en adelante0001001-- 2012-2014 Vespa S 50 2T 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 en adelante0001001-- 2007-2009 Vespa S 50 2T 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 en adelante0001001-- 2012-2014 Vespa S 50 2T /College 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 en adelante0001001-- 2010-2011 Vespa S 50 2T Sport 4,4 CV, 3,2 kw 1cil. C38103 Bastidores: ZAPC38103 en adelante0001001-- 2012-2013 Vespa S 50 4V 4,4 CV, 3,2 kw 1cil. M38600 Bastidores: ZAPM38600 en adelante0001001-- 2012-2014 Vespa S 50 4V /College 4,4 CV, 3,2 kw 1cil. M38600 Bastidores: ZAPM38600 en adelante0001001-- 2009-2011 Vespa S 50 4V Sport 4,4 CV, 3,2 kw 1cil. M38600 Bastidores: ZAPM38600 en adelante0001001-- 2012-2013 Vespa Sprint 125 3V ie IGET ABS 10,7 CV, 7,9 kw 1cil. MA1300 Bastidores: ZAPMA1300 en adelante0001001-- 2017-2020 Vespa Sprint 125 3V ie IGET ABS 11 CV, 8,1 kw 1cil. - Bastidores: --- 2022 Vespa Sprint 125 3V ie IGET ABS 11 CV, 8,1 kw 1cil. MD1101 Bastidores: ZAPMD1101 en adelante0000001-- 2021 Vespa Sprint 125 3V ie IGET Notte ABS 10,7 CV, 7,9 kw 1cil. MA1300 Bastidores: ZAPMA1300 en adelante0001001-- 2017-2020 Vespa Sprint 125 3V ie IGET Racing Sixties ABS 10,7 CV, 7,9 kw 1cil. MA1300 Bastidores: ZAPMA1300 en adelante0001001-- 2020 Vespa Sprint 125 3V ie IGET Racing Sixties ABS 11 CV, 8,1 kw 1cil. - Bastidores: --- 2021-2022 Vespa Sprint 125 S 3V ie ABS 10,7 CV, 7,9 kw 1cil. M81301 Bastidores: ZAPM81301 en adelante0001001-- 2016 Vespa Sprint 125 S 3V ie IGET ABS 10,7 CV, 7,9 kw 1cil. MA1300 Bastidores: ZAPMA1300 en adelante0001001-- 2017-2020 Vespa Sprint 125 S 3V ie IGET ABS 11 CV, 8,1 kw 1cil. - Bastidores: --- 2021-2022 Vespa Sprint 125 X 3V ie IGET Justin Bieber ABS 11 CV, 8,1 kw 1cil. - Bastidores: --- 2022 Vespa Sprint 50 2T 4,4 CV, 3,2 kw 1cil. C53201 Bastidores: ZAPC53201 en adelante0001001-- 2014-2016 Vespa Sprint 50 4V 4,4 CV, 3,2 kw 1cil. C53101 Bastidores: ZAPC53101 en adelante1000001-- 2014-2016 Vespa Sprint 50 S 2T 4,4 CV, 3,2 kw 1cil. C53201 Bastidores: ZAPC53201 en adelante0001001-- 2016-2018 ZZZ Z cil. - Bastidores: ---
Referencia 760.59.06
En stock 10 Artículos
Ficha técnica
DIÁMETRO EXTERIOR 200 MM MEDÍDA CÍRCULO 106 MM DIÁMETRO AGUJERO 6.5 MM DIÁMETRO INTERIOR 106 MM VERSIÓN RÍGIDO CANTIDAD AGUJEROS 5 GROSOR 4.2 MM
