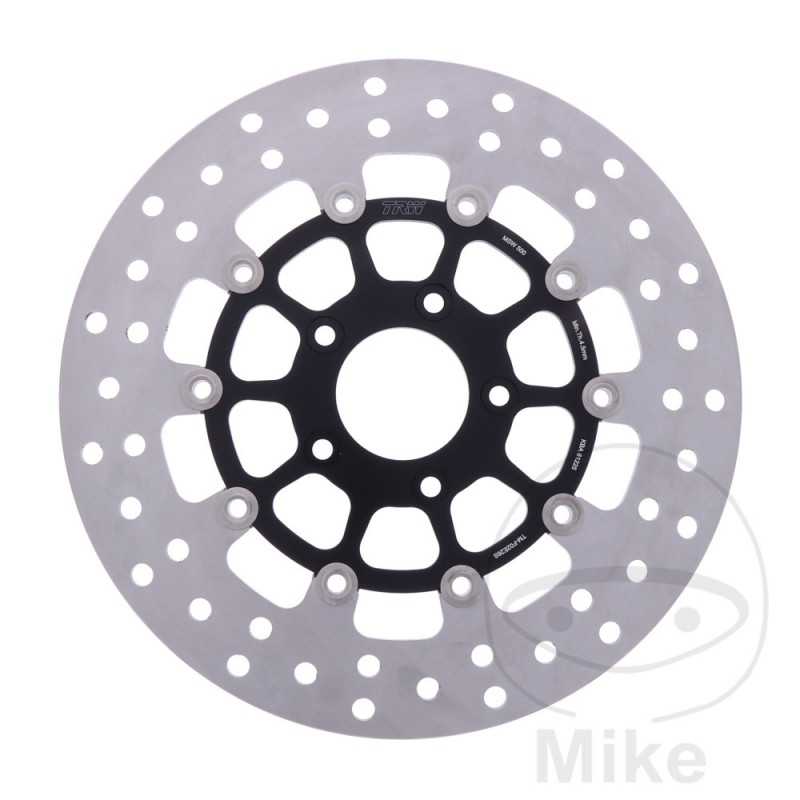

TRW Disco de freno flotante para moto 788.01.67

Todos los discos de freno tienen un ABE, también para scooters.

Los discos son de bajo desgaste y tienen hasta un 30% más de vida útil en comparación con algunos repuestos comparables.

Todas las variantes: discos todoterreno, RAC y EC offroad, fabricados en acero extremadamente dimensionalmente estable y endurecido.

El pulido superficial preciso (desviación de espesor de 2/100 mm) evita vibraciones y mejora la adaptación de las almohadillas.

Un aumento y disminución uniforme de la temperatura permite un punto de presión constante.

Los discos de freno flotantes tienen anillos internos de aluminio anodizado color titanio.

Las ventanas flotantes no traquetean, porque los flotadores de acero inoxidable de alta calidad se mantienen en tensión con los discos corrugados.

Una nueva aleación especial evita la corrosión excesiva.

La tecnología láser permite un diseño ligero con contornos finos.

Cada disco de freno puede accionarse individualmente con pastillas de freno de la gama TRW-Lucas.

Disco de freno flotante TRW-Lucas Allround

- Contorno exterior redondo con borde de frenado perforado.

- En variantes rígidas y flotantes.

- Diseño coordinado de eje delantero a trasero.
DIÁMETRO EXTERIOR: 292 MM
DIÁMETRO INTERIOR: 56.4 MM
MEDÍDA CÍRCULO: 82.7 MM
CANTIDAD AGUJEROS: 5
DIÁMETRO AGUJERO: 8.7 MM
Grosor: 5 mm
VERSIÓN: FLOTANTE


APLICACIONES DE ESTE PRODUCTO:
Según los datos que nos ha proporcionado el fabricante, este artículo es compatible con las siguientes marcas, modelos y años:
Harley Davidson FLHR 1450 Electra Glide Road King 34 CV, 25 kw 2cil. FDV FL1 Bastidores: --- 2000-2001
Harley Davidson FLHR 1450 Electra Glide Road King 34 CV, 25 kw 2cil. FDV FLT Bastidores: --- 1999
Harley Davidson FLHR 1450 Electra Glide Road King 67 CV, 49 kw 2cil. FDV FL1 Bastidores: --- 2000-2001
Harley Davidson FLHR 1450 Electra Glide Road King 68 CV, 50 kw 2cil. FDV FLT Bastidores: --- 1999
Harley Davidson FLHR 1450 Road King 34 CV, 25 kw 2cil. FDV FL1 Bastidores: --- 2002-2003
Harley Davidson FLHR 1450 Road King 67 CV, 49 kw 2cil. FDV FL1 Bastidores: --- 2002-2003
Harley Davidson FLHR 1584 Road King 78 CV, 57 kw 2cil. FB4 FL1 Bastidores: --- 2007
Harley Davidson FLHRC 1584 Road King Classic 78 CV, 57 kw 2cil. FR4 FL1 Bastidores: --- 2007
Harley Davidson FLHRCI 1450 EFI Electra Glide Road King Classic 67 CV, 49 kw 2cil. FRW FL1 Bastidores: --- 1999-2001
Harley Davidson FLHRCI 1450 EFI Road King Classic 33 CV, 24 kw 2cil. FRW FL1 Bastidores: --- 2003
Harley Davidson FLHRCI 1450 EFI Road King Classic 34 CV, 25 kw 2cil. FRW FL1 Bastidores: --- 2004-2005
Harley Davidson FLHRCI 1450 EFI Road King Classic 67 CV, 49 kw 2cil. FRW FL1 Bastidores: --- 2002
Harley Davidson FLHRCI 1450 EFI Road King Classic 68 CV, 50 kw 2cil. FRW FL1 Bastidores: --- 2003
Harley Davidson FLHRCI 1450 EFI Road King Classic 71 CV, 52 kw 2cil. FRW FL1 Bastidores: --- 2004-2006
Harley Davidson FLHRI 1450 EFI Road King 34 CV, 25 kw 2cil. FBW FL1 Bastidores: --- 2004-2005
Harley Davidson FLHRI 1450 EFI Road King 71 CV, 52 kw 2cil. FBW FL1 Bastidores: --- 2004-2006
Harley Davidson FLHRSI 1450 EFI Road King Custom 34 CV, 25 kw 2cil. FYW FL1 Bastidores: --- 2005
Harley Davidson FLHRSI 1450 EFI Road King Custom 71 CV, 52 kw 2cil. FYW FL1 Bastidores: --- 2004-2006
Harley Davidson FLHT 1450 Electra Glide Standard 34 CV, 25 kw 2cil. DDV FL1 Bastidores: --- 2000-2003
Harley Davidson FLHT 1450 Electra Glide Standard 34 CV, 25 kw 2cil. DDV FLT Bastidores: --- 1999
Harley Davidson FLHT 1450 Electra Glide Standard 67 CV, 49 kw 2cil. DDV FL1 Bastidores: --- 2000-2003
Harley Davidson FLHT 1450 Electra Glide Standard 68 CV, 50 kw 2cil. DDV FLT Bastidores: --- 1999
Harley Davidson FLHT 1584 Electra Glide Standard 78 CV, 57 kw 2cil. FV4 FL1 Bastidores: --- 2007
Harley Davidson FLHTCU 1584 Ultra Classic Electra Glide 78 CV, 57 kw 2cil. FC4 FL1 Bastidores: --- 2007
Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic 33 CV, 24 kw 2cil. FCW FL1 Bastidores: --- 2003
Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic 34 CV, 25 kw 2cil. FCW FL1 Bastidores: --- 2004-2005
Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic 67 CV, 49 kw 2cil. FCW FL1 Bastidores: --- 2000-2002
Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic 67 CV, 49 kw 2cil. FCW FLT Bastidores: --- 1999
Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic 68 CV, 50 kw 2cil. FCW FL1 Bastidores: --- 2003
Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic 71 CV, 52 kw 2cil. FCW FL1 Bastidores: --- 2004-2006
Harley Davidson FLHTI 1450 EFI Electra Glide Standard 34 CV, 25 kw 2cil. FVW FL1 Bastidores: --- 2004-2005
Harley Davidson FLHTI 1450 EFI Electra Glide Standard 71 CV, 52 kw 2cil. FVW FL1 Bastidores: --- 2004-2006
Harley Davidson FLHX 1584 Street Glide 78 CV, 57 kw 2cil. KB4 FL1 Bastidores: --- 2007
Harley Davidson FLS 1690 Softail Slim ABS 79 CV, 58 kw 2cil. JRV FS2 Bastidores: --- 2012-2013
Harley Davidson FLSTC 1450 Heritage Softail Classic 34 CV, 25 kw 2cil. BJY Bastidores: --- 2000-2003
Harley Davidson FLSTC 1450 Heritage Softail Classic 63 CV, 46 kw 2cil. BJY Bastidores: --- 2000-2003
Harley Davidson FLSTC 1584 Heritage Softail Classic 30 CV, 22 kw 2cil. BW5 FS2 Bastidores: --- 2010
Harley Davidson FLSTC 1584 Heritage Softail Classic 31 CV, 23 kw 2cil. BW5 FS2 Bastidores: --- 2007-2009
Harley Davidson FLSTC 1584 Heritage Softail Classic 71 CV, 52 kw 2cil. BW5 FS2 Bastidores: --- 2007-2009
Harley Davidson FLSTC 1584 Heritage Softail Classic 73 CV, 54 kw 2cil. BW5 FS2 Bastidores: --- 2010
Harley Davidson FLSTC 1584 Heritage Softail Classic ABS 30 CV, 22 kw 2cil. BW5 FS2 Bastidores: --- 2011
Harley Davidson FLSTC 1584 Heritage Softail Classic ABS 73 CV, 54 kw 2cil. BW5 FS2 Bastidores: --- 2011
Harley Davidson FLSTC 1690 Heritage Softail Classic 75 CV, 55 kw 2cil. BWV FS2 Bastidores: --- 2012-2013
Harley Davidson FLSTCI 1450 EFI Heritage Softail Classic 33 CV, 24 kw 2cil. BWB FS2 Bastidores: --- 2004-2006
Harley Davidson FLSTCI 1450 EFI Heritage Softail Classic 64 CV, 47 kw 2cil. BWB FS2 Bastidores: --- 2001-2006
Harley Davidson FLSTF 1450 Fat Boy 34 CV, 25 kw 2cil. BMY Bastidores: --- 2000-2003
Harley Davidson FLSTF 1450 Fat Boy 63 CV, 46 kw 2cil. BMY Bastidores: --- 2000-2003
Harley Davidson FLSTF 1584 Softail Fat Boy 31 CV, 23 kw 2cil. BX5 FS2 Bastidores: --- 2010
Harley Davidson FLSTF 1584 Softail Fat Boy 33 CV, 24 kw 2cil. BX5 FS2 Bastidores: --- 2007-2009
Harley Davidson FLSTF 1584 Softail Fat Boy 73 CV, 54 kw 2cil. BX5 FS2 Bastidores: --- 2007-2009
Harley Davidson FLSTF 1584 Softail Fat Boy 76 CV, 56 kw 2cil. BX5 FS2 Bastidores: --- 2010
Harley Davidson FLSTF 1584 Softail Fat Boy ABS 31 CV, 23 kw 2cil. BX5 FS2 Bastidores: --- 2011
Harley Davidson FLSTF 1584 Softail Fat Boy ABS 76 CV, 56 kw 2cil. BX5 FS2 Bastidores: --- 2011
Harley Davidson FLSTF 1690 Softail Fat Boy ABS 79 CV, 58 kw 2cil. BXV FS2 Bastidores: --- 2012-2013
Harley Davidson FLSTFB 1584 Softail Fat Boy Special 31 CV, 23 kw 2cil. JN5 FS2 Bastidores: --- 2010
Harley Davidson FLSTFB 1584 Softail Fat Boy Special 76 CV, 56 kw 2cil. JN5 FS2 Bastidores: --- 2010
Harley Davidson FLSTFB 1584 Softail Fat Boy Special ABS 31 CV, 23 kw 2cil. JN5 FS2 Bastidores: --- 2011
Harley Davidson FLSTFB 1584 Softail Fat Boy Special ABS 76 CV, 56 kw 2cil. JN5 FS2 Bastidores: --- 2011
Harley Davidson FLSTFB 1690 Softail Fat Boy Special ABS 79 CV, 58 kw 2cil. JNV FS2 Bastidores: --- 2012-2013
Harley Davidson FLSTFI 1450 EFI Fat Boy 33 CV, 24 kw 2cil. BXB FS2 Bastidores: --- 2004-2006
Harley Davidson FLSTFI 1450 EFI Fat Boy 64 CV, 47 kw 2cil. BXB Bastidores: --- 2001-2003
Harley Davidson FLSTFI 1450 EFI Fat Boy 64 CV, 47 kw 2cil. BXB FS2 Bastidores: --- 2004-2006
Harley Davidson FLSTN 1584 Softail Deluxe 33 CV, 24 kw 2cil. JD5 FS2 Bastidores: --- 2007-2008
Harley Davidson FLSTN 1584 Softail Deluxe 73 CV, 54 kw 2cil. JD5 FS2 Bastidores: --- 2007-2008
Harley Davidson FLSTN 1584 Softail Deluxe ABS 31 CV, 23 kw 2cil. JD5 FS2 Bastidores: --- 2011
Harley Davidson FLSTN 1584 Softail Deluxe ABS 76 CV, 56 kw 2cil. JD5 FS2 Bastidores: --- 2011
Harley Davidson FLSTN 1690 Softail Deluxe ABS 79 CV, 58 kw 2cil. JDV FS2 Bastidores: --- 2012-2013
Harley Davidson FLSTNR 1584 Reaper Softail Deluxe 73/33 CV, 54/24 kw 2cil. - Bastidores: --- 2010
Harley Davidson FLSTS 1450 Heritage Springer 34 CV, 25 kw 2cil. BRY FS2 Bastidores: --- 2000-2002
Harley Davidson FLSTS 1450 Heritage Springer 67 CV, 49 kw 2cil. BRY FS2 Bastidores: --- 2000-2002
Harley Davidson FLSTS 1450 Heritage Springer 68 CV, 50 kw 2cil. BRY FS2 Bastidores: --- 2003
Harley Davidson FLSTSB 1584 Softail Cross Bones 31 CV, 23 kw 2cil. JM5 FS2 Bastidores: --- 2010-2011
Harley Davidson FLSTSB 1584 Softail Cross Bones 33 CV, 24 kw 2cil. JM5 FS2 Bastidores: --- 2008-2009
Harley Davidson FLSTSB 1584 Softail Cross Bones 73 CV, 54 kw 2cil. JM5 FS2 Bastidores: --- 2008-2009
Harley Davidson FLSTSB 1584 Softail Cross Bones 76 CV, 56 kw 2cil. JM5 FS2 Bastidores: --- 2010-2011
Harley Davidson FLTRI 1450 EFI Road Glide 67/34 CV, 49/25 kw 2cil. FSW Bastidores: --- 2000-2001
Harley Davidson FLTRI 1450 EFI Road Glide 68/34 CV, 50/25 kw 2cil. FSW Bastidores: --- 1999
Harley Davidson FXCW 1584 Softail Rocker 31 CV, 23 kw 2cil. JJ5 FS2 Bastidores: --- 2008-2009
Harley Davidson FXCW 1584 Softail Rocker 71 CV, 52 kw 2cil. JJ5 FS2 Bastidores: --- 2008-2009
Harley Davidson FXCWC 1584 C Softail Rocker C 30 CV, 22 kw 2cil. JK5 FS2 Bastidores: --- 2010
Harley Davidson FXCWC 1584 C Softail Rocker C 31 CV, 23 kw 2cil. JK5 FS2 Bastidores: --- 2008-2009
Harley Davidson FXCWC 1584 C Softail Rocker C 71 CV, 52 kw 2cil. JK5 FS2 Bastidores: --- 2008-2009
Harley Davidson FXCWC 1584 C Softail Rocker C 73 CV, 54 kw 2cil. JK5 FS2 Bastidores: --- 2010
Harley Davidson FXCWC 1584 C Softail Rocker C ABS 30 CV, 22 kw 2cil. JK5 FS2 Bastidores: --- 2011
Harley Davidson FXCWC 1584 C Softail Rocker C ABS 73 CV, 54 kw 2cil. JK5 FS2 Bastidores: --- 2011
Harley Davidson FXD 1450 Dyna Super Glide 34 CV, 25 kw 2cil. GHV FD1 Bastidores: --- 2000-2003
Harley Davidson FXD 1450 Dyna Super Glide 34 CV, 25 kw 2cil. GHV FXD Bastidores: --- 1999
Harley Davidson FXD 1450 Dyna Super Glide 68 CV, 50 kw 2cil. GHV FD1 Bastidores: --- 2000-2003
Harley Davidson FXD 1450 Dyna Super Glide 68 CV, 50 kw 2cil. GHV FXD Bastidores: --- 1999
Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom 34 CV, 25 kw 2cil. GV1 FD2 Bastidores: --- 2006
Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom 34 CV, 25 kw 2cil. GVW FD2 Bastidores: --- 2005
Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom 67 CV, 49 kw 2cil. GVW FD2 Bastidores: --- 2005
Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom 73 CV, 54 kw 2cil. GV1 FD2 Bastidores: --- 2006
Harley Davidson FXDI 1450 EFI Dyna Super Glide 34 CV, 25 kw 2cil. GMW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDI 1450 EFI Dyna Super Glide 67 CV, 49 kw 2cil. GMW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDL 1450 Dyna Low Rider 34 CV, 25 kw 2cil. GDV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDL 1450 Dyna Low Rider 34 CV, 25 kw 2cil. GDV FXD Bastidores: --- 1999
Harley Davidson FXDL 1450 Dyna Low Rider 68 CV, 50 kw 2cil. GDV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDL 1450 Dyna Low Rider 68 CV, 50 kw 2cil. GDV FXD Bastidores: --- 1999
Harley Davidson FXDLI 1450 EFI Dyna Low Rider 34 CV, 25 kw 2cil. GN1 FD2 Bastidores: --- 2006
Harley Davidson FXDLI 1450 EFI Dyna Low Rider 34 CV, 25 kw 2cil. GNW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDLI 1450 EFI Dyna Low Rider 67 CV, 49 kw 2cil. GNW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDLI 1450 EFI Dyna Low Rider 73 CV, 54 kw 2cil. GN1 FD2 Bastidores: --- 2006
Harley Davidson FXDWG 1450 Dyna Wide Glide 34 CV, 25 kw 2cil. GEV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDWG 1450 Dyna Wide Glide 34 CV, 25 kw 2cil. GEV FXD Bastidores: --- 1999
Harley Davidson FXDWG 1450 Dyna Wide Glide 68 CV, 50 kw 2cil. GEV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDWG 1450 Dyna Wide Glide 68 CV, 50 kw 2cil. GEV FXD Bastidores: --- 1999
Harley Davidson FXDX 1450 Dyna Super Glide Sport 34 CV, 25 kw 2cil. GJV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDX 1450 Dyna Super Glide Sport 34 CV, 25 kw 2cil. GJV FXD Bastidores: --- 1999
Harley Davidson FXDX 1450 Dyna Super Glide Sport 68 CV, 50 kw 2cil. GJV FD1 Bastidores: --- 2000-2003
Harley Davidson FXDX 1450 Dyna Super Glide Sport 68 CV, 50 kw 2cil. GJV FXD Bastidores: --- 1999
Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport 34 CV, 25 kw 2cil. GRW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport 67 CV, 49 kw 2cil. GRW FD1 Bastidores: --- 2004-2005
Harley Davidson FXDXT 1450 Dyna Super Glide Tour Sport 34 CV, 25 kw 2cil. GLV FD1 Bastidores: --- 2001-2003
Harley Davidson FXDXT 1450 Dyna Super Glide Tour Sport 68 CV, 50 kw 2cil. GLV FD1 Bastidores: --- 2001-2003
Harley Davidson FXS 1584 Softail Blackline 76 CV, 56 kw 2cil. JP5 FS2 Bastidores: --- 2011
Harley Davidson FXS 1584 Softail Blackline ABS 34 CV, 25 kw 2cil. JP5 FS2 Bastidores: --- 2012
Harley Davidson FXS 1584 Softail Blackline ABS 76 CV, 56 kw 2cil. JP5 FS2 Bastidores: --- 2012
Harley Davidson FXST 1450 Softail Standard 34 CV, 25 kw 2cil. BHY FS2 Bastidores: --- 2000-2003
Harley Davidson FXST 1450 Softail Standard 63 CV, 46 kw 2cil. BHY FS2 Bastidores: --- 2000-2003
Harley Davidson FXSTB 1450 Night Train 34 CV, 25 kw 2cil. BTY FS2 Bastidores: --- 2000-2004
Harley Davidson FXSTB 1450 Night Train 63 CV, 46 kw 2cil. BTY FS2 Bastidores: --- 2000-2004
Harley Davidson FXSTB 1584 Softail Night Train 31 CV, 23 kw 2cil. JA5 FS2 Bastidores: --- 2007-2009
Harley Davidson FXSTB 1584 Softail Night Train 71 CV, 52 kw 2cil. JA5 FS2 Bastidores: --- 2007-2009
Harley Davidson FXSTBI 1450 EFI Night Train 33 CV, 24 kw 2cil. JAB Bastidores: --- 2004-2006
Harley Davidson FXSTBI 1450 EFI Night Train 64 CV, 47 kw 2cil. JAB Bastidores: --- 2004-2006
Harley Davidson FXSTBIC 1450 EFI Night Creeper 71 CV, 52 kw 2cil. - Bastidores: --- 2006
Harley Davidson FXSTBIC 1584 Softail Night Creeper 71 CV, 52 kw 2cil. - Bastidores: --- 2007-2008
Harley Davidson FXSTD 1450 Softail Deuce 34 CV, 25 kw 2cil. BSY FS2 Bastidores: --- 2000-2003
Harley Davidson FXSTD 1450 Softail Deuce 63 CV, 46 kw 2cil. BSY FS2 Bastidores: --- 2000-2003
Harley Davidson FXSTDI 1450 EFI Softail Deuce 33 CV, 24 kw 2cil. JBB Bastidores: --- 2004
Harley Davidson FXSTDI 1450 EFI Softail Deuce 64 CV, 47 kw 2cil. JBB Bastidores: --- 2001-2004
Harley Davidson XL 1200 C Sportster Custom 34 CV, 25 kw 2cil. CT3 XL2 Bastidores: --- 2007-2013
Harley Davidson XL 1200 C Sportster Custom 58 CV, 43 kw 2cil. CGP XL1 Bastidores: --- 2003
Harley Davidson XL 1200 C Sportster Custom 67 CV, 49 kw 2cil. CGP XL2 Bastidores: --- 2004-2006
Harley Davidson XL 1200 C Sportster Custom 67 CV, 49 kw 2cil. CT3 XL2 Bastidores: --- 2007-2013
Harley Davidson XL 1200 CA Sportster Custom Limited Edition A 34 CV, 25 kw 2cil. LJ3 XL2 Bastidores: --- 2013
Harley Davidson XL 1200 CA Sportster Custom Limited Edition A 67 CV, 49 kw 2cil. LJ3 XL2 Bastidores: --- 2013
Harley Davidson XL 1200 CB Sportster Custom Limited Edition B 34 CV, 25 kw 2cil. LK3 XL2 Bastidores: --- 2013
Harley Davidson XL 1200 CB Sportster Custom Limited Edition B 67 CV, 49 kw 2cil. LK3 XL2 Bastidores: --- 2013
Harley Davidson XL 1200 L Sportster Low 34 CV, 25 kw 2cil. CX3 XL2 Bastidores: --- 2007-2009
Harley Davidson XL 1200 L Sportster Low 67 CV, 49 kw 2cil. CX3 XL2 Bastidores: --- 2007-2009
Harley Davidson XL 1200 N Sportster Nightster 34 CV, 25 kw 2cil. CZ3 XL2 Bastidores: --- 2008-2012
Harley Davidson XL 1200 N Sportster Nightster 67 CV, 49 kw 2cil. CZ3 XL2 Bastidores: --- 2008-2012
Harley Davidson XL 1200 R Sportster Roadster 34 CV, 25 kw 2cil. CV3 XL2 Bastidores: --- 2007-2008
Harley Davidson XL 1200 R Sportster Roadster 67 CV, 49 kw 2cil. CLP XL2 Bastidores: --- 2004-2006
Harley Davidson XL 1200 R Sportster Roadster 67 CV, 49 kw 2cil. CV3 XL2 Bastidores: --- 2007-2008
Harley Davidson XL 1200 S Sportster Sport 61 CV, 45 kw 2cil. CHP XL1 Bastidores: --- 1999-2002
Harley Davidson XL 1200 X Sportster Forty Eight 34 CV, 25 kw 2cil. LC3 XL2 Bastidores: --- 2010-2013
Harley Davidson XL 1200 X Sportster Forty Eight 67 CV, 49 kw 2cil. LC3 XL2 Bastidores: --- 2010-2013
Harley Davidson XL 53 883 C Sportster Custom 34 CV, 25 kw 2cil. CJM XL1 Bastidores: --- 2000
Harley Davidson XL 53 883 C Sportster Custom 50 CV, 37 kw 2cil. CJM XL1 Bastidores: --- 2000
Harley Davidson XL 883 C Sportster Custom 34 CV, 25 kw 2cil. CJM XL2 Bastidores: --- 2005-2006
Harley Davidson XL 883 C Sportster Custom 34 CV, 25 kw 2cil. CP2 XL2 Bastidores: --- 2007-2010
Harley Davidson XL 883 C Sportster Custom 53 CV, 39 kw 2cil. CP2 XL2 Bastidores: --- 2007-2010
Harley Davidson XL 883 C Sportster Custom 54 CV, 40 kw 2cil. CJM XL2 Bastidores: --- 2005-2006
Harley Davidson XL 883 L Sportster Low 34 CV, 25 kw 2cil. CR2 XL2 Bastidores: --- 2007-2010
Harley Davidson XL 883 L Sportster Low 53 CV, 39 kw 2cil. CR2 XL2 Bastidores: --- 2007-2010
Harley Davidson XL 883 L Sportster Super Low 34 CV, 25 kw 2cil. CR2 XL2 Bastidores: --- 2011-2012
Harley Davidson XL 883 L Sportster Super Low 45 CV, 33 kw 2cil. CR2 XL2 Bastidores: --- 2013
Harley Davidson XL 883 L Sportster Super Low 53 CV, 39 kw 2cil. CR2 XL2 Bastidores: --- 2011-2013
Harley Davidson XL 883 N Sportster Iron 34 CV, 25 kw 2cil. LE2 XL2 Bastidores: --- 2009-2012
Harley Davidson XL 883 N Sportster Iron 45 CV, 33 kw 2cil. LE2 XL2 Bastidores: --- 2013
Harley Davidson XL 883 N Sportster Iron 53 CV, 39 kw 2cil. LE2 XL2 Bastidores: --- 2009-2013
Harley Davidson XL 883 R Sportster 33 CV, 24 kw 2cil. CKM XL1 Bastidores: --- 2002-2003
Harley Davidson XL 883 R Sportster 53 CV, 39 kw 2cil. CKM XL1 Bastidores: --- 2002-2003
Harley Davidson XL 883 R Sportster Roadster 34 CV, 25 kw 2cil. CS2 XL2 Bastidores: --- 2010-2012
Harley Davidson XL 883 R Sportster Roadster 45 CV, 33 kw 2cil. CS2 XL2 Bastidores: --- 2013
Harley Davidson XL 883 R Sportster Roadster 53 CV, 39 kw 2cil. CS2 XL2 Bastidores: --- 2010-2013
Harley Davidson XLH 883 Sportster 32 CV, 24 kw 2cil. CAM XL/2 Bastidores: --- 1999
Harley Davidson XLH 883 Sportster 33 CV, 24 kw 2cil. CAM XL1 Bastidores: --- 2001-2003
Harley Davidson XLH 883 Sportster 34 CV, 25 kw 2cil. CAM XL1 Bastidores: --- 2000
Harley Davidson XLH 883 Sportster 50 CV, 37 kw 2cil. CAM XL/2 Bastidores: --- 1999
Harley Davidson XLH 883 Sportster 50 CV, 37 kw 2cil. CAM XL1 Bastidores: --- 2000
Harley Davidson XLH 883 Sportster 53 CV, 39 kw 2cil. CAM XL1 Bastidores: --- 2001-2003
Harley Davidson XLH 883 Sportster Hugger 33 CV, 24 kw 2cil. CEM XL1 Bastidores: --- 2001-2003
Harley Davidson XLH 883 Sportster Hugger 34 CV, 25 kw 2cil. CEM XL1 Bastidores: --- 2000
Harley Davidson XLH 883 Sportster Hugger 50 CV, 37 kw 2cil. CEM XL1 Bastidores: --- 2000
Harley Davidson XLH 883 Sportster Hugger 53 CV, 39 kw 2cil. CEM XL1 Bastidores: --- 2001-2003
