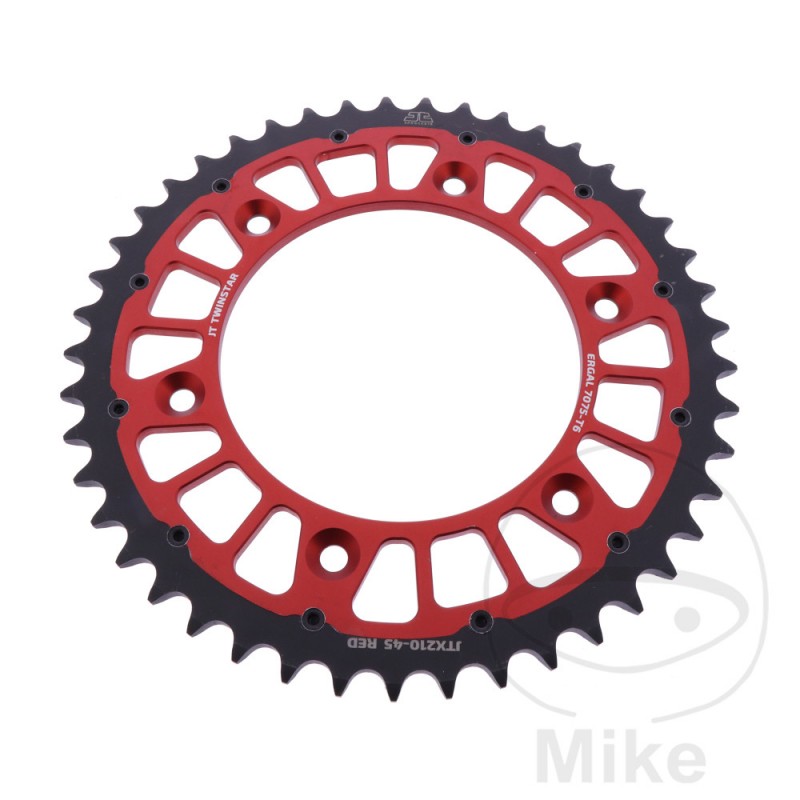

JT SPROCKETS Corona plato transmisión 45T P-520 Ø125 MM Ø153 TWINSTAR 7582482

JT Twinstar - Piñón Híbrido Acero/Aluminio .

Los piñones JT Twinstar están fabricados con una combinación de acero duradero y aluminio ligero.

El círculo interior fabricado con la aleación especial de aluminio tiene unas 11 veces la resistencia del aluminio puro, por lo que casi alcanza la resistencia del acero.

La cadena se desplaza sobre el piñón de acero. El resultado es una combinación perfecta de ahorro de peso y mayor tiempo de funcionamiento.

La experiencia demuestra que los piñones JT Twinstar duran unas tres veces más que los piñones de aluminio puro y son un 50% más ligeros que los piñones de acero.

Los piñones JT Twinstar se encuentran entre los piñones de mayor calidad y técnicamente más avanzados del mundo.
DIVISIÓN: 520
DIÁMETRO INTERIOR: 125 MM
MEDÍDA CÍRCULO: 153 MM
AGUJERO: 8.5 MM
CANTIDAD AGUJEROS: 6
TIPO DE TORNILLO: CABEZA AVELLANADA
CANT. DIENTES: 45
TIPO DE CORONA: TWINSTAR


APLICACIONES DE ESTE PRODUCTO:
Según los datos que nos ha proporcionado el fabricante, este artículo es compatible con las siguientes marcas, modelos y años:
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 5 Bastidores: ZENF250NEC0500001-ZENF250NEC0599999 2005
COMPATIBLE CONHM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 6 Bastidores: ZENF250NEC0600001-ZENF250NEC0699999 2006
COMPATIBLE CONHM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 7 Bastidores: ZENF250NEC0700001-- 2007
COMPATIBLE CONHM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 8 Bastidores: ZENF250NEC0800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 8 Bastidores: ZENH250REC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 9 Bastidores: ZENH250REC8900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 9 Bastidores: ZENH250REC9900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 250 R ie 13 CV, 9,5 kw 1cil. J2500EC 12 Bastidores: ZENFJ2500EC200001-ZENFJ2500EC299999 2012
COMPATIBLE CONHM-Moto CRE-F 250 R ie 13 CV, 9,5 kw 1cil. J2500ED 13 Bastidores: ZENFJ2500ED300001-ZENFJ2500ED399999 2013
COMPATIBLE CONHM-Moto CRE-F 250 R ie 44,1 CV, 32,4 kw 1cil. H250REC A Bastidores: ZENH250REC0100001-- 2010
COMPATIBLE CONHM-Moto CRE-F 250 R ie 44,1 CV, 32,4 kw 1cil. H250REC B Bastidores: ZENH250REC1100001-- 2011
COMPATIBLE CONHM-Moto CRE-F 250 X 1cil. F250XEC 4 Bastidores: ZENF250XEC0400001-ZENF250XEC0499999 2004
COMPATIBLE CONHM-Moto CRE-F 250 X 1cil. F250XEC 5 Bastidores: ZENF250XEC0500001-ZENF250XEC0599999 2005
COMPATIBLE CONHM-Moto CRE-F 250 X 1cil. F250XEC 6 Bastidores: ZENF250XEC0600001-ZENF250XEC0699999 2006
COMPATIBLE CONHM-Moto CRE-F 250 X 1cil. F250XEC 7 Bastidores: ZENF250XEC0700001-ZENF250XEC0799999 2007
COMPATIBLE CONHM-Moto CRE-F 250 X 1cil. F250XEC 8 Bastidores: ZENF250XEC0800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 250 X 1cil. H250XEC 8 Bastidores: ZENH250XEC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 8 Bastidores: ZENH250XEC8900001-ZENH250XEC8999999 2008
COMPATIBLE CONHM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9000001-- 2009
COMPATIBLE CONHM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC A Bastidores: ZENH250XEC9900001-- 2010
COMPATIBLE CONHM-Moto CRE-F 250 X ie 1cil. F25XJEC 7 Bastidores: ZENF25XJEC0700001-ZENF25XJEC0799999 2007
COMPATIBLE CONHM-Moto CRE-F 250 X ie 1cil. F25XJEC 8 Bastidores: ZENF25XJEC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 290 X ie 1cil. F29XJEC 7 Bastidores: ZENF29XJEC0700001-ZENF29XJEC0799999 2007
COMPATIBLE CONHM-Moto CRE-F 290 X ie 1cil. F29XJEC 8 Bastidores: ZENF29XJEC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 300 R ie 20,4 CV, 15 kw 1cil. FJ3000EC 12 Bastidores: ZENFJ3000EC200001-ZENFJ3000EC299999 2012
COMPATIBLE CONHM-Moto CRE-F 300 R ie 20,4 CV, 15 kw 1cil. FJ3000ED 13 Bastidores: ZENFJ3000ED300001-ZENFJ3000ED399999 2013
COMPATIBLE CONHM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 8 Bastidores: ZENH290XEC8800001-ZENH290XEC8899999 2008
COMPATIBLE CONHM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC8900001-ZENH290XEC8999999 2009
COMPATIBLE CONHM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC9900001-- 2009-2010
COMPATIBLE CONHM-Moto CRE-F 450 R 1cil. F450C0PE 5 Bastidores: ZENF450C0PE500001-ZENF450C0PE599999 2005
COMPATIBLE CONHM-Moto CRE-F 450 R 1cil. F450C0PE 6 Bastidores: ZENF450C0PE600001-ZENF450C0PE699999 2006
COMPATIBLE CONHM-Moto CRE-F 450 R 1cil. F450C0PE 7 Bastidores: ZENF450C0PE700001-- 2007
COMPATIBLE CONHM-Moto CRE-F 450 R 1cil. F450RMC 8 Bastidores: ZENF450RMC0800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 450 R 1cil. F450RMC 8 Bastidores: ZENH450RMC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 450 R ie 55,1/21,8 CV, 40,5/16 kw 1cil. FJ4500EB Bastidores: ZENFJ4500EB200001-- 2012
COMPATIBLE CONHM-Moto CRE-F 450 R ie 55,1/21,8 CV, 40,5/16 kw 1cil. FJ450EC 9 Bastidores: ZENFJ450EC8900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 450 R ie 55,1/21,8 CV, 40,5/16 kw 1cil. FJ450EC A Bastidores: ZENFJ450EC9000001-- 2010
COMPATIBLE CONHM-Moto CRE-F 450 R ie 55,1/21,8 CV, 40,5/16 kw 1cil. FJ450EC B Bastidores: ZENFJ450EC1100001-- 2011
COMPATIBLE CONHM-Moto CRE-F 450 R ie 55,1/21,8 CV, 40,5/16 kw 1cil. FJD450ED Bastidores: ZENFJD450ED300001-- 2013
COMPATIBLE CONHM-Moto CRE-F 450 X 1cil. H450XEC 9 Bastidores: ZENH450XEC9900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 450 X 45,1/25,8 CV, 33,2/19 kw 1cil. - A Bastidores: --- 2010
COMPATIBLE CONHM-Moto CRE-F 450 X 45,1/25,8 CV, 33,2/19 kw 1cil. - B Bastidores: --- 2011
COMPATIBLE CONHM-Moto CRE-F 450 X 45,1/25,8 CV, 33,2/19 kw 1cil. - C Bastidores: --- 2012
COMPATIBLE CONHM-Moto CRE-F 450 X 45,1/25,8 CV, 33,2/19 kw 1cil. - D Bastidores: --- 2013
COMPATIBLE CONHM-Moto CRE-F 450 X ie 1cil. F45XJEC 7 Bastidores: ZENF45XJEC0700001-ZENF45XJEC0799999 2007
COMPATIBLE CONHM-Moto CRE-F 450 X ie 1cil. F45XJEC 8 Bastidores: ZENF49XJEC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 490 X ie 53 CV, 39 kw 1cil. F49XJEC 7 Bastidores: ZENF49XJEC0700001-ZENF49XJEC0799999 2007
COMPATIBLE CONHM-Moto CRE-F 490 X ie 53 CV, 39 kw 1cil. F49XJEC 8 Bastidores: ZENF49XJEC8800001-- 2008
COMPATIBLE CONHM-Moto CRE-F 500 R ie 56,4/22,5 CV, 41,5/16,5 kw 1cil. - C Bastidores: --- 2011-2012
COMPATIBLE CONHM-Moto CRE-F 500 R ie 56,4/22,5 CV, 41,5/16,5 kw 1cil. - D Bastidores: --- 2013
COMPATIBLE CONHM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 8 Bastidores: ZENH490XEC8800001-ZENH490XEC8899999 2008
COMPATIBLE CONHM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 9 Bastidores: ZENH490XEC8900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 9 Bastidores: ZENH490XEC9900001-- 2009
COMPATIBLE CONHM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC A Bastidores: ZENH490XEC9000001-- 2010
COMPATIBLE CONHM-Moto CRM 500 X 1cil. H490XMC 9 Bastidores: ZENH490XMC9900001-ZENH490XMC9999999 2009
COMPATIBLE CONHM-Moto CRM 500 X 1cil. H490XMC A Bastidores: ZENH490XMC9000001-- 2010
COMPATIBLE CONHM-Moto CRM-F 450 R ie 55,1/22,5 CV, 40,5/16,5 kw 1cil. FJ450MB C Bastidores: ZENFJ450MB200001-- 2012
COMPATIBLE CONHM-Moto CRM-F 450 R ie 55,1/22,5 CV, 40,5/16,5 kw 1cil. FJ450MC 9 Bastidores: ZENFJ450MC8900001-- 2009
COMPATIBLE CONHM-Moto CRM-F 450 R ie 55,1/22,5 CV, 40,5/16,5 kw 1cil. FJ450MC A Bastidores: ZENFJ450MC9000001-- 2010
COMPATIBLE CONHM-Moto CRM-F 450 R ie 55,1/22,5 CV, 40,5/16,5 kw 1cil. FJ450MC B Bastidores: ZENFJ450MC1100001-- 2011
COMPATIBLE CONHM-Moto CRM-F 450 R ie 55,1/22,5 CV, 40,5/16,5 kw 1cil. FJ450MD D Bastidores: ZENFJ450MD300001-- 2013
COMPATIBLE CONHM-Moto CRM-F 450 X 1cil. F450XMC 5 Bastidores: ZENF450XMC0500001-ZENF450XMC0599999 2005
COMPATIBLE CONHM-Moto CRM-F 450 X 1cil. F450XMC 6 Bastidores: ZENF450XMC0600001-ZENF450XMC0699999 2006
COMPATIBLE CONHM-Moto CRM-F 450 X 1cil. F450XMC 7 Bastidores: ZENF450XMC0700001-- 2007
COMPATIBLE CONHM-Moto CRM-F 450 X 1cil. F450XMC 8 Bastidores: ZENF450XMC0800001-- 2008
COMPATIBLE CONHM-Moto CRM-F 450 X 1cil. H450XMC 8 Bastidores: ZENH450XMC8800001-- 2008
COMPATIBLE CONHM-Moto CRM-F 450 X 45 CV, 33,2 kw 1cil. H450XMC 9 Bastidores: ZENH450XMC8900001-- 2009
COMPATIBLE CONHM-Moto CRM-F 450 X 45 CV, 33,2 kw 1cil. H450XMC 9 Bastidores: ZENH450XMC9900001-- 2009
COMPATIBLE CONHM-Moto CRM-F 450 X 49/22,5 CV, 36/16,5 kw 1cil. H450XMC A Bastidores: ZENH450XMC9000001-- 2010-2012
COMPATIBLE CONHM-Moto CRM-F 490 X ie 53 CV, 39 kw 1cil. F49XJMC 7 Bastidores: ZENF49XJMC0700001-ZENF49XJMC0799999 2007
COMPATIBLE CONHM-Moto CRM-F 490 X ie 53 CV, 39 kw 1cil. F49XJMC 8 Bastidores: ZENFJ49XJMC880001-- 2008
COMPATIBLE CONHonda CR 125 R 1cil. JE01 J Bastidores: JE01-5900001-JE01-5904696 1988
COMPATIBLE CONHonda CR 125 R 1cil. JE01 K Bastidores: JE01-5000001-- 1989
COMPATIBLE CONHonda CR 125 R 1cil. JE01 L Bastidores: JE01-5100531-JE01-5103518 1990
COMPATIBLE CONHonda CR 125 R 1cil. JE01 M Bastidores: JE01-5200661-JE01-5203405 1991
COMPATIBLE CONHonda CR 125 R 1cil. JE010 D Bastidores: JH2 JE010-DC400021-JH2 JE010-DC499999 1983
COMPATIBLE CONHonda CR 125 R 1cil. JE010 F Bastidores: JH2 JE010-FC600037-JH2 JE010-FC608930 1985
COMPATIBLE CONHonda CR 125 R 1cil. JE010 G Bastidores: JH2 JE010-GC700633-JH2 JE010-GC709727 1986
COMPATIBLE CONHonda CR 125 R 1cil. JE010 H Bastidores: JH2 JE010-HC800417-JH2 JE010-HC806957 1987
COMPATIBLE CONHonda CR 125 R 31 CV, 23 kw 1cil. JE010 E Bastidores: JH2 JE010-EC500001-JH2 JE010-EC508307 1984
COMPATIBLE CONHonda CR 125 R 35 CV, 25,5 kw 1cil. JE01 N Bastidores: JE01-5300001-JE01-5303393 1992
COMPATIBLE CONHonda CR 125 R 40 CV, 30 kw 1cil. JE01 P Bastidores: JE01-5400001-JE01-5404242 1993
COMPATIBLE CONHonda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
COMPATIBLE CONHonda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 1 Bastidores: JH2 JE01A-1M500001-- 2001
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 2 Bastidores: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 3 Bastidores: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 4 Bastidores: JH2 JE01A-4M800001-JH2 JE01A-4M899999 2004
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A W Bastidores: JE01A-WM200001-- 1998
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A X Bastidores: JE01A-XM300001-- 1999
COMPATIBLE CONHonda CR 125 R 41 CV, 30 kw 1cil. JE01A Y Bastidores: JH2 JE01A-YM400001-- 2000
COMPATIBLE CONHonda CR 125 R 42 CV, 31 kw 1cil. JE01A 5 Bastidores: JH2 JE01A-5M900001-JH2 JE01A-5M999999 2005
COMPATIBLE CONHonda CR 125 R 42 CV, 31 kw 1cil. JE01A 6 Bastidores: JH2 JE01A-6M000001-JH2 JE01A-6M099999 2006
COMPATIBLE CONHonda CR 125 R 42,6 CV, 31,3 kw 1cil. JE01A 7 Bastidores: JH2 JE01A-7M100001-- 2007
COMPATIBLE CONHonda CR 250 R 1cil. ME03 J Bastidores: ME03-2000002-ME03-2004982 1988
COMPATIBLE CONHonda CR 250 R 1cil. ME03 K Bastidores: ME03-2100001-- 1989
COMPATIBLE CONHonda CR 250 R 1cil. ME03 L Bastidores: ME03-2200001-ME03-2204309 1990
COMPATIBLE CONHonda CR 250 R 1cil. ME03 M Bastidores: ME03-2300001-ME03-2304645 1991
COMPATIBLE CONHonda CR 250 R 1cil. ME03 N Bastidores: ME03-2400001-ME03-2404384 1992
COMPATIBLE CONHonda CR 250 R 1cil. ME030 F Bastidores: JH2 ME030-FC700033-JH2 ME030-FC708919 1985
COMPATIBLE CONHonda CR 250 R 1cil. ME030 G Bastidores: JH2 ME030-GC800331-JH2 ME030-GC808877 1986
COMPATIBLE CONHonda CR 250 R 1cil. ME030 H Bastidores: JH2 ME030-HC900796-JH2 ME030-HC906301 1987
COMPATIBLE CONHonda CR 250 R 43 CV, 31,5 kw 1cil. ME030 E Bastidores: JH2 ME030-EC600052-JH2 ME030-EC606921 1984
COMPATIBLE CONHonda CR 250 R 53 CV, 39 kw 1cil. ME03 P Bastidores: ME03-2500001-ME03-2904986 1993
COMPATIBLE CONHonda CR 250 R 54 CV, 40 kw 1cil. ME03 R Bastidores: ME03-5600001-ME03-5603588 1994
COMPATIBLE CONHonda CR 250 R 56 CV, 41 kw 1cil. ME03 S Bastidores: ME03-5700001-ME03-5702584 1995
COMPATIBLE CONHonda CR 250 R 56 CV, 41 kw 1cil. ME03A T Bastidores: JH2 ME03A-TM000001-- 1996
COMPATIBLE CONHonda CR 250 R 58 CV, 43 kw 1cil. ME03A 1 Bastidores: JH2 ME03A-1M500001-- 2001
COMPATIBLE CONHonda CR 250 R 58 CV, 43 kw 1cil. ME03A 2 Bastidores: JH2 ME03A-2M600001-JH2 ME03A-2M699999 2002
COMPATIBLE CONHonda CR 250 R 58 CV, 43 kw 1cil. ME03A V Bastidores: JH2 ME03A-VM100001-JH2 ME03A-VM103705 1997
COMPATIBLE CONHonda CR 250 R 58 CV, 43 kw 1cil. ME03A W Bastidores: JH2 ME03A-WM200001-- 1998
COMPATIBLE CONHonda CR 250 R 58 CV, 43 kw 1cil. ME03A X Bastidores: JH2 ME03A-XM300001-- 1999
COMPATIBLE CONHonda CR 250 R 58 CV, 43 kw 1cil. ME03A Y Bastidores: JH2 ME03A-YM400001-- 2000
COMPATIBLE CONHonda CR 250 R 59 CV, 43 kw 1cil. ME03A 3 Bastidores: JH2 ME03A-3M700001-JH2 ME03A-3M799999 2003
COMPATIBLE CONHonda CR 250 R 59 CV, 43 kw 1cil. ME03A 4 Bastidores: JH2 ME03A-4M800001-JH2 ME03A-4M899999 2004
COMPATIBLE CONHonda CR 250 R 59 CV, 43 kw 1cil. ME03A 5 Bastidores: JH2 ME03A-5M900001-JH2 ME03A-5M999999 2005
COMPATIBLE CONHonda CR 250 R 59 CV, 43 kw 1cil. ME03A 6 Bastidores: JH2 ME03A-6M000001-JH2 ME03A-6M099999 2006
COMPATIBLE CONHonda CR 250 R 59 CV, 43 kw 1cil. ME03A 7 Bastidores: JH2 ME03A-7M100001-- 2007
COMPATIBLE CONHonda CR 500 R 1cil. PE02 J Bastidores: PE02-5700001-PE02-5799999 1988
COMPATIBLE CONHonda CR 500 R 1cil. PE02 K Bastidores: PE02-5800001-PE02-5899999 1989
COMPATIBLE CONHonda CR 500 R 1cil. PE02 L Bastidores: PE02-5900808-PE02-5901182 1990
COMPATIBLE CONHonda CR 500 R 1cil. PE02 M Bastidores: PE02-5000455-PE02-5000569 1991
COMPATIBLE CONHonda CR 500 R 1cil. PE02 N Bastidores: PE02-5100001-PE02-5100615 1992
COMPATIBLE CONHonda CR 500 R 1cil. PE020 E Bastidores: JH2 PE020-EC300001-JH2 PE020-EC399999 1984
COMPATIBLE CONHonda CR 500 R 1cil. PE020 F Bastidores: JH2 PE020-FC400016-JH2 PE020-FC499999 1985
COMPATIBLE CONHonda CR 500 R 1cil. PE020 G Bastidores: JH2 PE020-GC500323-JH2 PE020-GC599999 1986
COMPATIBLE CONHonda CR 500 R 1cil. PE020 H Bastidores: JH2 PE020-HC600619-JH2 PE020-HC699999 1987
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02 P Bastidores: PE02-5200001-PE02-5200537 1993
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02 R Bastidores: PE02-5300001-PE02-5300488 1994
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02 S Bastidores: PE02-5400001-PE02-5400422 1995
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02A 1 Bastidores: JH2 PE02A-1M500001-- 2001
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02A T Bastidores: JH2 PE02A-TM000001-- 1996
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02A V Bastidores: JH2 PE02A-VM100001-- 1997
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02A W Bastidores: JH2 PE02A-WM200001-JH2 PE02A-WM200434 1998
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02A X Bastidores: JH2 PE02A-XM300001-JH2 PE02A-XM300460 1999
COMPATIBLE CONHonda CR 500 R 65 CV, 48 kw 1cil. PE02A Y Bastidores: JH2 PE02A-YM400001-- 2000
COMPATIBLE CONHonda CRF 150 F 1cil. - 3 Bastidores: --- 2003
COMPATIBLE CONHonda CRF 150 F 1cil. - 4 Bastidores: --- 2004
COMPATIBLE CONHonda CRF 150 F 1cil. - 5 Bastidores: --- 2005
COMPATIBLE CONHonda CRF 150 F 1cil. - 6 Bastidores: --- 2006
COMPATIBLE CONHonda CRF 150 F 1cil. - 7 Bastidores: --- 2007
COMPATIBLE CONHonda CRF 150 F 1cil. - 8 Bastidores: --- 2008
COMPATIBLE CONHonda CRF 150 F 1cil. - 9 Bastidores: --- 2009-2010
COMPATIBLE CONHonda CRF 150 F 1cil. - B Bastidores: --- 2011
COMPATIBLE CONHonda CRF 150 F 1cil. - C Bastidores: --- 2012
COMPATIBLE CONHonda CRF 150 F 1cil. - D Bastidores: --- 2013
COMPATIBLE CONHonda CRF 150 F 1cil. - E Bastidores: --- 2014
COMPATIBLE CONHonda CRF 150 F 1cil. - F Bastidores: --- 2015
COMPATIBLE CONHonda CRF 150 F 1cil. - G Bastidores: --- 2016
COMPATIBLE CONHonda CRF 150 R 17/14 pulgadas 22,6 CV, 16,6 kw 1cil. KE03A 7 Bastidores: JH2 KE03A-7K000001-JH2 KE03A-7K099999 2007
COMPATIBLE CONHonda CRF 150 R 17/14 pulgadas 22,6 CV, 16,6 kw 1cil. KE03A 8 Bastidores: JH2 KE03A-8K100001-JH2 KE03A-8K199999 2008
COMPATIBLE CONHonda CRF 150 R 17/14 pulgadas 22,6 CV, 16,6 kw 1cil. KE03A 9 Bastidores: JH2 KE03A-9K200001-JH2 KE03A-9K299999 2009-2011
COMPATIBLE CONHonda CRF 150 R 17/14 pulgadas 24 CV, 18 kw 1cil. KE03A C Bastidores: JH2 KE03A-CK300001-- 2012
COMPATIBLE CONHonda CRF 150 R 17/14 pulgadas 24 CV, 18 kw 1cil. KE03A D Bastidores: JH2 KE03A-DK400001-JH2 KE03A-DK499999 2013
COMPATIBLE CONHonda CRF 150 R 17/14 pulgadas 24 CV, 18 kw 1cil. KE03A E Bastidores: JH2 KE03A-EK500001-JH2 KE03A-EK599999 2014-2015
COMPATIBLE CONHonda CRF 230 F 19 CV, 14 kw 1cil. ME09 7 Bastidores: 9C2 ME099-7R900001-9C2 ME099-7R999999 2007
COMPATIBLE CONHonda CRF 230 F 19 CV, 14 kw 1cil. ME09A 8 Bastidores: 9C2 ME09A-8R900001-9C2 ME09A-8R999999 2008
COMPATIBLE CONHonda CRF 230 F 19 CV, 14 kw 1cil. ME09A 9 Bastidores: 9C2 ME09A-9R900001-- 2009
COMPATIBLE CONHonda CRF 230 F 19 CV, 14 kw 1cil. ME09U 3 Bastidores: 9C2 ME09U-3R700001-9C2 ME09U-3R799999 2003
COMPATIBLE CONHonda CRF 230 F 19 CV, 14 kw 1cil. ME09U 4 Bastidores: 9C2 ME09U-4R700001-9C2 ME09U-4R799999 2004
COMPATIBLE CONHonda CRF 230 F 19 CV, 14 kw 1cil. ME09U 5 Bastidores: 9C2 ME09U-5R700001-9C2 ME09U-5R799999 2005-2006
COMPATIBLE CONHonda CRF 250 R 1cil. ME12A J Bastidores: JH2 ME12A-JK000001-JH2 ME12A-JK099999 2018
COMPATIBLE CONHonda CRF 250 R 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
COMPATIBLE CONHonda CRF 250 R 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
COMPATIBLE CONHonda CRF 250 R 1cil. ME12A N Bastidores: JH2 ME12A-NK300001-JH2 ME12A-NK399999 2022
COMPATIBLE CONHonda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A D Bastidores: JH2 ME10A-DK900001-- 2013
COMPATIBLE CONHonda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A E Bastidores: JH2 ME10A-EK100001-JH2 ME10A-EK199999 2014
COMPATIBLE CONHonda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A F Bastidores: JH2 ME10A-FK200001-JH2 ME10A-FK299999 2015
COMPATIBLE CONHonda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A G Bastidores: JH2 ME10A-GK300001-JH2 ME10A-GK399999 2016
COMPATIBLE CONHonda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A H Bastidores: JH2 ME10A-HK400001-- 2017
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4K010001-JH2 ME10A-4K099999 2004
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4M000001-JH2 ME10A-4M009999 2004
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5K110001-JH2 ME10A-5K149999 2005
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M100001-JH2 ME10A-5M109999 2005
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M150001-JH2 ME10A-5M199999 2005
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6K210001-JH2 ME10A-6K219999 2006
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M200001-JH2 ME10A-6M209999 2006
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M230001-JH2 ME10A-6M239999 2006
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7K310001-JH2 ME10A-7K319999 2007
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M300001-JH2 ME10A-7M309999 2007
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M330001-JH2 ME10A-7M339999 2007
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8K410001-JH2 ME10A-8K419999 2008
COMPATIBLE CONHonda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8M400001-JH2 ME10A-8M409999 2008
COMPATIBLE CONHonda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A 9 Bastidores: JH2 ME10A-9K500001-- 2009
COMPATIBLE CONHonda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A B Bastidores: JH2 ME10A-BK700001-JH2 ME10A-BK799999 2011
COMPATIBLE CONHonda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A C Bastidores: JH2 ME10A-CK800001-JH2 ME10A-CK899999 2012
COMPATIBLE CONHonda CRF 250 R 44 CV, 32,4 kw 1cil. ME10A A Bastidores: JH2 ME10A-AK600001-JH2 ME10A-AK699999 2010
COMPATIBLE CONHonda CRF 250 R Red Moto 1cil. - Bastidores: --- 2020-2022
COMPATIBLE CONHonda CRF 250 RE 40 CV, 29,4 kw 1cil. - G Bastidores: --- 2016
COMPATIBLE CONHonda CRF 250 RE 40 CV, 29,4 kw 1cil. - H Bastidores: --- 2017
COMPATIBLE CONHonda CRF 250 RX 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
COMPATIBLE CONHonda CRF 250 RX 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
COMPATIBLE CONHonda CRF 250 RX 1cil. ME12A N Bastidores: JH2 ME12A-NK300001-JH2 ME12A-NK399999 2022
COMPATIBLE CONHonda CRF 250 RX Red Moto 1cil. - Bastidores: --- 2020-2022
COMPATIBLE CONHonda CRF 250 RX Red Moto Special 1cil. - Bastidores: --- 2021-2022
COMPATIBLE CONHonda CRF 250 X 1cil. ME11A 9 Bastidores: JH
