JT Sprockets Manufacturing es hoy la instalación de producción más grande y moderna para piñones y piñones en todo el mundo,
equipado, entre otros, con la última generación de máquinas de fabricación CNC.
JT Sprockets produce toda la gama de ruedas dentadas y ruedas dentadas para el mercado de accesorios y equipos originales.
Cada piñón y rueda dentada pasa por 25 etapas de producción, pasando por más de diez controles de calidad individuales para salir con éxito de la línea de producción.
JT Sprockets fabrica de la manera correcta: ¡torneado, fresado y taladrado! Esta es la única forma de lograr la más alta calidad con las tolerancias más bajas y el mejor perfil de los dientes.
Después del tratamiento térmico posterior, cada artículo se verifica a mano, por lo que establece nuevos estándares de calidad de JT Sprockets en la industria de las motocicletas.

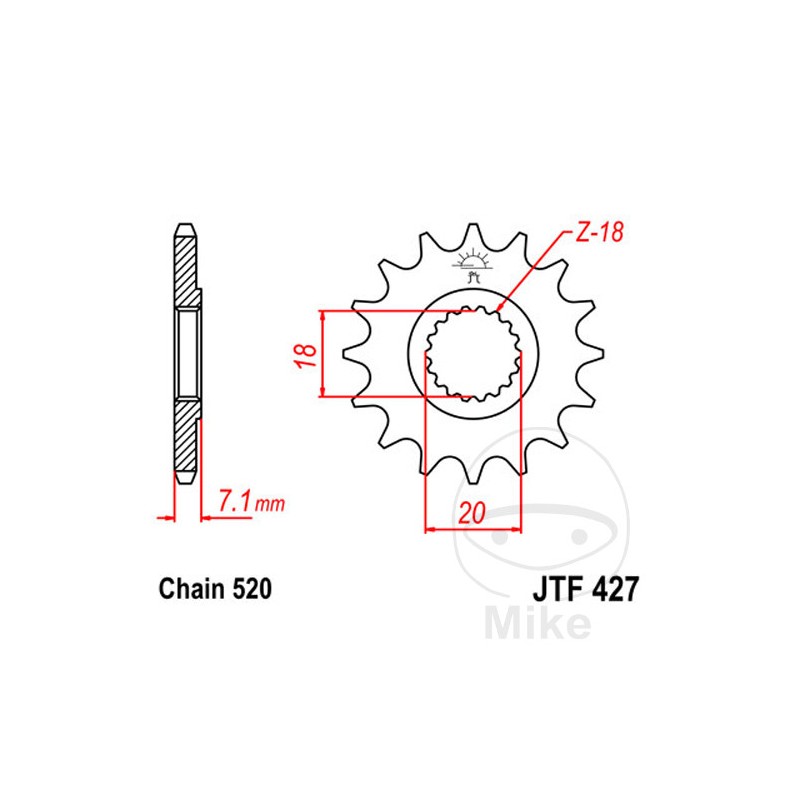

DIVISIÓN: 520
FIJACIÓN CENTRAL: ENGRANAJE FINO
DIÁMETRO INTERIOR MIN.: 18 MM
DIÁMETRO INTERIOR MAX.: 20 MM
ENGRANAJE INTERIOR (CANTIDAD DIENTES): 18
CANTIDAD AGUJEROS: SIN AGUJERO
ANCHURA: 7.1 MM
VERSIÓN: ESTÁNDAR
CANT. DIENTES: 14
APLICACIONES DE ESTE PRODUCTO:
Según los datos que nos ha proporcionado el fabricante, este artículo es compatible con las siguientes marcas, modelos y años:
Suzuki PE 175 24 CV, 18 kw 1cil. PE175 C Bastidores: PE175-100001-PE175-107289 1978
Suzuki PE 175 24 CV, 18 kw 1cil. PE175 N Bastidores: PE175-107290-- 1979
Suzuki PE 175 27,5 CV, 20,3 kw 1cil. PE175 T Bastidores: PE175-200030-PE175-201549 1980
Suzuki PE 175 27,5 CV, 20,3 kw 1cil. PE175 X Bastidores: PE175-201550-PE175-212208 1981
Suzuki PE 175 27,5 CV, 20,3 kw 1cil. PE175 Z Bastidores: PE175-212209-- 1982
Suzuki RM 125 1cil. RF11A D Bastidores: RF11A-100001-- 1983
Suzuki RM 125 1cil. RF13A G Bastidores: RF13A-100001-RF13A-103838 1986
Suzuki RM 125 1cil. RF13A H Bastidores: RF13A-103839-RF13A-105334 1987
Suzuki RM 125 27 CV, 19,9 kw 1cil. RM125 T Bastidores: RM125-102503-RM125-200000 1980
Suzuki RM 125 27 CV, 19,9 kw 1cil. RM125 X Bastidores: RM125-200001-RM125-285660 1981
Suzuki RM 125 27 CV, 19,9 kw 1cil. RM125 Z Bastidores: RM125-285661-- 1982
Suzuki RM 125 33,5 CV, 25 kw 1cil. RF12A E Bastidores: RF12A-E100001-- 1984
Suzuki RM 125 33,5 CV, 25 kw 1cil. RF12A F Bastidores: RF12A-F100001-- 1985
Suzuki RM 125 36 CV, 26 kw 1cil. RF13A J Bastidores: RF13A-105335-- 1988
Suzuki RM 125 36 CV, 26 kw 1cil. RF14A K Bastidores: RF14A-100001-RF14A-102530 1989
Suzuki RM 125 36 CV, 26 kw 1cil. RF14A L Bastidores: RF14A-102531-RF14A-104706 1990
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A M Bastidores: RF14A-104707-RF14A-107537 1991
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A N Bastidores: RF14A-107538-RF14A-110768 1992
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A P Bastidores: RF14A-110769-RF14A-113492 1993
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A R Bastidores: RF14A-113493-RF14A-115871 1994
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A S Bastidores: RF14A-115872-- 1995
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A T Bastidores: RF15A-100001-RF15A-101275 1996
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A V Bastidores: RF15A-101276-RF15A-102552 1997
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A W Bastidores: RF15A-102553-RF15A-104211 1998
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A X Bastidores: RF15A-104212-RF15A-106058 1999
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A Y Bastidores: RF15A-106059-- 2000
Suzuki RM 125 40 CV, 29 kw 1cil. RF16C K1 Bastidores: RF16C-12100001-- 2001
Suzuki RM 125 40 CV, 29 kw 1cil. RF16C K2 Bastidores: RF16C-22100001-- 2002
Suzuki RM 125 40 CV, 29 kw 1cil. RF16C K3 Bastidores: RF16C-32100001-- 2003
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16A K7 Bastidores: RF16A en adelante00502703-RF16A en adelante00503552 2007
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16A K8 Bastidores: RF16A en adelante00503553-- 2008-2012
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16C K4 Bastidores: RF16C-42100001-- 2004
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16C K5 Bastidores: RF16C-52100001-- 2005
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16C K6 Bastidores: RF16C-62100001-- 2006
Suzuki RM-Z 250 1cil. RJ41A K7 Bastidores: RJ41A en adelante00500001-RJ41A en adelante00503194 2007
Suzuki RM-Z 250 1cil. RJ41A K8 Bastidores: RJ41A en adelante00503195-RJ41A en adelante00506643 2008
Suzuki RM-Z 250 1cil. RJ41A K9 Bastidores: RJ41A en adelante00506644-RJ41A en adelante00599999 2009
Suzuki RM-Z 250 1cil. RJ42A L0 Bastidores: RJ42A en adelante00500001-RJ42A en adelante00502883 2010
Suzuki RM-Z 250 1cil. RJ42A L1 Bastidores: RJ42A en adelante00502884-RJ42A en adelante00506016 2011
Suzuki RM-Z 250 38 CV, 28 kw 1cil. RJ42A L2 Bastidores: RJ42A en adelante00506017-RJ42A en adelante00508329 2012
